4. Lift the unit 24" (610mm) off the top deck of the skid.
5. Remove the skid from under the unit.
6. To rotate the unit, a mechanized method is recommended, but if one is not available, use a minimum of four
properly-protected individuals to rotate the elevated unit 90 degrees so the unit legs are pointing toward the
ground, Figure 4.5 below.
7. Set the upright unit on the ground so the legs support unit weight.
8. Remove the straps from around unit.

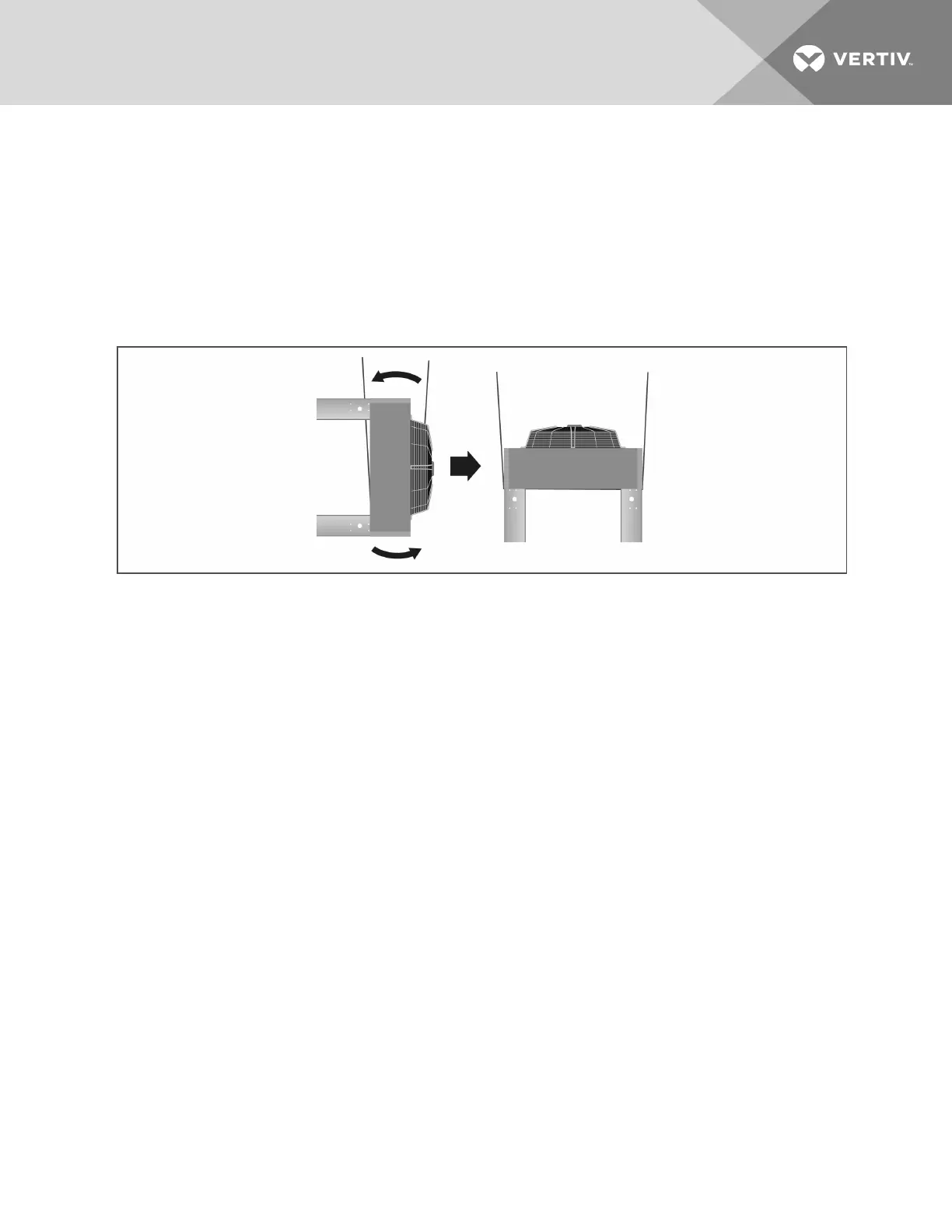

Figure 4.5 Rotate and Set Drycooler on Ground or Level Surface
4 Equipment Inspection and Handling
23
