2. Place slings around the unit between the unit and the top deck boards of the skid as shown in Figure 4.4
below:
• 1 fan, 2 fan and 3 fan units: against the inside of the attached legs.
• 4 fan units: against the outside of the attached eye bolts.
3. Use spreader bars, a lift beam and a crane to lift the unit off the skid. Make sure spreader bars are wider than
the unit to prevent crushing force.
NOTICE
Risk of improper lifting. Can cause equipment damage. Make sure that the spreader bars are wider than the
unit. If the spreader bars are too short, the slings may crush the unit.

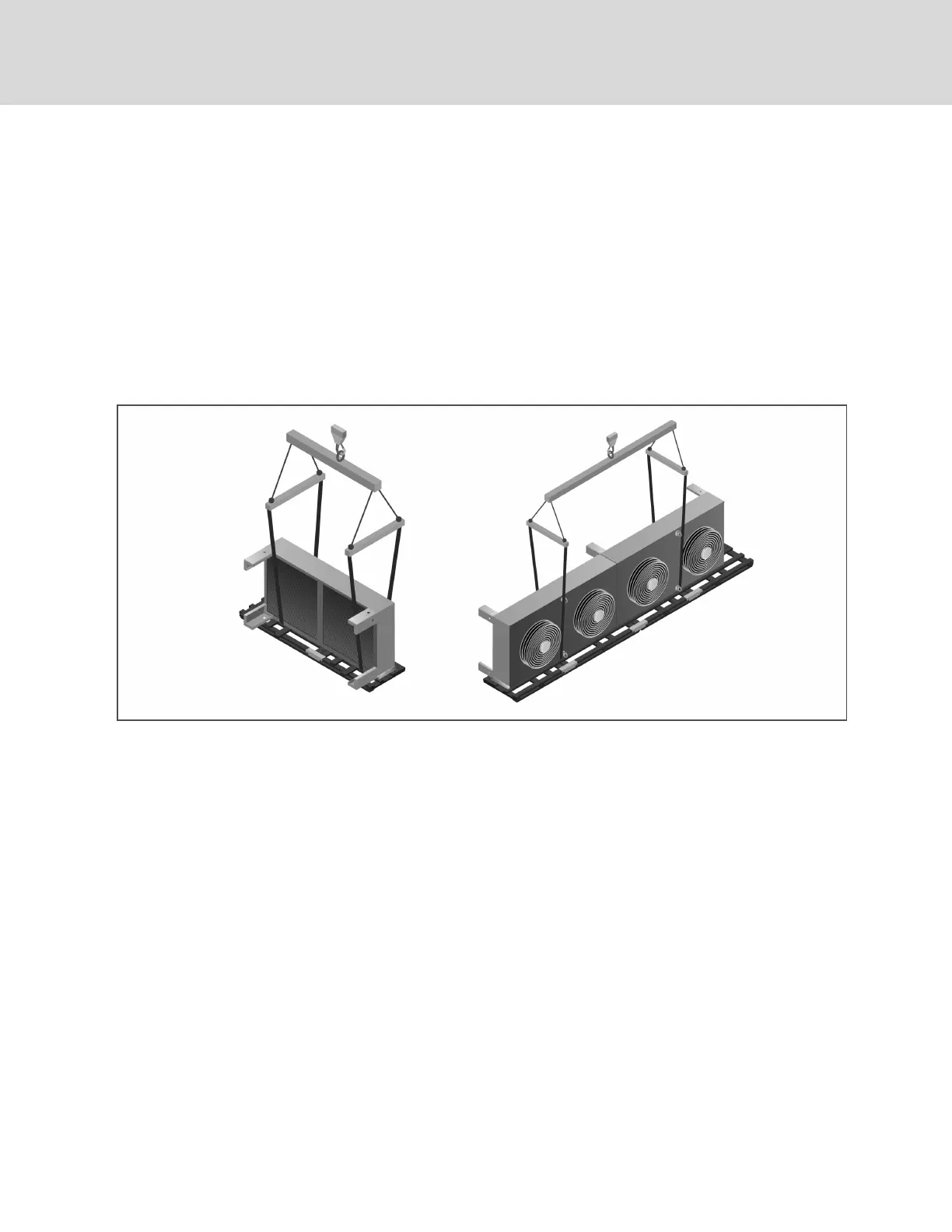

Figure 4.4 Securing Slings to 1 to 4 Fan Drycoolers for Lifting off Skid
Vertiv | Liebert® Drycooler Installer/User Guide
