2 - Preliminary operations
2.1 - Safety Information
WARNING!
Risk of top-heavy unit falling over! Improper handling
can cause equipment damage, injury, or death! Read
all of the following instructions before attempting to move, lift,
remove packaging, or preparing unit for installation.
CAUTION!
Risk of sharp edges, splinters and exposed fasteners!
Can cause personal injury! Only properly trained
personnel wearing appropriate safety headgear, gloves, shoes and
glasses should attempt to move, lift, remove packaging from the
unit or prepare the unit for installation.
CAUTION!
Risk of overhead interference! Can cause unit and/or
structure damage! The unit may be too tall to t through
a doorway while on the skid.
Measure the unit and doorway heights and refer to the installation
plans prior to moving the unit to verify clearances.
NOTICE!
Risk of unit damage if improperly stored! Keep the
unit vertically upright, indoors, and protected from
dampness, freezing temperatures, and contact damage.
NOTICE!
The conditioner must never be installed outdoor.
See drawings in Enclosure C.
2.2 - Equipment Inspection
Upon arrival of the unit, and before unpacking, verify that the
labeled equipment matches the Bill of Lading. Carefully inspect all
items for either visible or concealed damage. Damage should be
immediately reported to the carrier and a damage claim lled in
with a copy sent to your sales representative.
2.3 - Packing material
All material used to package this unit is recyclable.
Please save for future use, or dispose of the material
appropriately.

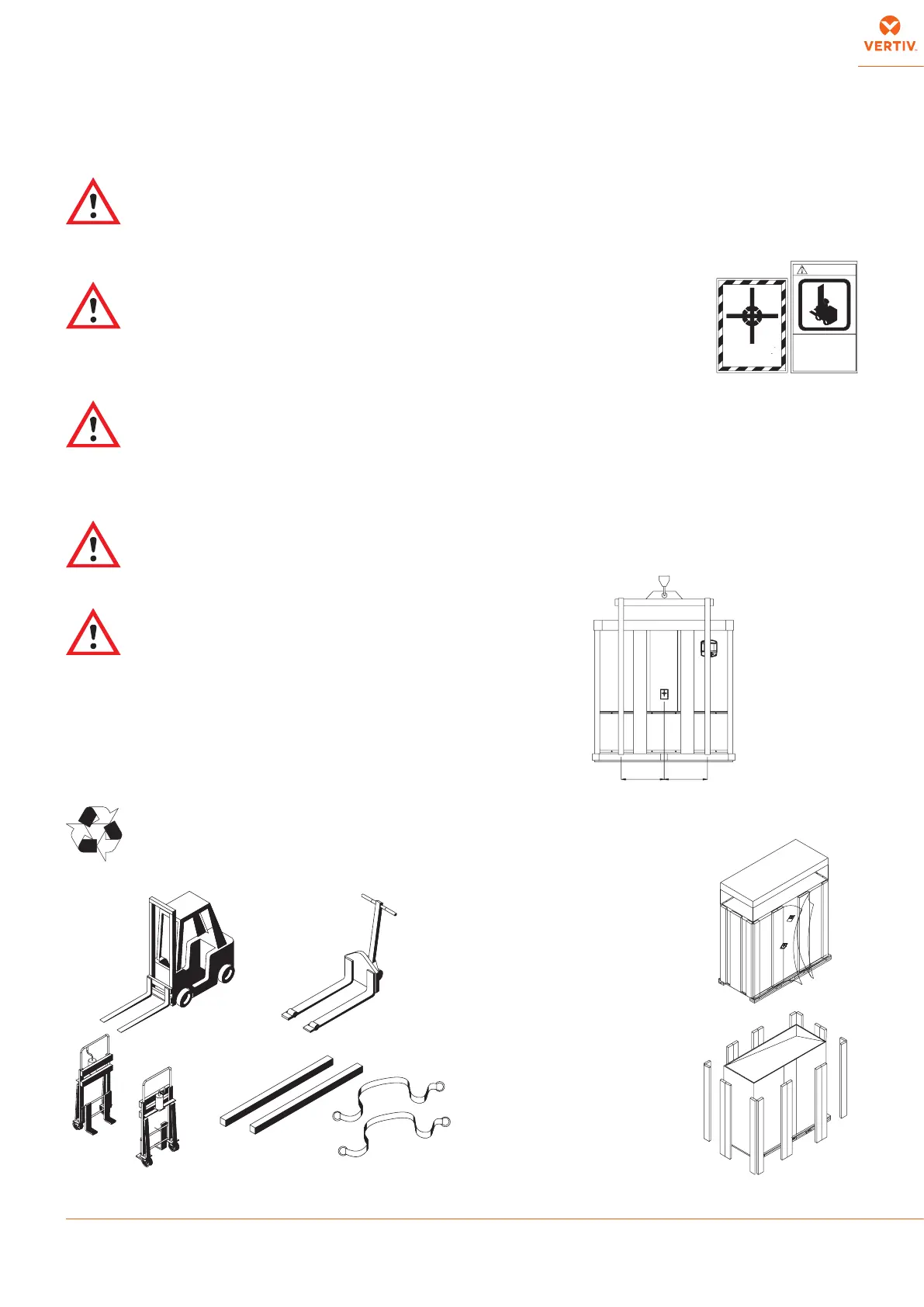

2.4 - Recommended Unit Handling Equipment
2.5 - Handling the Unit While Packaged
• Transport unit using a fork lift or pallet jack; otherwise use a
crane with slings, in this case use spreader bars to avoid risk
of crushing.
• If using a fork lift or pallet jack, make sure the fork (if adjustable)
are spread to the widest allowable distance to still t under the
skid. Also, ensure the fork length and distance is suitable for
the unit length and to ensure the unit stability.
• When moving the packaged unit
with a fork lift, lift the unit from the
designated side of the unit not
higher than 152 mm o󰀨 the ground.
If circumstances require the unit to
be lifted higher than 152mm great
care shall be exercised and all
by-standing personnel are to be no
closer than 5 m to the lift point of
the unit.
• Always refer to the location of the Center of Gravity indicators
when lifting the unit from any other side.
• Use the center of gravity indicators on the unit panels to
determine the position of the slings.
• Center of gravity varies per unit size and selected options.
• Slings shall be equally spaced on either side of the center
of gravity indicator, and with the widest allowable distance.
Be sure that the distance between slings guaranties the unit
stability.
• Place the slings between the unit bottom rails and the skid.
2.6 - Unpacking the Unit
1. Remove the exterior stretch
wrap packaging material from
around the unit, exposing the
protective corner and side
packaging planks.
2. Remove the top cover, corner
and side packaging planks
from the unit
Fork Lift
Piano Jacks
Pallet Jack
Spreader
Bars and
Slings
CENTER OF
GRAVITY
HEAVY SIDE!
Unit weight is unbalanced.
Improper lifting can cause
personal injury, death, or
damage to unit. Lift unit
from this side only.
WARNING
Equal
Distance
Equal
Distance
