Vertiv Liebert PDX - Electrode Humidifier Components

A - 2
Enclosure A - Electrode Humidier
Liebert
®
PDX, EconoPhase Version - UM - 265133 - 29.08.2019
Important:
For drain water connection see details in Fig. 1:
• Use a drain hose Ø 32 mm, maximum length 10 m with minimum5% gradient, don’t make siphon on this hose to avoid back pres-
sures in the drain piping. For conguration with bigger length or high head consider the PDX option with condensate pump.
• Dispose the drain hose into an ordinary drainage network. (the drainage network should have a siphon (see Fig. 1) and must be able
to withstand temperatures up to 100° C and able to drain water ow up to 10l/min.
• Pay attention in the manual drainage of the steam cylinder if the drainage network isn’t able to drain 10 l/min, risk of water overow
on the humidier.
A.2.1 - Electrode humidier components
1. chassis
2. ll tank
2a. conductivity electrodes
3. cylinder
3a. high level electrodes
3b. immersed electrodes
3c. lter inside the cylinder
4. cylinder fastening strap
5. hose kit
5a. supply hose
5b. ll hose
5c. drain pump and overow outlet hose
5d. drain hose
6. ll solenoid valve
7. drain pump
8. drain connection (diameter 32mm)
9. steam outlet
10. steam distribution hose
11. manual valve (not supplied)
12. mechanical lter (not supplied)
13. supply hose (not supplied)
14. connection hose
15. drain hose with siphon (not supplied)

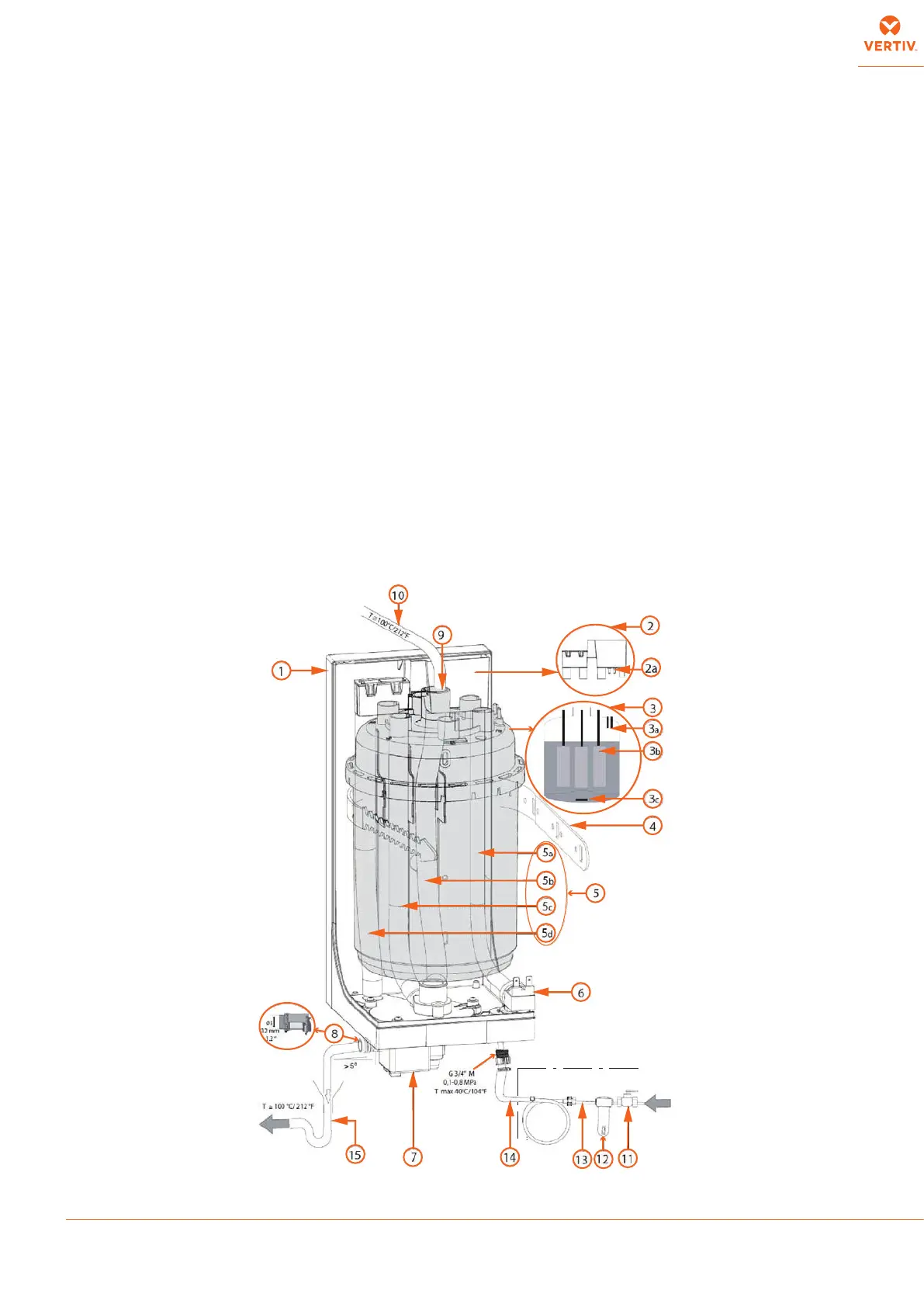

Fig. 1 - The humidier and its components
