Enclosure D - Refrigerant, hydraulic and electrical connections
D - 1 Liebert
®
PDX, EconoPhase Version - UM - 265133 - 29.08.2019
Tab. 1 - Electrical data with basic fan module
Model
Unit Connection
PX082 PX094 PX104 PX120 PX150 PX165
ECONOPHASE
IL1
Refrigerant liquid
line inlet 1*
O.D. Ø18 mm O.D. Ø18 mm O.D. Ø18 mm O.D. Ø18 mm O.D. Ø18 mm O.D. Ø18 mm
IL2
Refrigerant liquid
line inlet 2*
O.D. Ø18 mm O.D. Ø18 mm O.D. Ø18 mm O.D. Ø18 mm O.D. Ø18 mm O.D. Ø18 mm
OG1
Refrigerant gas line
outtlet 1*
O.D. Ø22 mm O.D. Ø22 mm O.D. Ø22 mm O.D. Ø28 mm O.D. Ø28 mm O.D. Ø28 mm
OG2
Refrigerant gas line
outlet 2 *
O.D. Ø22 mm O.D. Ø22 mm O.D. Ø22 mm O.D. Ø28 mm O.D. Ø28 mm O.D. Ø28 mm
CD Condensate drain I.D. Ø20 [mm]
HF Humidier feed R ½ - ISO 7/1 (Electrode Humidier), O.D. 6 [mm] (Infrared Humidier)
HD Humidier drain I.D. Ø32 [mm] (Electrode Humidier), I.D. Ø22 [mm] (Infrared Humidier)
EC Electrical power supply Ø 48 [mm]
EC aux Low voltage cables Ø 40 - Ø 36 [mm]
* Connection size only. The connecting pipe diameter depends on unit model, see Tab. 6 in par. 4.1.2

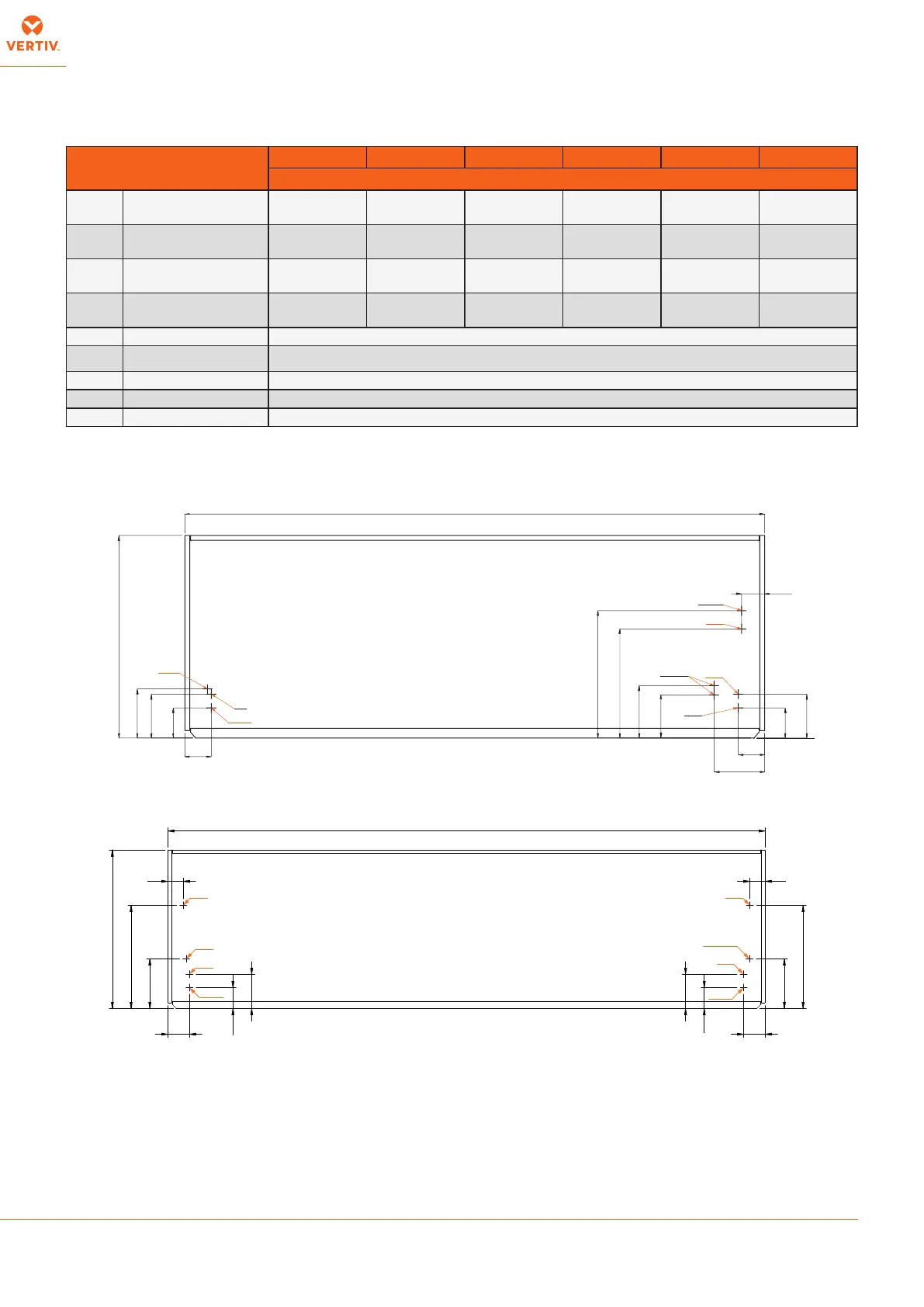

Fig. 1 - Refrigerant, water and electrical connections PX082-094-104-120 ECONOPHASE, top view
OG2
IL2
OG1
IL1
EC aux
CD
HD/HF
EC
132,5
193
117
117
132,5
193
2550
190
230
223
102
480
560
215
890
Fig. 2 - Refrigerant, water and electrical connections PX150-165 ECONOPHASE, top view
3350
890
579
86
121
118
193
OG1
IL1
121
118
193
579
86
OG2
IL2
EC
CD
EC aux
CD
279 279
