Controller Operating Instruction
Parameters/ System Settings: Enter the user password and login to access the System Setting icon. Press
the icon to enter the System Setting page. The System Setting also includes the system parameters, valve
parameters and pump parameters settings, as shown in Figure 3-10.

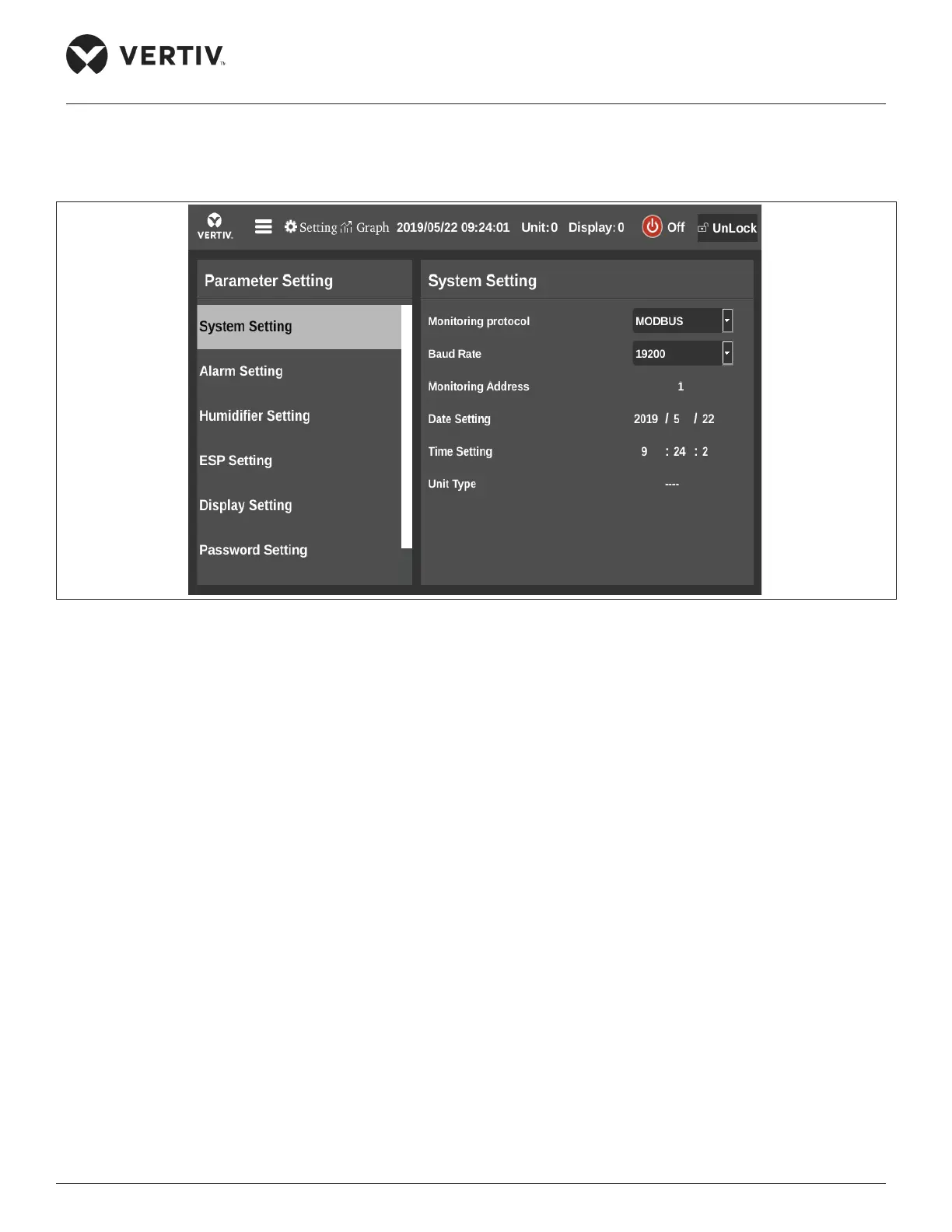

Figure 3-10 Parameters/ System Setting
In the System Setting screen, the system parameters can be set to Monitoring protocol, Baud Rate, Monitoring
Address, the Display Address, Date and Time Setting. The specic setting methods are as follows:
Example 1: Setting the control temperature
1. Temperature Setting item, press the position number, the interface appears as shown in Figure 3-11.
2. In the interface, enter the corresponding temperature values.
3. Press on Enter, to complete the setup.
Example 2: To modify the parameters; for example, to set the Humidity Setting menu item in the Temperature
and Humidity Setting menu.
1. Press on the main menu interface Temperature and Humidity Settings.
2. Enter the Temperature and Humidity Setting interface and Press the Humidity Setting page.
3. In the Humidity Setting interface, press to set the corresponding setting value.
4. After the parameters are selected, press Enter to conrm the parameters take eect.
5. Press the Home icon to return to the home page.
