Vertiv | SmartAisle2 | User Manual 91
Installation
2.11. Installation of Lighting System
In this section, the installation of the lighting system will be explained in detail.
2.11.1. Installing the Lighting Switch
The lighting switch is mounted on the outer side of the right access door pillar. It has a rocker cover. Open the
switch. The switch body is fixed upright with screws.

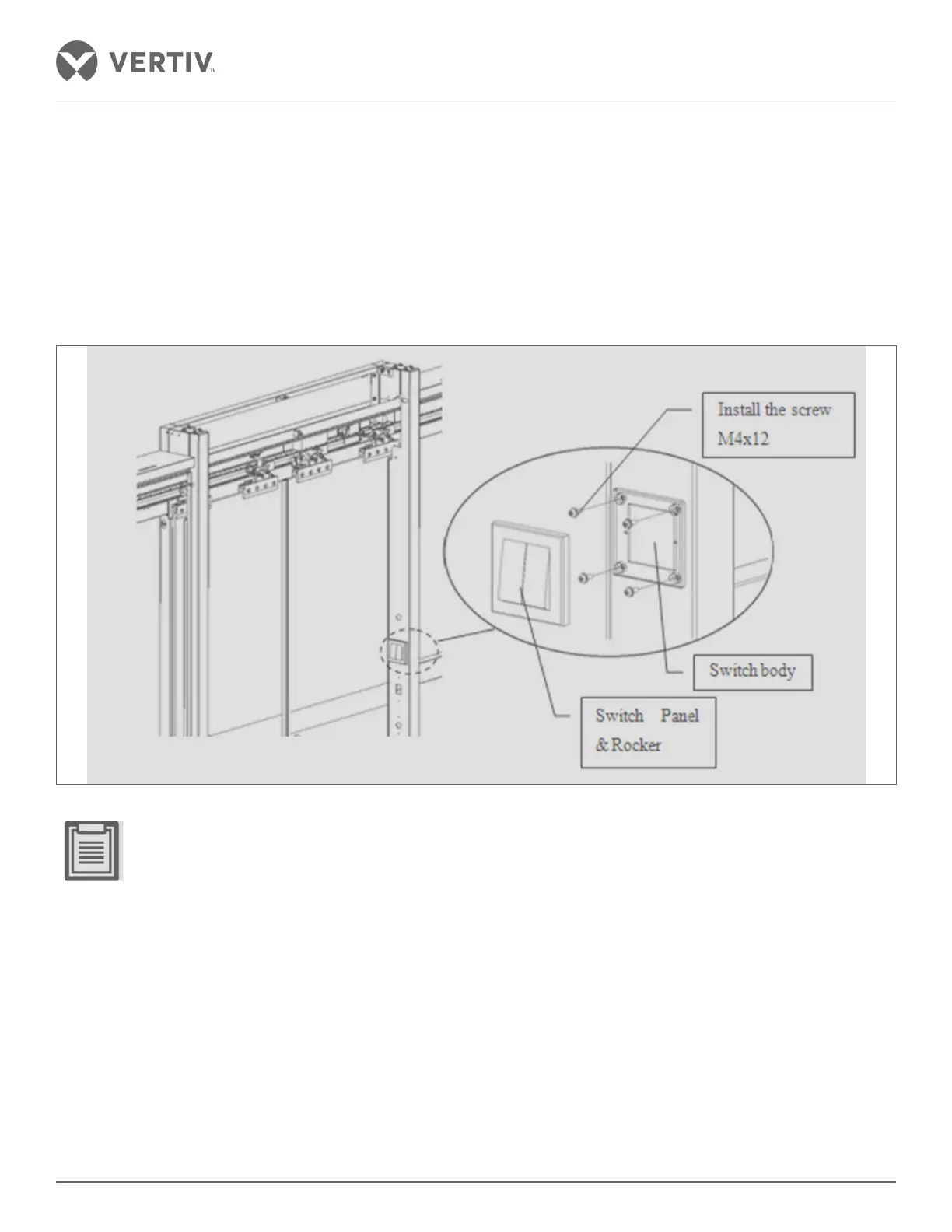

Figure 2-99 Light switch installed
• Ensure that the rocker switch plate is not upside down during mounting.
