Operation & Display Panel
3.5.6. PUE Page
Clicking the PUE dial show the Energy eiciency, Power distribution pie chart, and the historical PUE curve.

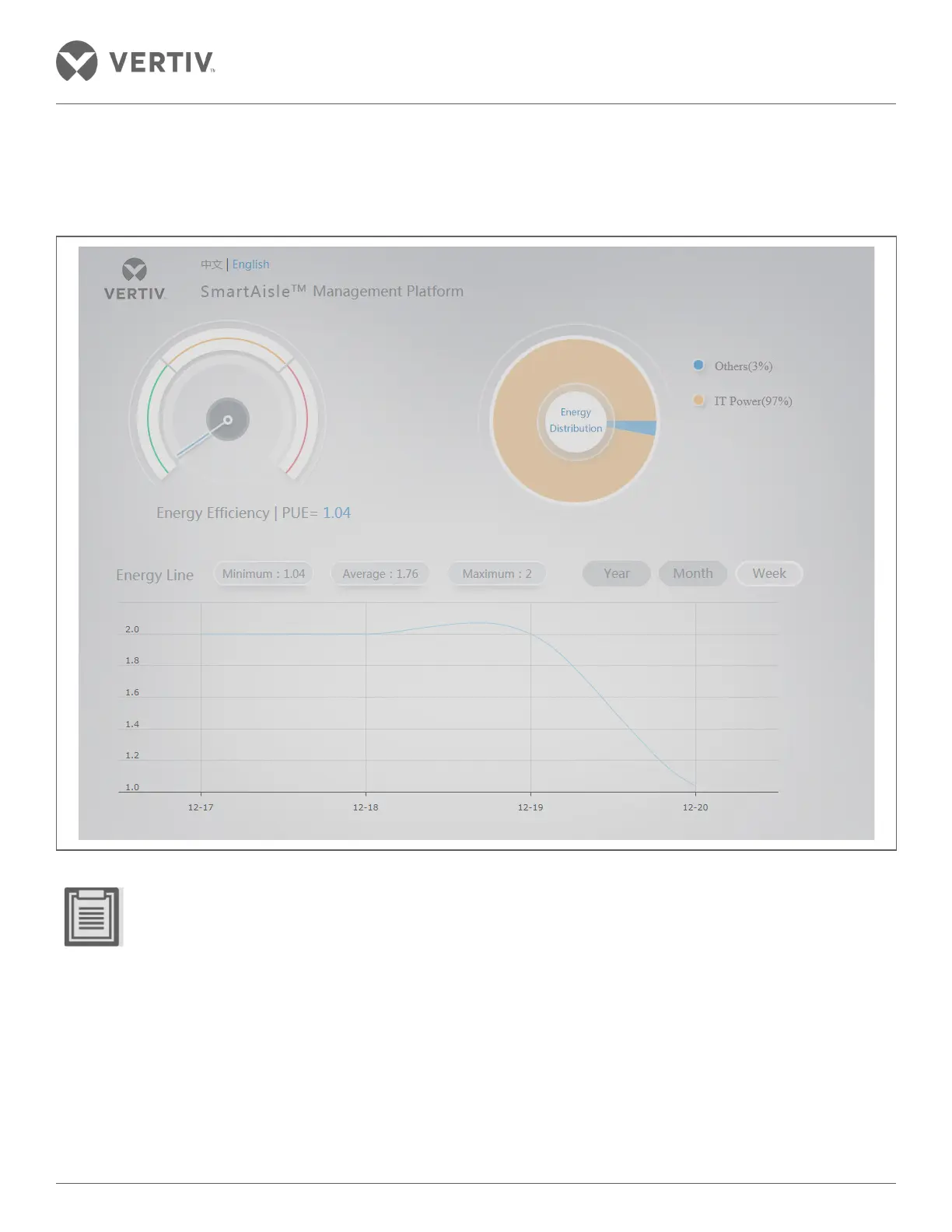

Figure 3-11 PUE Page
• The PUE power mode can be configured, for more detailed info, refer to the RDU-M user manual. The dier-
ent classifications of the energy pie charts can be configured and the same RDU-M user manual needs to
be referred to for the same.
• The PUE Curve is based on the data for the last seven days whereas the historical data for the last 30 days
is shown.
