Vertiv | SmartAisle2 | User Manual 23
Installation
• Installing the cabinet depth stop element is done to ensure consistency and depth of the cabinet base in the
specified position with that of the cabinet depth as shown in Figure 2-11.

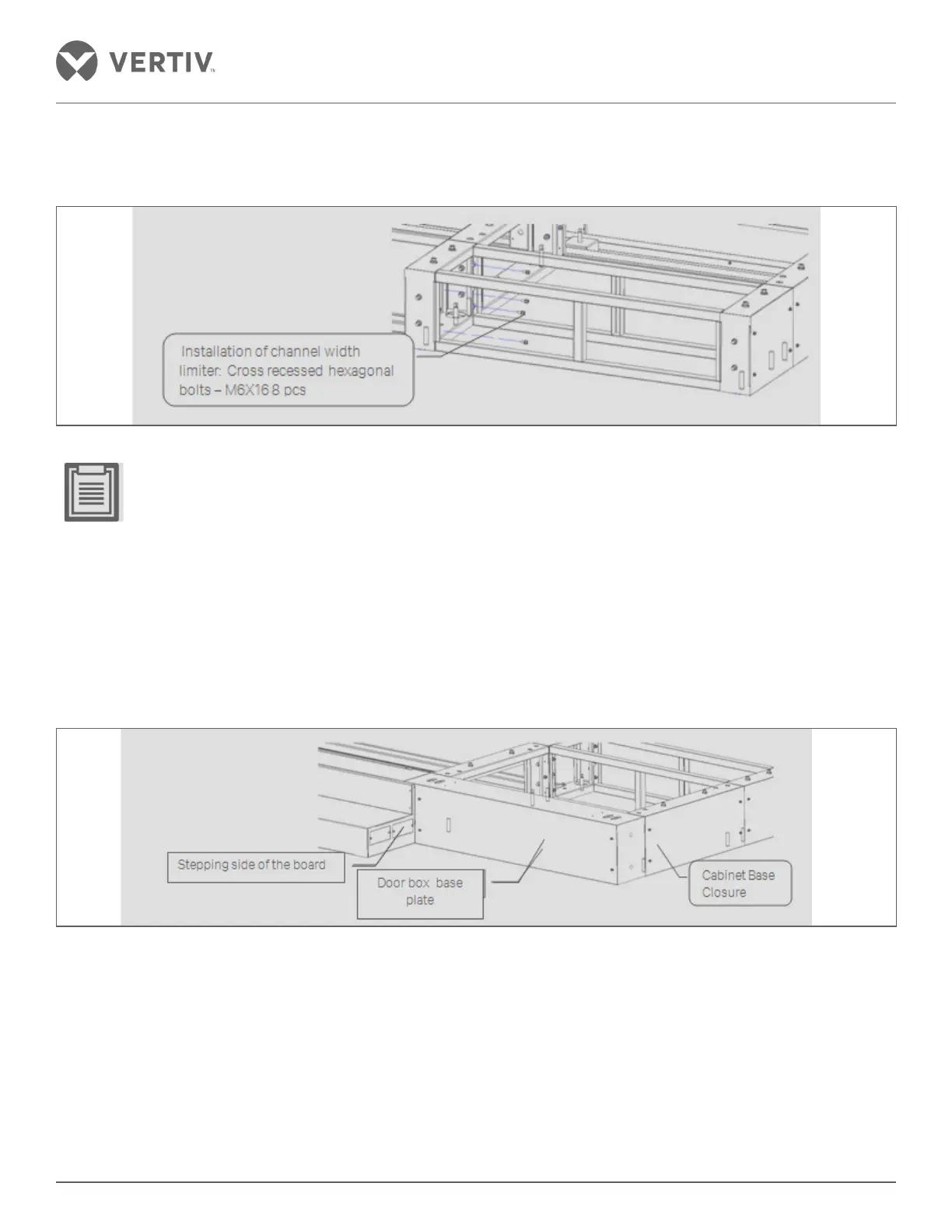

Figure 2-11 Installation cabinet depth stop element
• Stopper must be installed; if a stopper is not installed and that leads to quality issues, the warranty is void as
the customer is responsible for it.
• Stopper must be installed at each distribution cabinet as well as the base of the air conditioner to facilitate
ease of installation.
• Fasteners are not consequential around the base.
2.4.2. Leveling the base
Figure 2-12 shows the removal of the outer base closure plate.
Figure 2-12 Leveling the base of the closure plate to be torn
