Installation

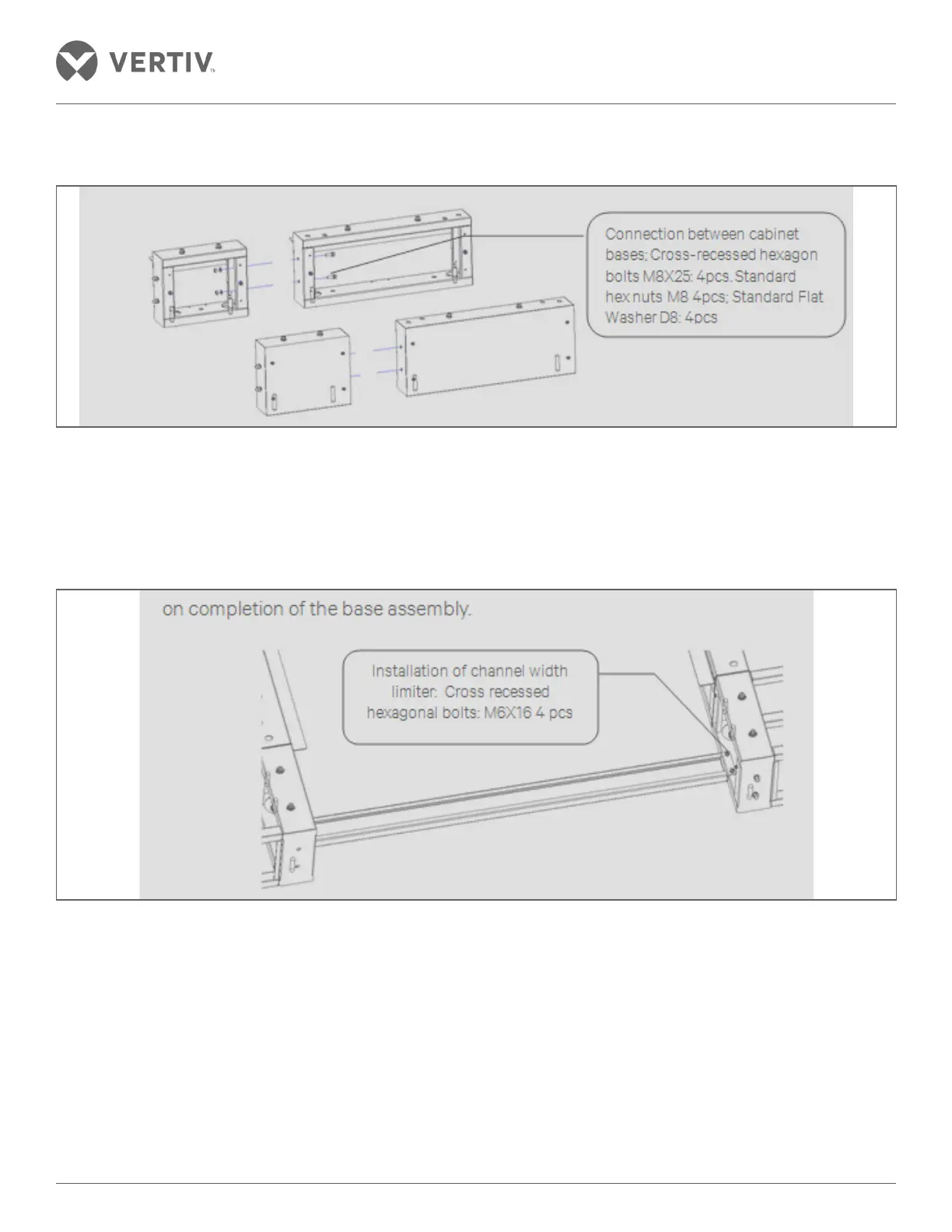

• The connection between the base of the cabinet includes bolts and nuts as shown in Figure 2-9.
Figure 2-9 The connection between the base of the cabinet
• While mounting channel width of the stopper member, the channel width stopper base of the cabinet in two
rows, ensure a pitch of 1200 mm. The base of the cabinet is connected to two rows of the stopper member as
shown in Figure 2-10. Limit the equidistant positioning member mounted in the base assembly as much as
possible on completion of the base assembly.
Figure 2-10 Mounting channel width of the stopper member
