Installation
• The magnetic tape cable must be installed on the ceiling beams; remember it should not be installed on the
rotating plate; else it will aect the roof opening function.
• Vertiv recommends installation of the door sensor and the reduction of high altitude operations prior to
installing the roof.
• Preferably, magnetic installation should be in the channel next to the door of the first open roof.
2.12.3. Installation of Top Open Controller
Remove the open sides of the adapter controller and mount both the sides on the control box; press the sides
and do not insert a screw.

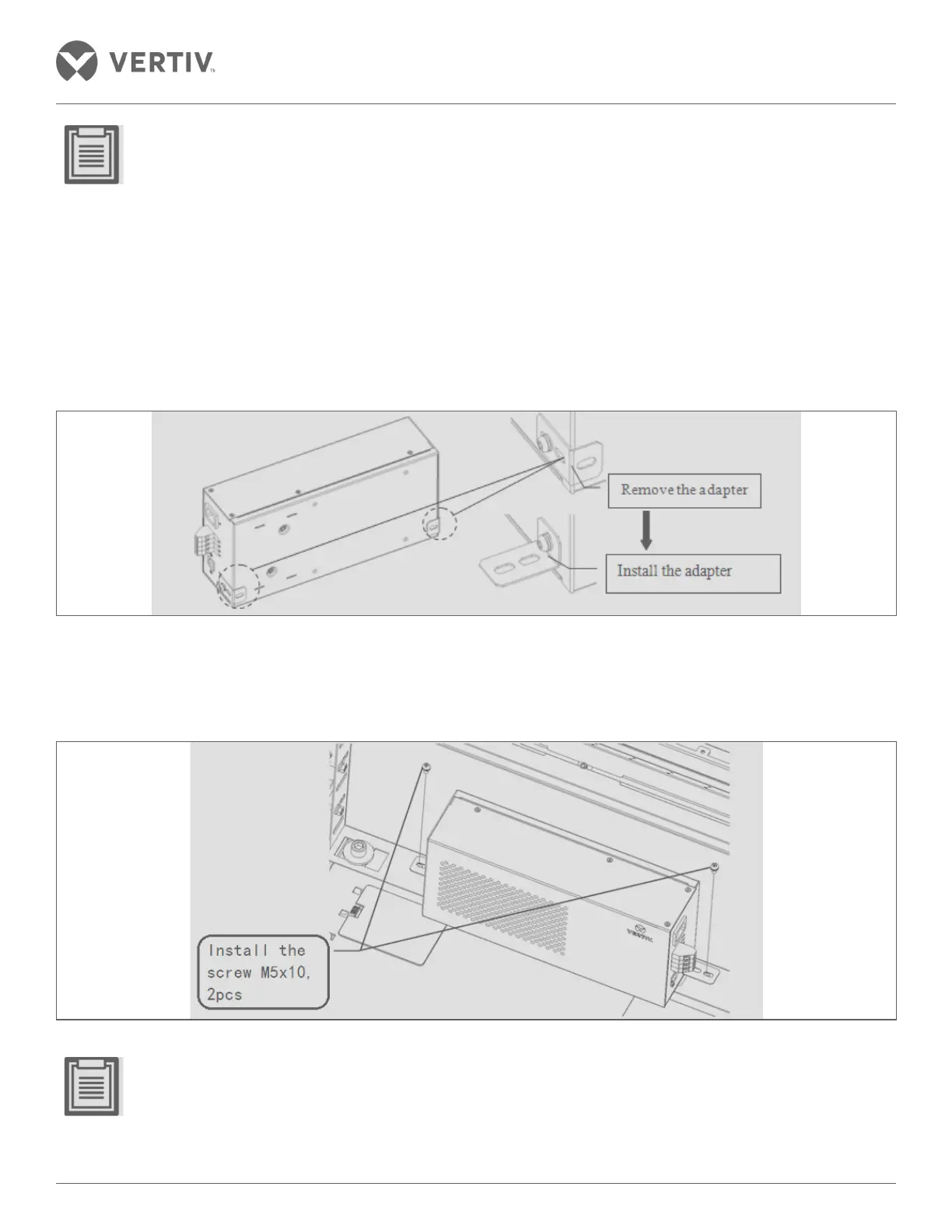

Figure 2-106 An adapter mounted control box
Figure 2-107 Installation control box
The control box is placed in the rear roof support. It has a height adjustment adapter and an adapter fastening
screw. The screw helps in the connection between the control box and roof support.
• Open the controller cooling holes facing in the outward direction.
• Vertiv recommends to start from the first side of the top chassis and the button controller for opening
should be mounted near the passage.
