Vertiv | SmartAisle2 | User Manual 6
Introduction
1.4.3. Space
Indoor Space
Leave enough space for installation, maintenance, repairs and cooling; the space required to open the door is
shown in Figure 1-2 (spatial dimensions unit: mm).

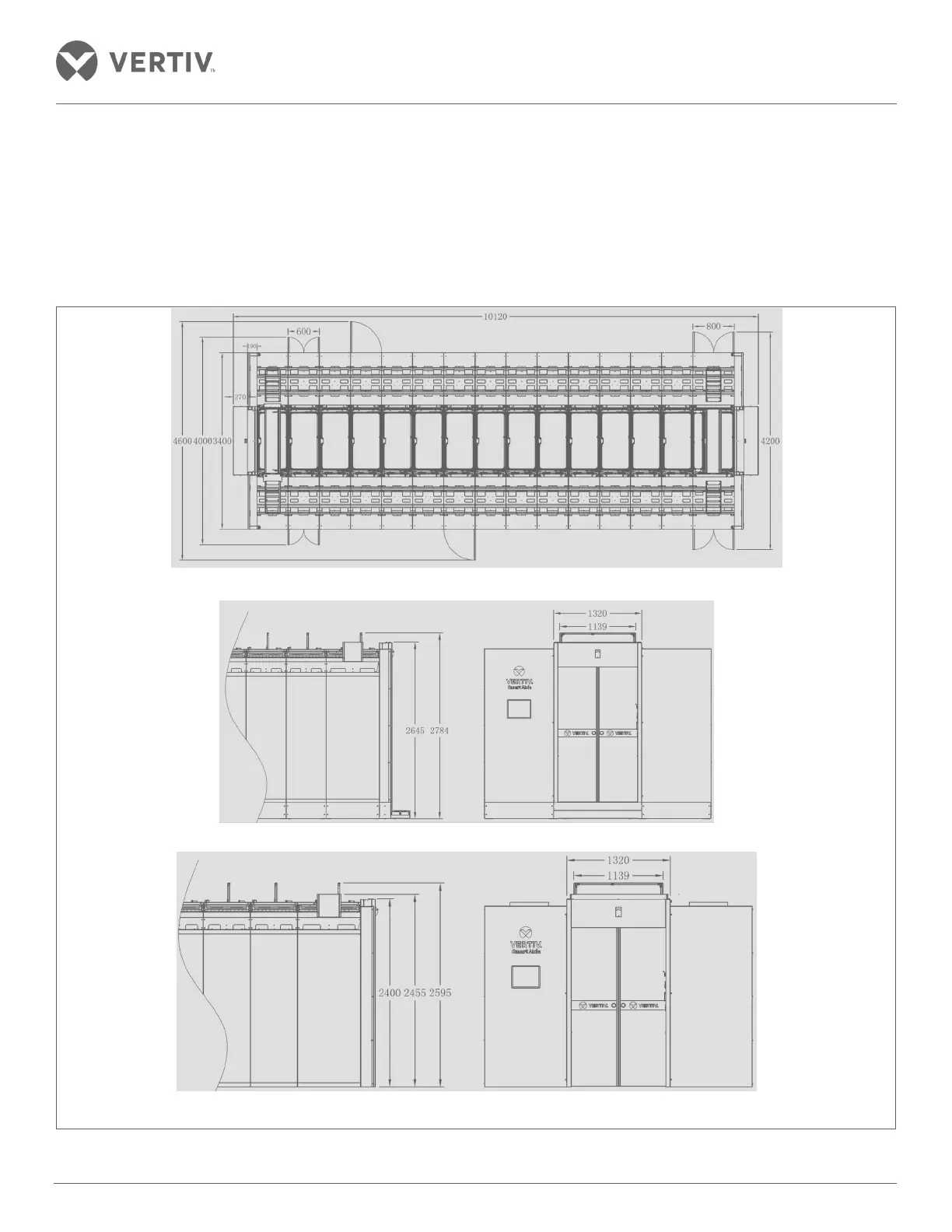

Figure 1-2 Interior Space side (Indoor)
A plan view
A side view (with the original base, the cabinet split foot)
A side view (excluding the original base, the cabinet including feet)
