• Ensure to check the back door open space in front of the cabinet during product installation.
• Always check and confirm the frame before mounting the product and the spacing between the
projecting outer enclosure level bridge.
• Confirm the opening height space between the bridge, lighting, plumbing, and ceiling after the roof opens
prior to installation.
• The rear cabinet door and the door from the wall end of the channel reservation must have an appropriate
distance between them to ensure easy access to equipment shelves for the maintenance personnel.
Outdoor Space
Maintain suicient space for servicing and repairs around the condenser installation position. The detailed space
requirements are depicted in Figure 1-3.

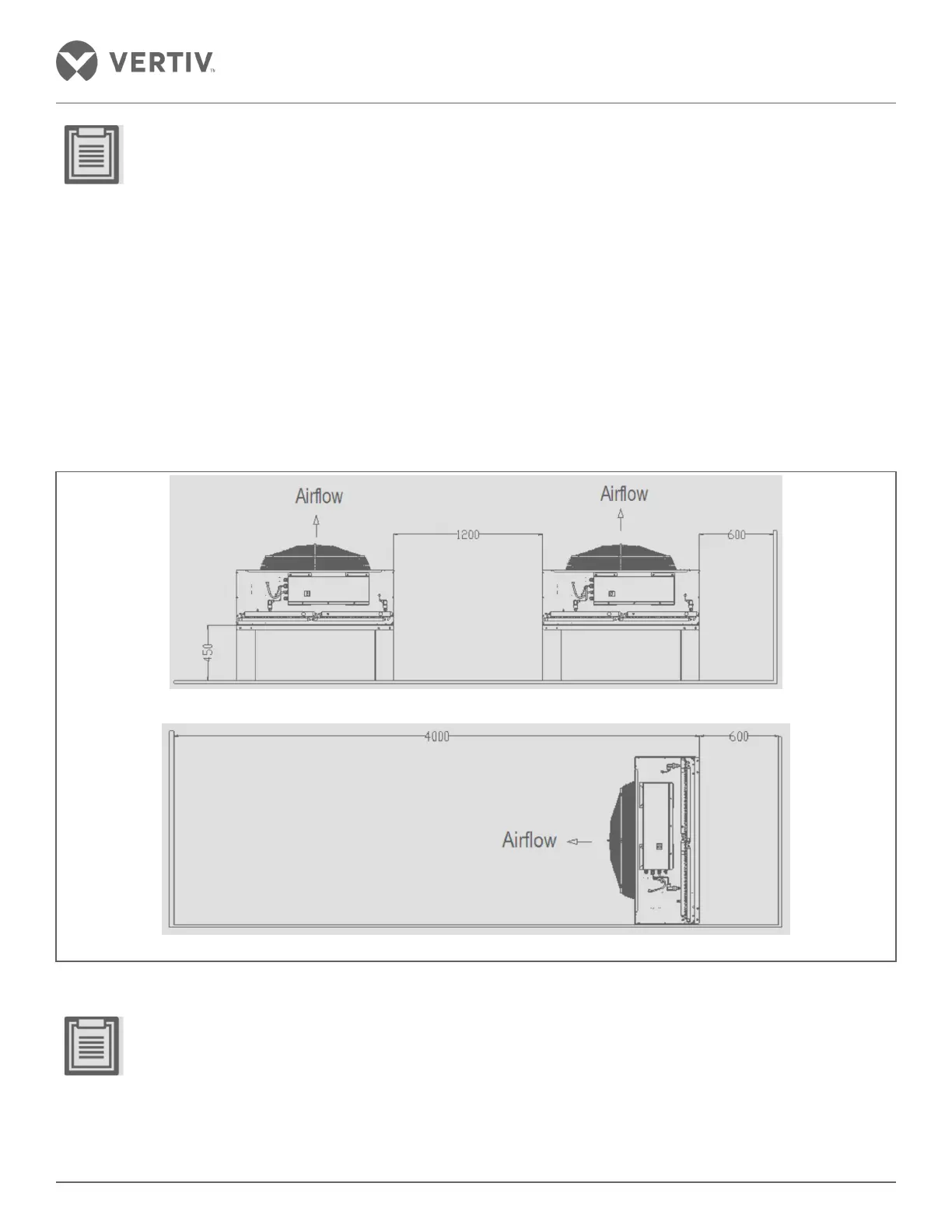

Figure 1-3 Outdoor Space
• Barrier free condenser outlet is 4000 mm.
• Keep a space of 600 mm from the front and rear sides of the condenser for maintenance and repairs.
Horizontal mounting space requirements (unit: mm)
Vertical mounting space requirements (unit: mm)
