2.10.4. Electrical connection of the electric gate
The cable is taken from the power supply and the rack PDU is fixed to the terminal block.
• If the power cord is incorrectly connected into the 220V AC terminal it will damage the electric gate and the
warranty in this will get void and the customer is fully accountable for it.
• PDU draws the Electric power from the cabinet door.

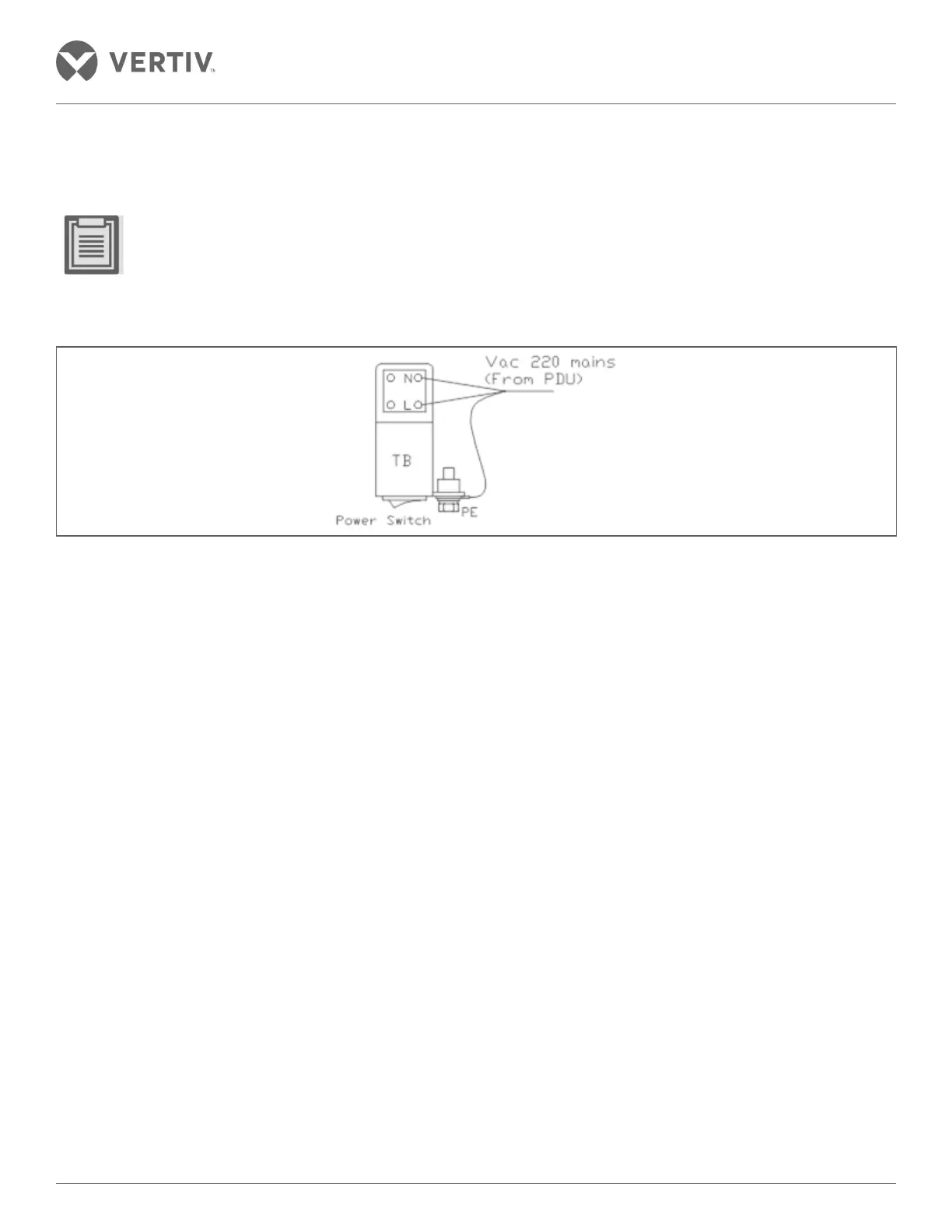

Figure 2-98 Electric gate terminal block
