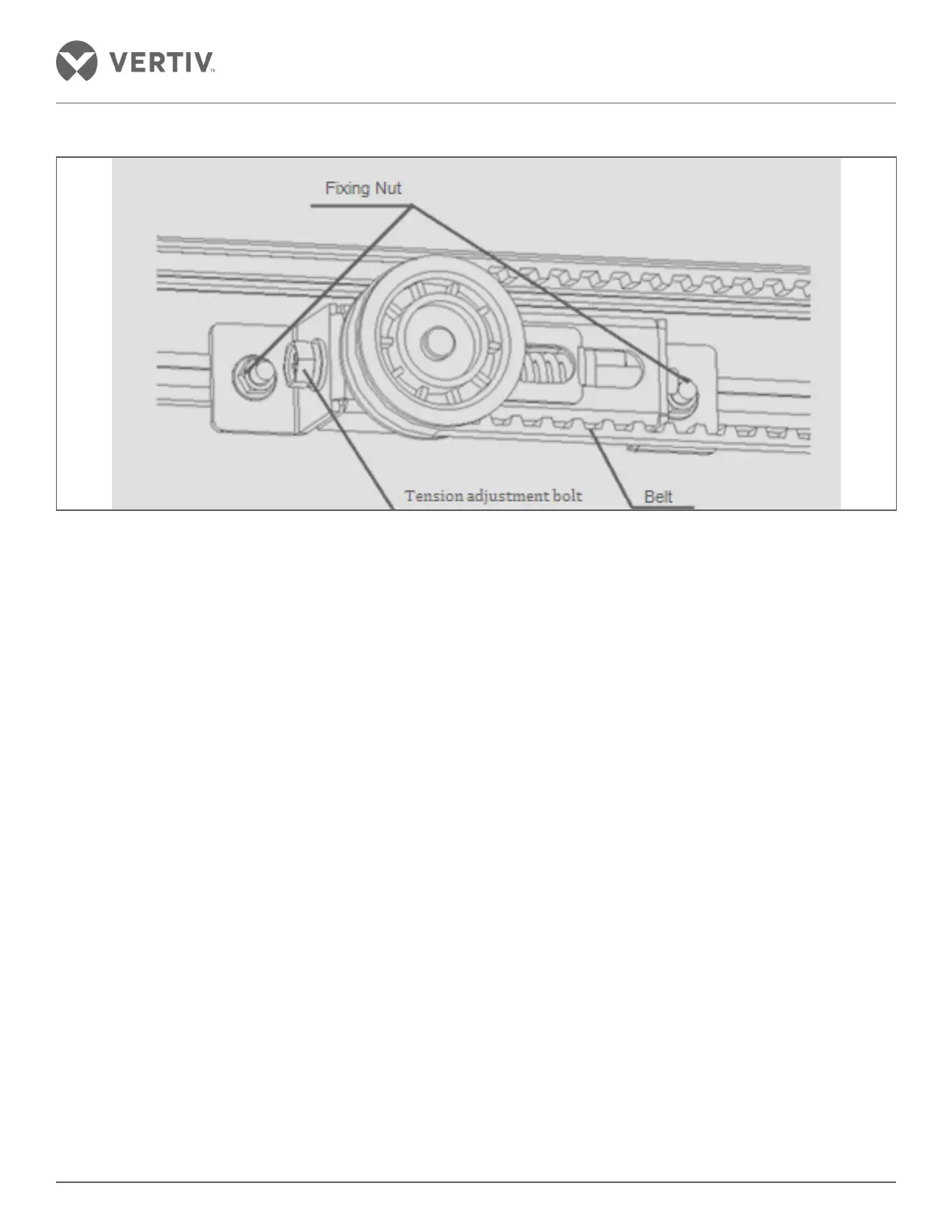

Figure 2-46 Belt Adjustment
• Induction door magnetic installation
The sensor door magnetic cable is not installed in the lower part of the adapter; the sensor door magnetic wiring
is installed in the upper adapter; use M6x12 bolts to install the lower adapter on the left hanger of the left door. Do
not tighten the screws. Slide the screw A from the right to the left in the middle gap of the two sections of guide
rail into the groove on the left side guide rail; adjust the screw spacing; install the adapter on the screw and fix
it with nut B but do not tighten it. In the closed position of the door to adjust the position of the adapter, check
if the left and right door are in magnet alignment; pay attention to adjust the gap between the upper and lower
parts of about 4 mm. Tighten the upper and lower adapter screw nut.
