Installation

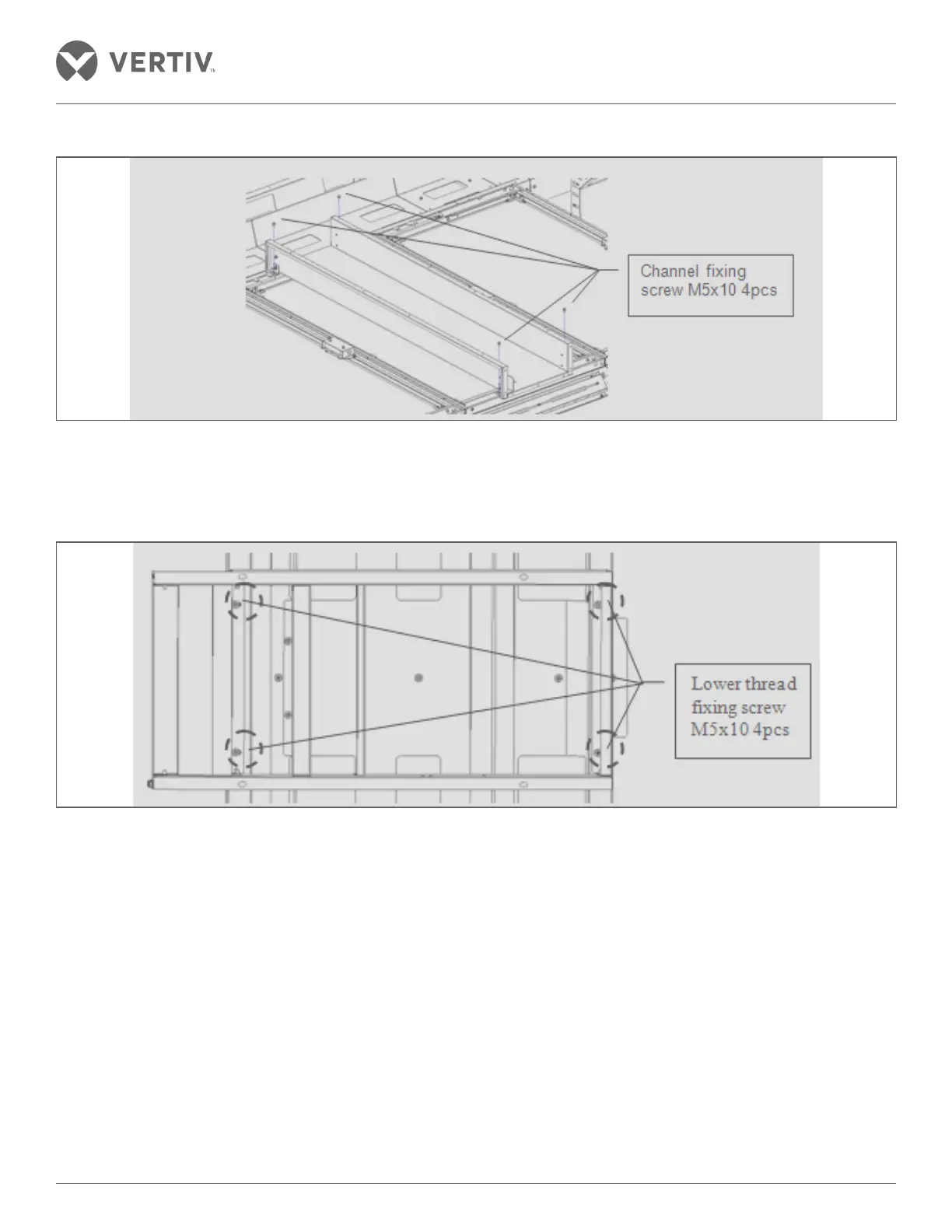

Figure 2-87 Cross-channel mounting channel
2. Mounting opening oline - Oline port is directly placed on the groove of the counter tops and connected to
the roof duct with the position of the screws on the oline port is at the inner wall of the bent edge.
Figure 2-88 Installation channel cross-channel (top)
