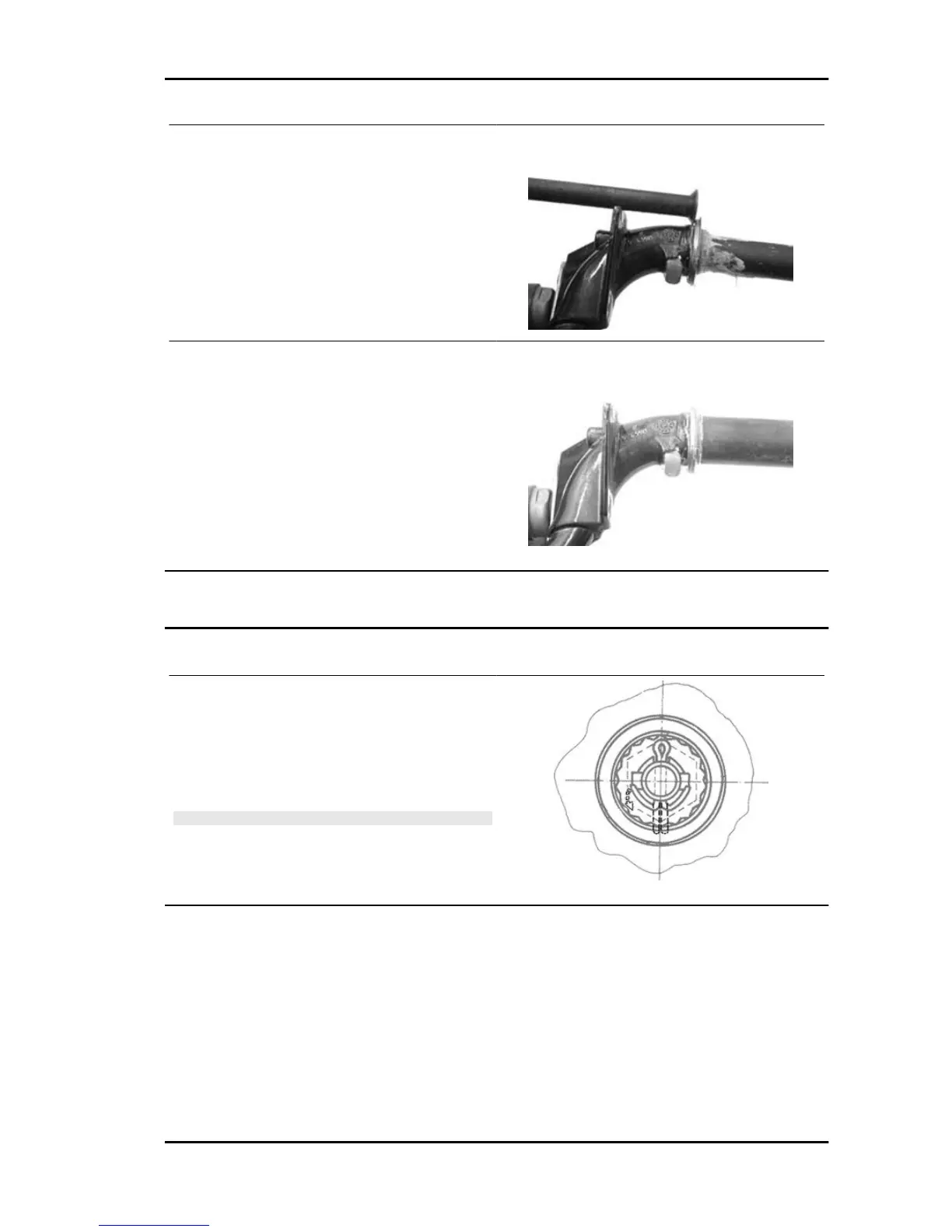

- Remove the fifth wheel fitting and the dust guard
on the steering tube as shown in figure, using the
specific tool. Proceed giving a few taps with the
mallet.
Specific tooling
020004Y Punch for removing fifth wheels from
headstock
- Refit the fifth wheel fitting and the dust guard on
the steering tube until they stop, using the specific
tool.
Specific tooling
006029Y Punch for fitting fifth wheel seat on
steering tube
Rear
Removing the rear wheel
- Use a screwdriver as a lever between the drum
and the cover.
-Straighten the split pin and remove the cap.
-Remove the wheel acting on the central fixing
point.
WARNING
-ALWAYS USE NEW SPLIT PINS FOR REFITTING.
Vespa LX 50 Suspensions
SUSP - 103
