Vespa LX 50 Workshop Manual

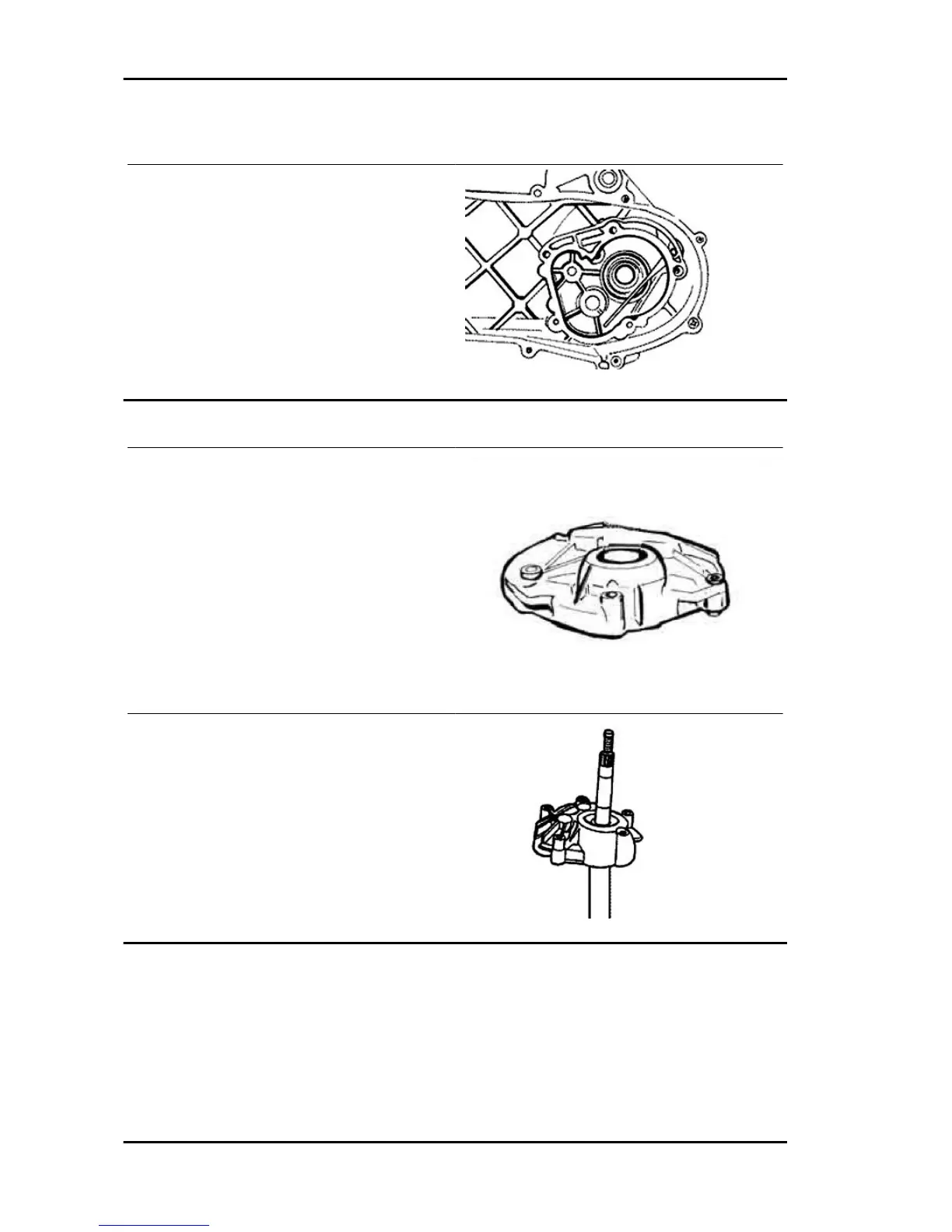

Removing the wheel axle bearings
- Remove the oil seal and the Seeger ring.
- Remove the bearing by pushing from the outside
towards the inside of the gear compartment, using
the appropriate punch.
Specific tooling
020363Y 20-mm guide
020376Y Adaptor handle
020358Y 37x40-mm Adaptor
Removing the driven pulley shaft bearing
- Remove the Seeger ring inside the cover.
- Remove the oil seal from the outside.
- Remove the centring dowels and position the
cover on a plane.
- Position the special tool on the internal track of
the bearing and remove said bearing with the aid
of a press.
Specific tooling
020452Y Tube for removing and refitting the
driven pulley shaft
- Position the special tube on the internal raceway
of the bearing and from the shaft toothed side as
indicated in the figure. Expel the driven pulley shaft
with the aid of a press.
Specific tooling
020452Y Tube for removing and refitting the
driven pulley shaft
Engine Vespa LX 50
ENG - 72

Vespa LX 50 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	49.9 cc
Fuel System	Carburetor
Front Brake	200 mm disc
Rear Brake	110 mm drum
Seat Height	785 mm
Fuel Tank Capacity	8.6 liters
Tires Front	110/70 - 11"
Tires Rear	120/70 - 10"
Length	1, 770 mm
Width	705 mm
Cooling System	Air cooled
Transmission	Automatic
Max Power	3.2 kW
Max Torque	4.2 Nm
