Vespa LX 50 Workshop Manual

ORDER TO AVOID WRONG TIGHTENING AND CONSE-
QUENTLY DAMAGING THE CRANKSHAFT KNURLING.
Specific tooling
020451Y Starting ring gear lock
Locking torques (N*m)
Crankshaft pulley nut 18 to 20 + 90° Nm
For 25 km/h engine type versions, the limit washer is 5.5 mm thick
End gear

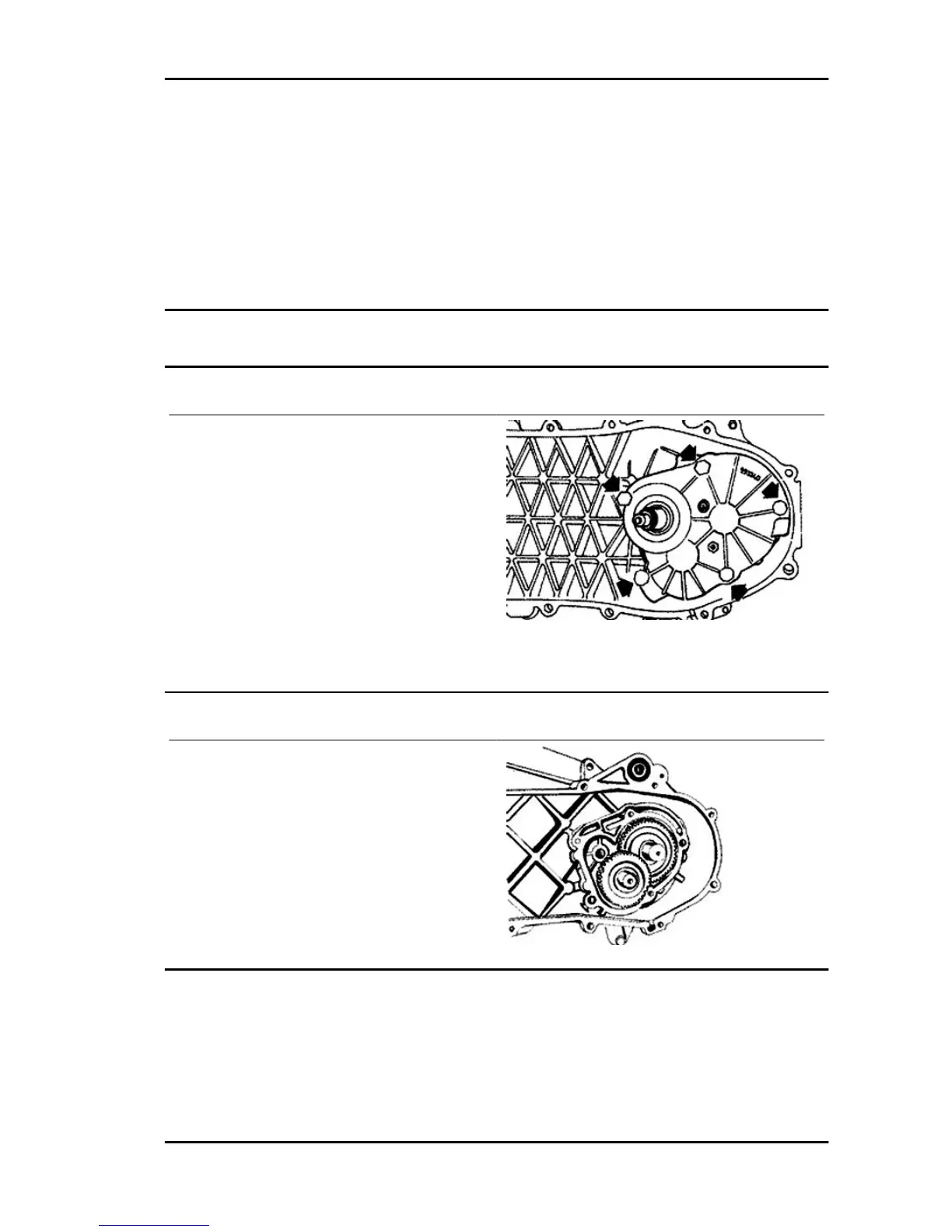

Removing the hub cover
• Remove the transmission cover
• Remove the clutch assembly
• Discharge the rear hub oil.
• Remove the 5 screws indicated in the figure.
• Remove the hub cover with driven pulley shaft.
See also
Refitting the clutch
Removing the wheel axle
- Remove the intermediate gear and the complete
gear wheel axle.
- When removing the intermediate gear pay atten-
tion to the various shim adjustments.
Vespa LX 50 Engine
ENG - 71
