Vespa LX 50 Workshop Manual

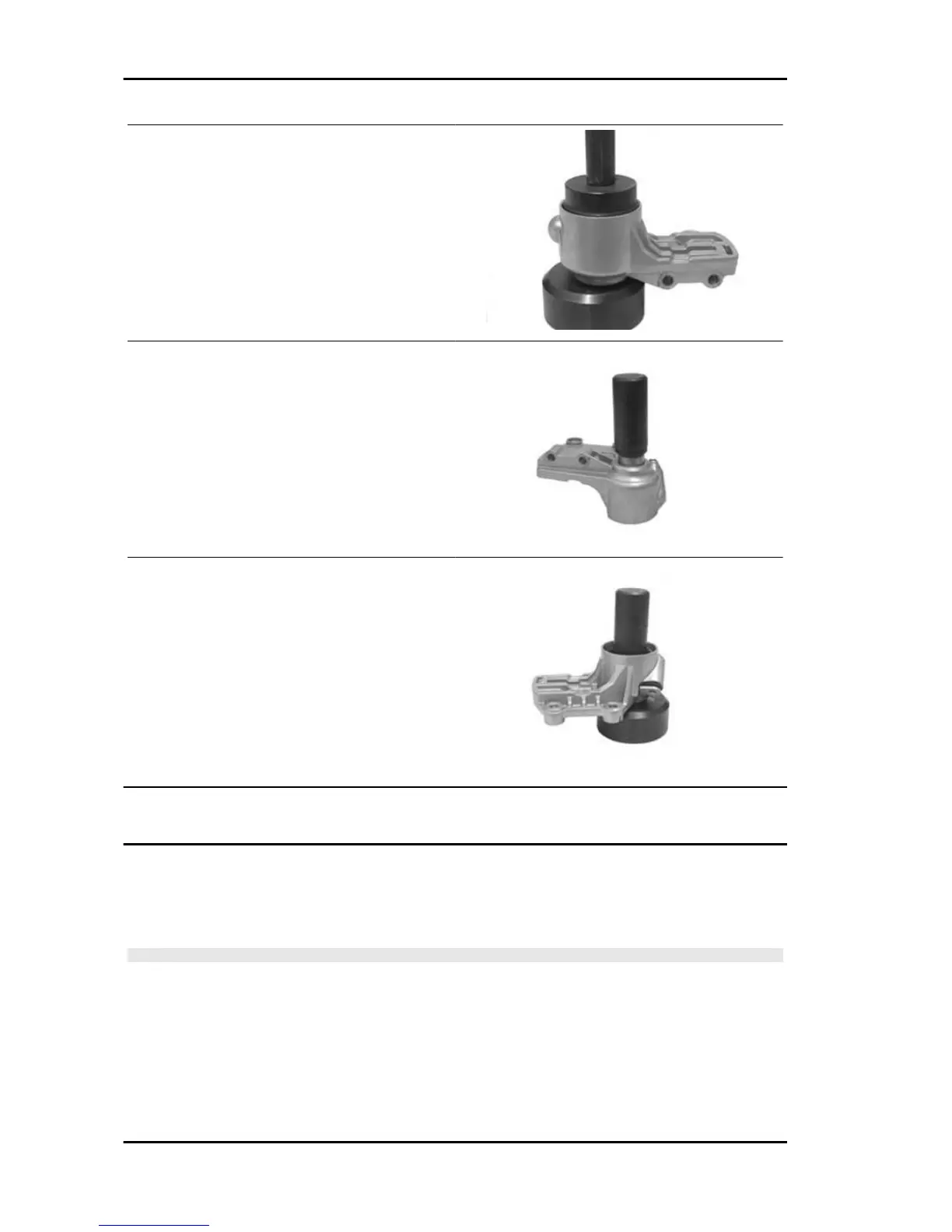

- Suitably hold the brake calliper - shock absorber
attachment bracket
- Fit a new oil seal and move it until it stops using
the specific tool
Specific tooling
020376Y Adaptor handle
020360Y 52x55-mm Adaptor
- Assemble a new roller bearing on the shock ab-
sorber side and move it until it stops using the
specific tool
Specific tooling
020036Y Punch
- Suitably hold the brake calliper - shock absorber
attachment bracket
- Assemble a new roller bearing on the wheel hub
side and move it until it stops using the specific tool
Specific tooling
020037Y Punch
Steering bearing
Removal
- Use the specific tool both to remove the lower seat of the upper bearing and to remove the upper seat
of the lower bearing fitted on the chassis.
N.B.
TO REMOVE THE LOWER SEAT OF THE LOWER STEERING BEARING JUST USE A SCREW-
DRIVER AS A LEVER BETWEEN THE SEATING AND THE SLEEVE.
Specific tooling
020004Y Punch for removing fifth wheels from headstock
Suspensions Vespa LX 50
SUSP - 102

Vespa LX 50 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	49.9 cc
Fuel System	Carburetor
Front Brake	200 mm disc
Rear Brake	110 mm drum
Seat Height	785 mm
Fuel Tank Capacity	8.6 liters
Tires Front	110/70 - 11"
Tires Rear	120/70 - 10"
Length	1, 770 mm
Width	705 mm
Cooling System	Air cooled
Transmission	Automatic
Max Power	3.2 kW
Max Torque	4.2 Nm
