Vespa LX 50 Workshop Manual

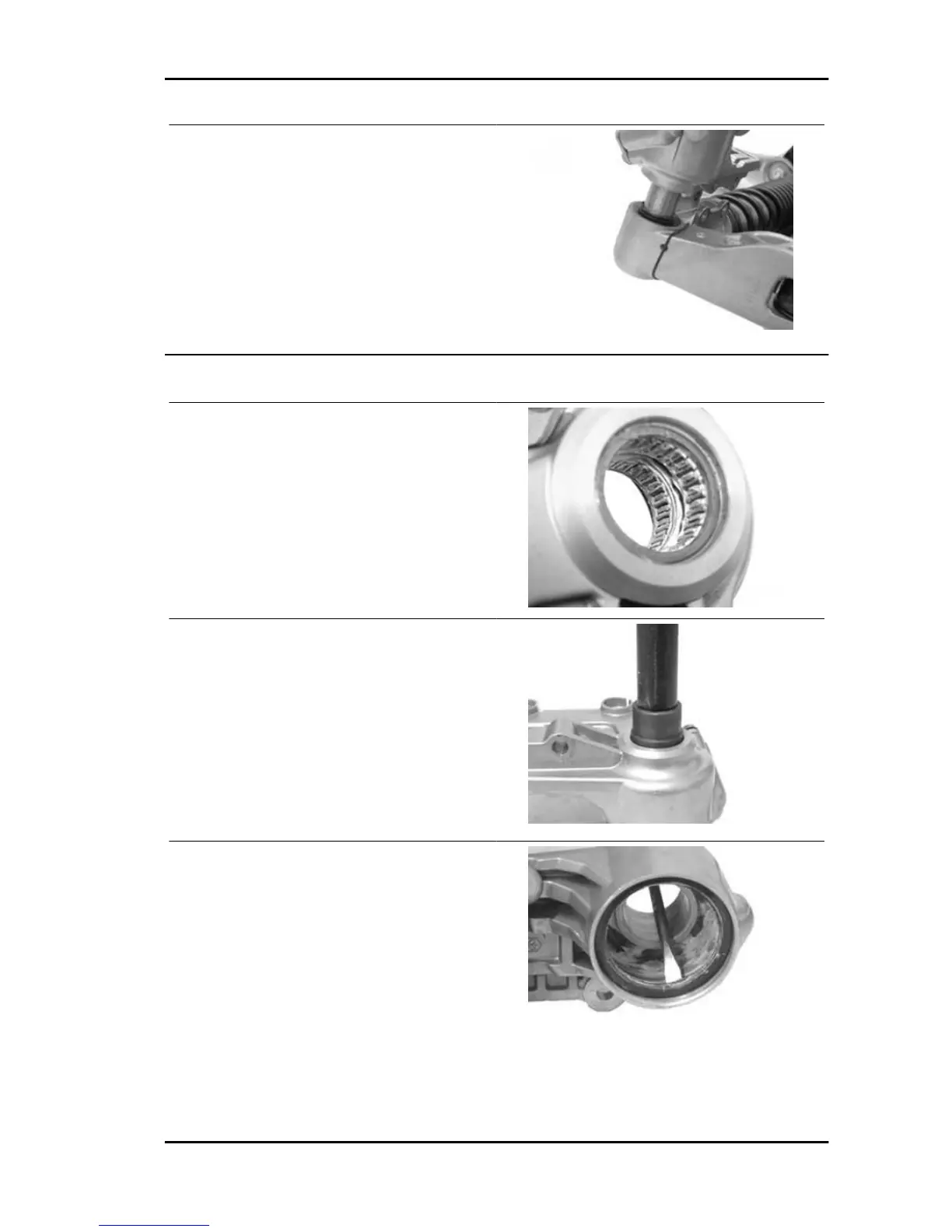

- Before refitting the bracket in the wheel axle,
place the O-ring as shown in the photograph so
that it is correctly placed after fitting the bracket.
- Refit the washer and the Seeger ring.
- Refit the lower screws fixing the shock absorber
to the bracket and tighten at the prescribed torque
Locking torques (N*m)
Lower shock absorber clamp 20 ÷ 27
Overhaul
- The bracket for the shock absorber -calliper at-
tachment has two roller bearings separated one
from the other as shown in the photograph
- Remove the two roller bearings from the bracket
with the specific tool operating on the shock ab-
sorber attachment side as shown in the photo-
graph
Specific tooling
020376Y Adaptor handle
020441Y 26 x 28 mm adaptor
020365Y 22 mm guide
- Remove the oil seal on the wheel hub side with
the screwdriver as shown in the photograph
Vespa LX 50 Suspensions
SUSP - 101

Vespa LX 50 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	49.9 cc
Fuel System	Carburetor
Front Brake	200 mm disc
Rear Brake	110 mm drum
Seat Height	785 mm
Fuel Tank Capacity	8.6 liters
Tires Front	110/70 - 11"
Tires Rear	120/70 - 10"
Length	1, 770 mm
Width	705 mm
Cooling System	Air cooled
Transmission	Automatic
Max Power	3.2 kW
Max Torque	4.2 Nm
