Vespa LX 50 Workshop Manual

Inspecting the timing system components
CAUTION
CHECK THE CORRECT REED UNIT SEAL; NO LIGHT
MUST PASS BETWEEN THE SUPPORT AND LAMELLA.

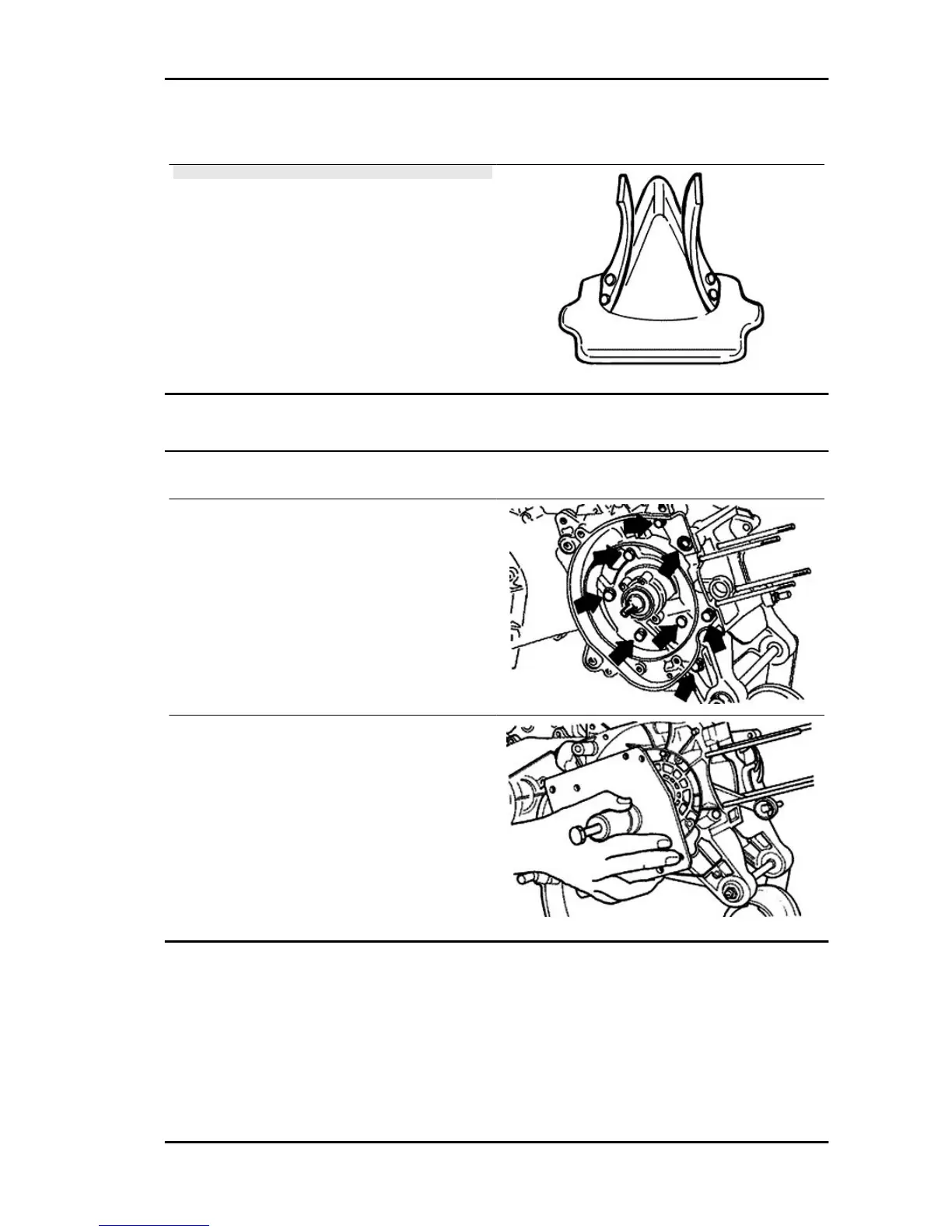

Crankcase - crankshaft
Splitting the crankcase halves
Remove the eight crankcase union fasteners.
Install the special strip on the half crankcase on
the flywheel side and separate the half crankcase
on the flywheel side from the transmission side
Specific tooling
020163Y Crankcase splitting plate
Vespa LX 50 Engine
ENG - 83

Vespa LX 50 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	49.9 cc
Fuel System	Carburetor
Front Brake	200 mm disc
Rear Brake	110 mm drum
Seat Height	785 mm
Fuel Tank Capacity	8.6 liters
Tires Front	110/70 - 11"
Tires Rear	120/70 - 10"
Length	1, 770 mm
Width	705 mm
Cooling System	Air cooled
Transmission	Automatic
Max Power	3.2 kW
Max Torque	4.2 Nm
