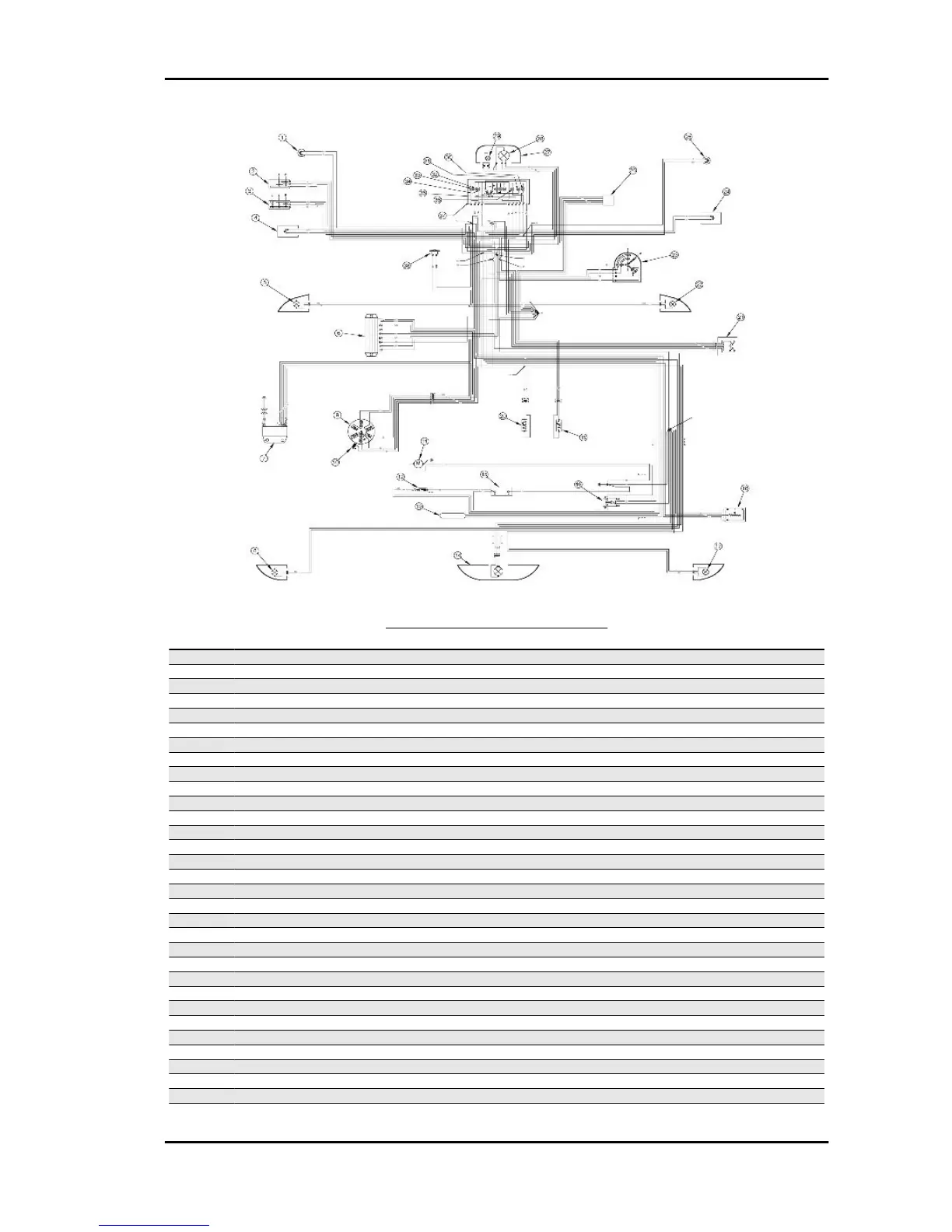

ELECTRICAL COMPONENTS
Specification
Desc./Quantity
1 Rear brake stop button
2 Light switch
3 Turn indicator switch
4 Horn button
5 Front left turn indicator
6 Voltage regulator
7 Electronic ignition device
8 rear left turn indicator
9 Flywheel magneto
10 Pick - up
11 Starter motor
12 7.5A
13 Automatic choke diagnostic light
14 Rear light assembly
15 Battery 12V - 4Ah
16 Start-up remote control switch
17 rear right turn indicator
18 Fuel level sender
19 Heater
20 Automatic starter
21 Oil level sender
22 front right turn indicator
23 Key switch
24 Starter button
25 Front brake stop button
26 Heater control device
27 Headlight assembly
28 Headlight bulb 12V-35/35W
29 Front side light bulb 12V - 5W
30 Right turn indicator warning light
31 Headlamp warning light
32 Low fuel warning light
Vespa LX 50 Electrical system
ELE SYS - 45

Vespa LX 50 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	49.9 cc
Fuel System	Carburetor
Front Brake	200 mm disc
Rear Brake	110 mm drum
Seat Height	785 mm
Fuel Tank Capacity	8.6 liters
Tires Front	110/70 - 11"
Tires Rear	120/70 - 10"
Length	1, 770 mm
Width	705 mm
Cooling System	Air cooled
Transmission	Automatic
Max Power	3.2 kW
Max Torque	4.2 Nm
