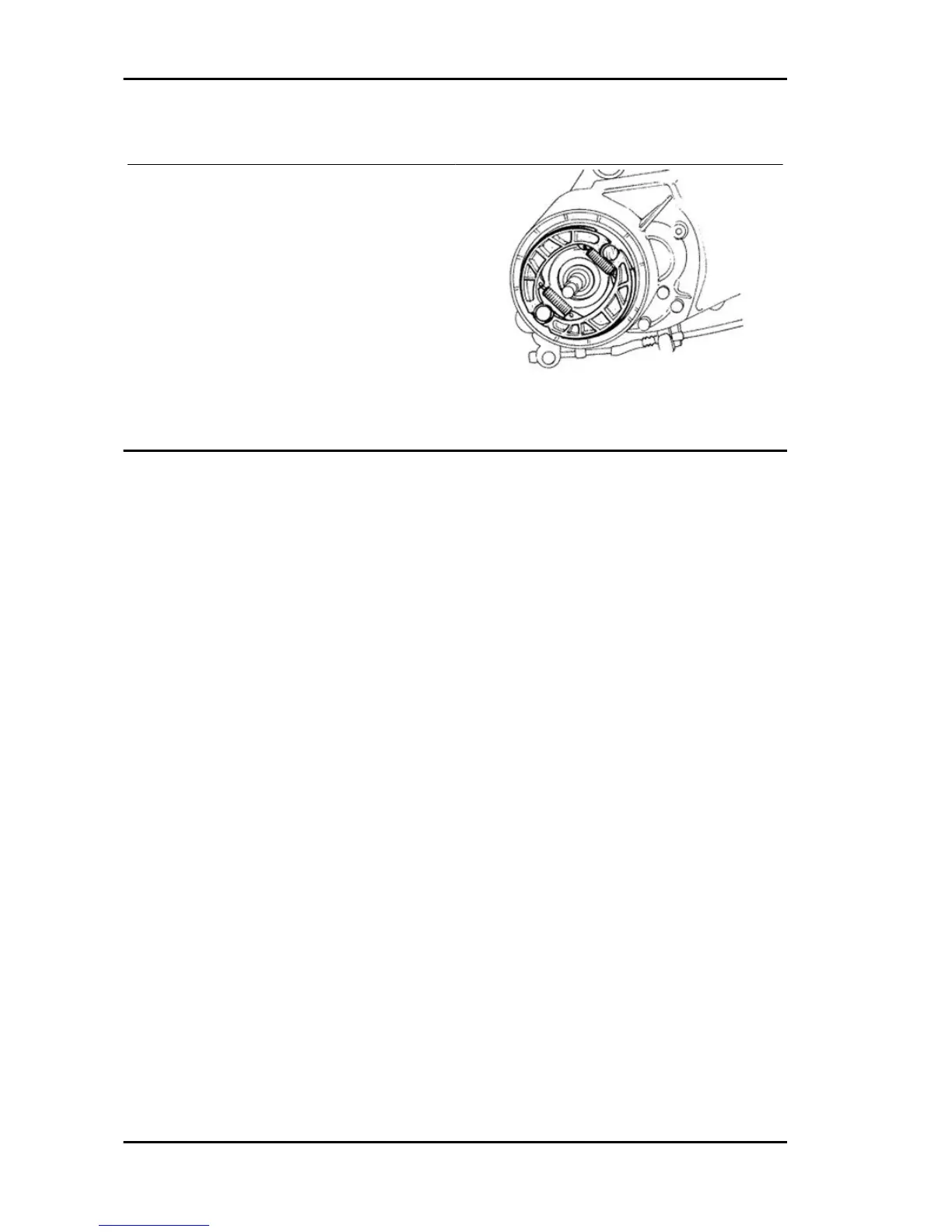

Rear drum brake
Once the muffler and the wheel have been re-
moved, follow these steps:
1.Remove the shoe spring using the specific span-
ner.
2. Remove the shoe with the aid of a lever.
3. Refit the new shoes giving a few taps with the
mallet.
4. Attach the spring using the specific pliers.
Specific tooling
020325Y Pliers for brake-shoe springs
Braking system Vespa LX 50
BRAK SYS - 112
