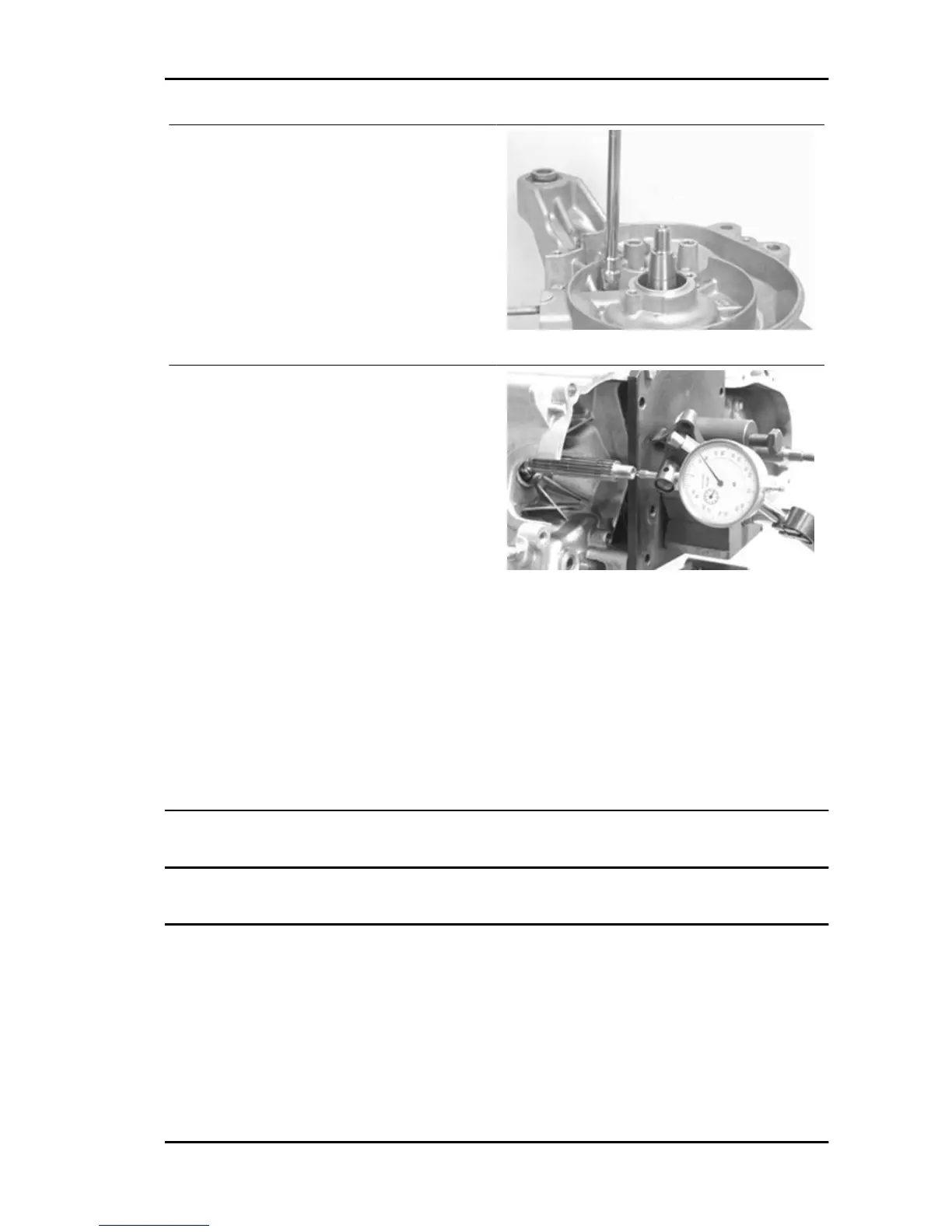

- Keeping the half crankcase on the transmission

side, insert the flywheel side half crankcase with a

clean precise movement

- Insert at least three clamping screws and tighten

up rapidly

- Insert the other 5 screws and tighten them to the

specified torque.

Locking torques (N*m)

crankcase coupling screws 11 - 13

- Move the crankcase separation plate in a position

back from the one indicated in the figure

- Install the special magnetic support with dial

gauge at the end of the crankshaft

- Check the axial clearance of the crankcase

If this is not within the maximum limit allowed, re-

peat the crankcase coupling procedure

Specific tooling

020335Y Magnetic support for dial gauge

Characteristic

Axial clearance with warm crankcase

0.10 ÷ 0.12 mm

Axial clearance with cold crankcase

0.06 to 0.08 mm

Limit value with cold crankcase

0.02 ÷ 0.03 mm

Lubrication

Crankshaft oil seals

Vespa LX 50 Engine

ENG - 87
