Vespa LX 50 Workshop Manual

Specification Desc./Quantity
33 Left turn indicator warning light
34 Oil warning light
35 Dashboard light bulbs Type: Bayonet
Power: 12V 1.2W
Quantity: 3
36 High-beam lamp warning light 12V - 1.2W
37 INSTRUMENT PANEL
38 Horn
R = Red - B = White - Bl = Blue - N = Black - V = Green - Rs = Pink -Mr = Brown - Gr = Grey - Az = Sky
Blue G = Yellow Vi = Purple A = Orange
Conceptual diagrams

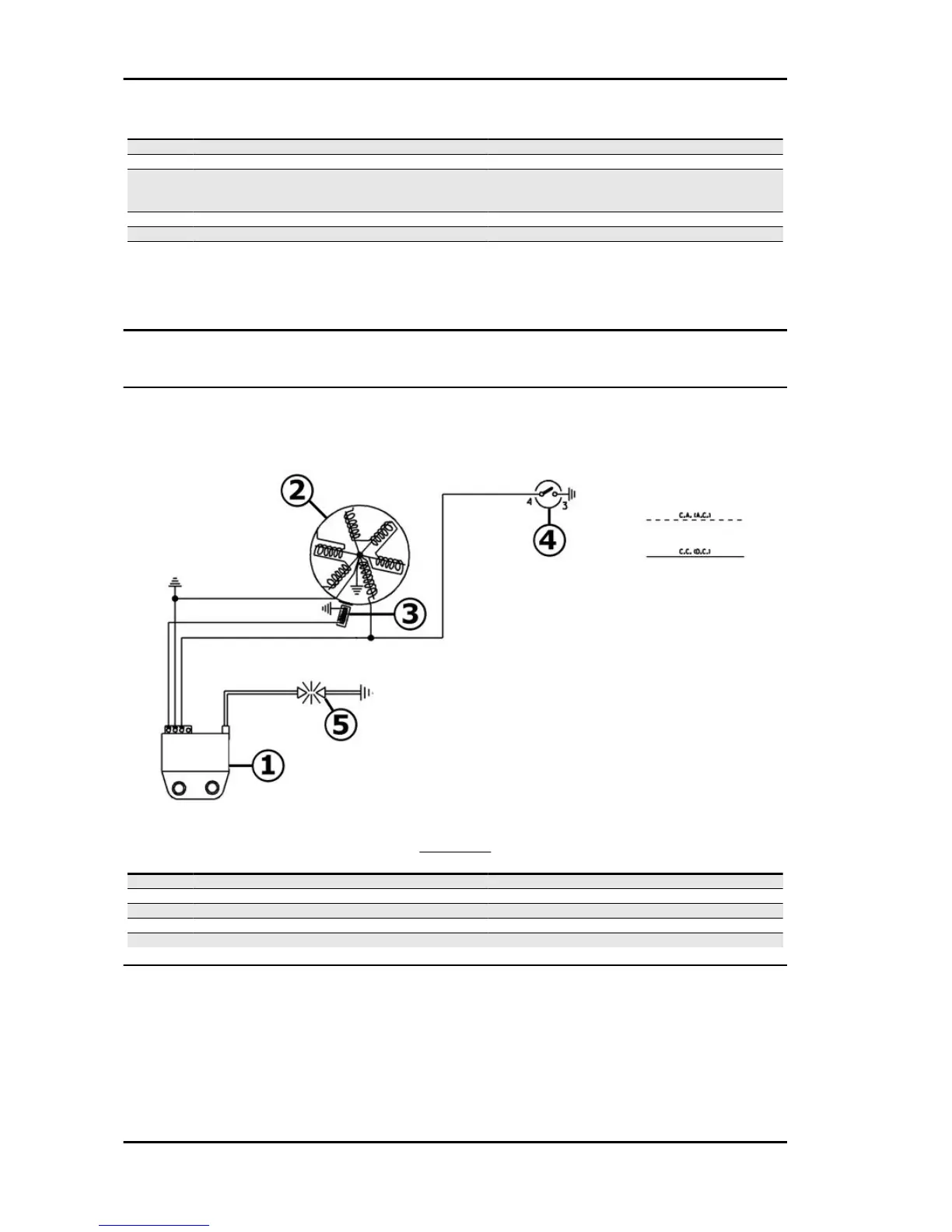

Ignition
IGNITION
Specification
Desc./Quantity
1 Electronic control unit
2 Magneto flywheel
3 Pick - up
4 Key switch
5 Spark plug
Electrical system Vespa LX 50
ELE SYS - 46

Vespa LX 50 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	49.9 cc
Fuel System	Carburetor
Front Brake	200 mm disc
Rear Brake	110 mm drum
Seat Height	785 mm
Fuel Tank Capacity	8.6 liters
Tires Front	110/70 - 11"
Tires Rear	120/70 - 10"
Length	1, 770 mm
Width	705 mm
Cooling System	Air cooled
Transmission	Automatic
Max Power	3.2 kW
Max Torque	4.2 Nm
