M4: 14 mm (
9
/
16
”) M4: 16 mm (
5
/
8
”) M4: 18 mm (
11
/
16
”)
M3: 15 mm (
5
/
8
”) M3: 23 mm (
7
/
8
”) M3: 30 mm (1
3
/
16
”)
α = 0° α = 25° α = 30° α = 35°
α
49
VD00968 VD02061
6 Maintenance

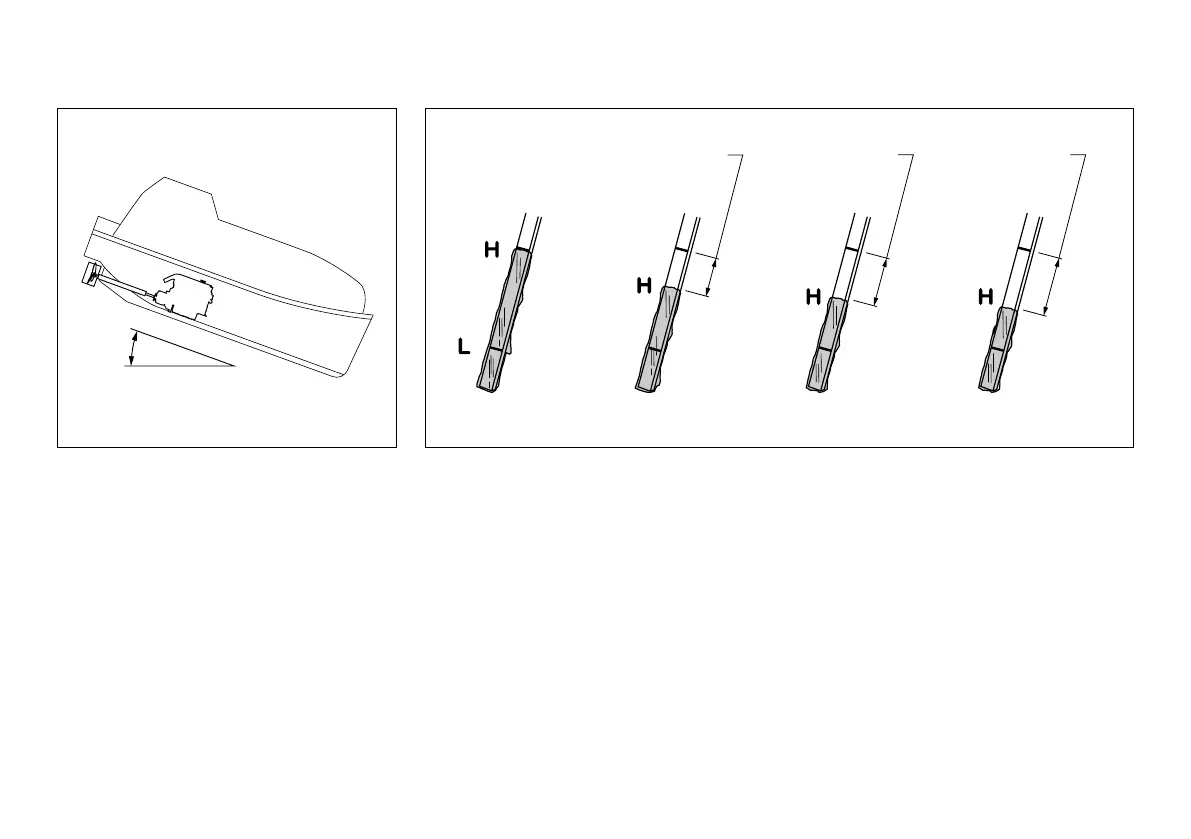

Checking engine oil level
For free-fall life boats.
4 Position of the boat
• Determine the angle on which the boat is
positioned.
.
5 Oil level
The oil level must be at or near the with ‘H’ in-
dicated level on the dipstick
[1]
.
• If necessary top up with the same brand
and type of oil.
