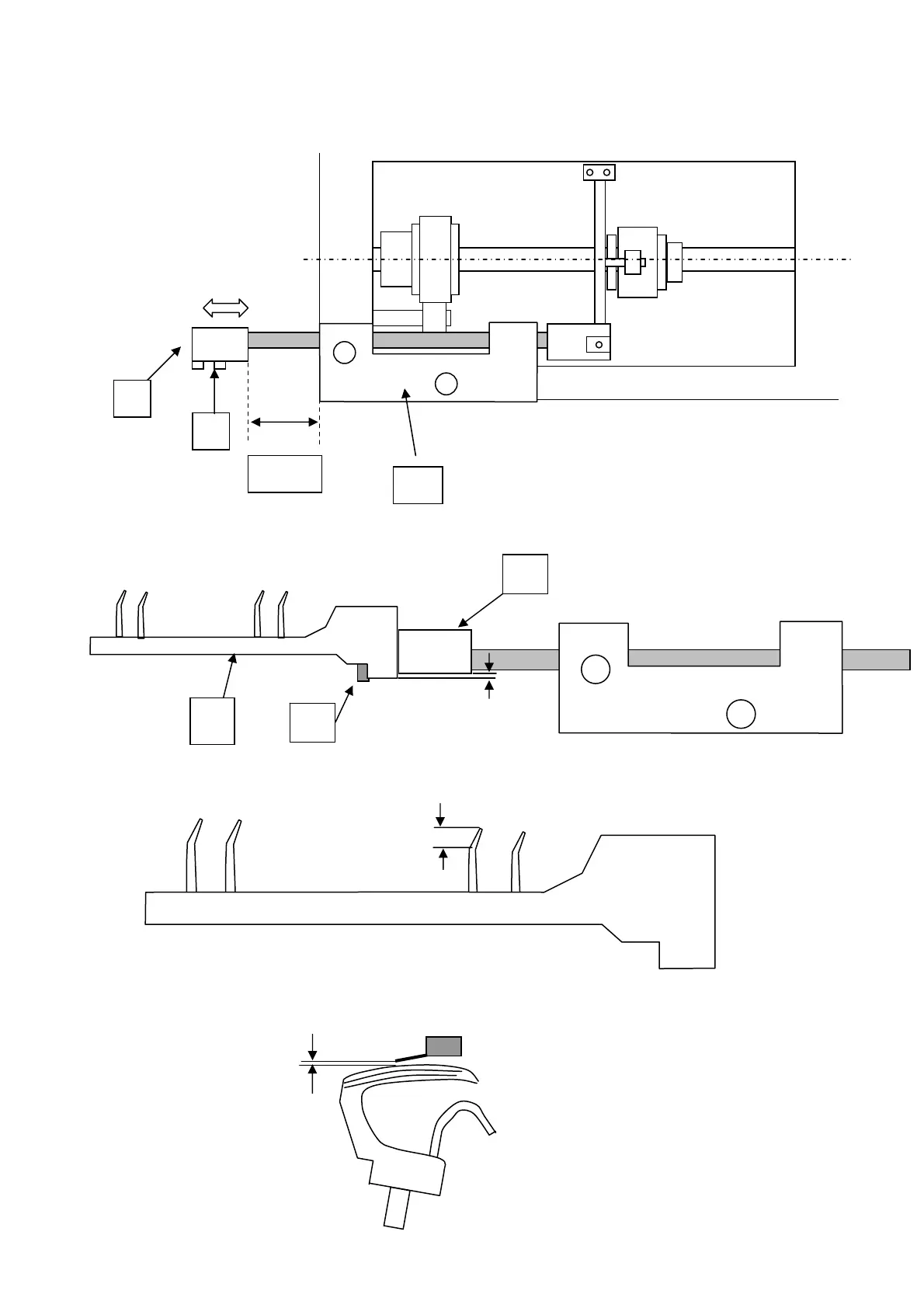

15.8.3 LOOP WIDENING MOVEMENT PIN POSITION
With the loop widening unit as far left as it will go, the distance between the shaft support (A) and the two stirrups at its ends is 5
mm on the right and about 15 mm on the left.
Loosen the two fixture screws (B) on the support (C) in order to adjust it correctly.
15.8.4 LOOP WIDENING UNIT POSITION
The loop-widening unit (A) must be 0.5 mm away from the support (B). In order to make this adjustment, loosen the fixture screw
(C).
0.5 mm
15.8.5 LOOP WIDENING UNIT PIN POSITION
The ends of the four pins should be bent slightly to the right (2 mm) in order to prevent the thread from slipping suddenly during the
unloading phase.
2mm
15.8.6 LOOP WIDENING UNIT PIN HEIGHT
15 mm
A
C
B
A
C
B
When the crochet hook is as far forward as it will go, the distance between the loop-widening pin and the
back of the crochet hook should be 0.5 mm.
0.5 mm
