15.10 TIP LENGTH
The 3022 automatic unit uses a new sewing head which has been specifically developed for this kind of sewing process by
VI.BE.MAC. Spa.

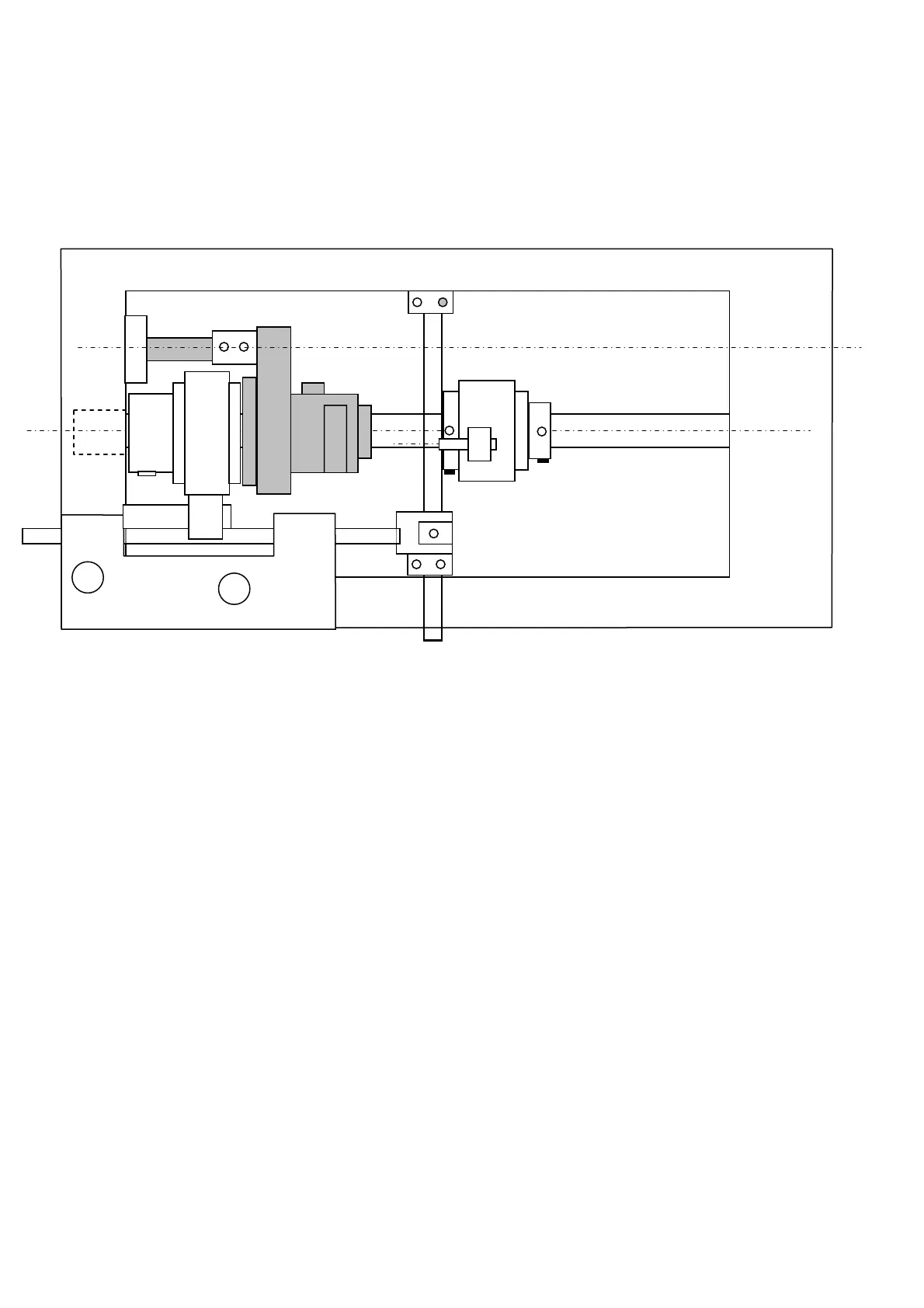

15.10.1 MECHANICAL VERSION
In order to make a change, press the button on the sewing head base and set the clamp movement. For the tip length in the
mechanical version, adjust the needle bar movement on the basis of the assembled tip length.
