VI.BE.MAC.S.p.A. 3022LV
Page 3
1. GENERAL MACHINE SPECIFICATIONS
The Unit VI.BE.MAC. 3022LV is a VIBEMAC sewing head flat base unit with Feed Dog and Needle Feed to sew a waist band to a
trouser piece by piece.
On the unit is install an Auxiliary Pneumatic Puller device drive by ZEROMAX and a special Trim Chain Cutter device makes from
two blades move by two pneumatic cylinders.
The unit utilises a MITSUBISHI XL-CE 554W Servomotor and the follows functions; Chain Cutter, Puller Lifting and Automatic
Sewing Stop Functions are controlled by the Motor Panel FMFY type.
1.1 POWER SUPPLY
The unit operates on a power supply of 220 V single-phase, 50/60 Hertz. It consumes approx. 600 watts.
1.2 WORK STATION

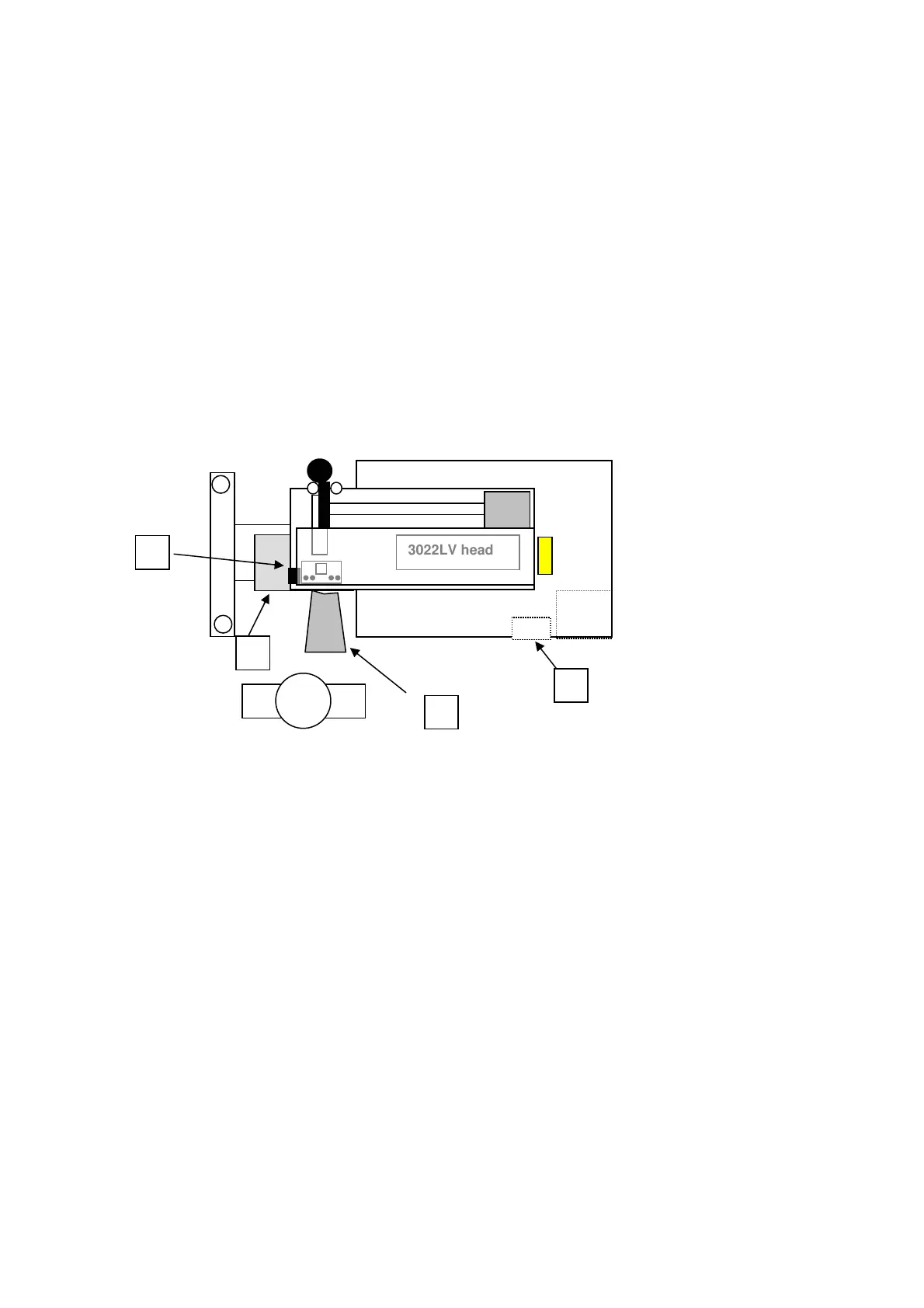

The operator sit in front of the unit’s work surface with:
· The pedal to control the sewing speed near the feet at the base of the standing (1)
· The Folder (2), that folds the waist band is in front.
· the Main Power switch (3) is on the right side under the table near the drawer.
· The Sewing head with Presser Foot and Needles and working area (4) and the Photo Cell in front after the Folder.
1
2
3022LV head
4
3
