Stubble height

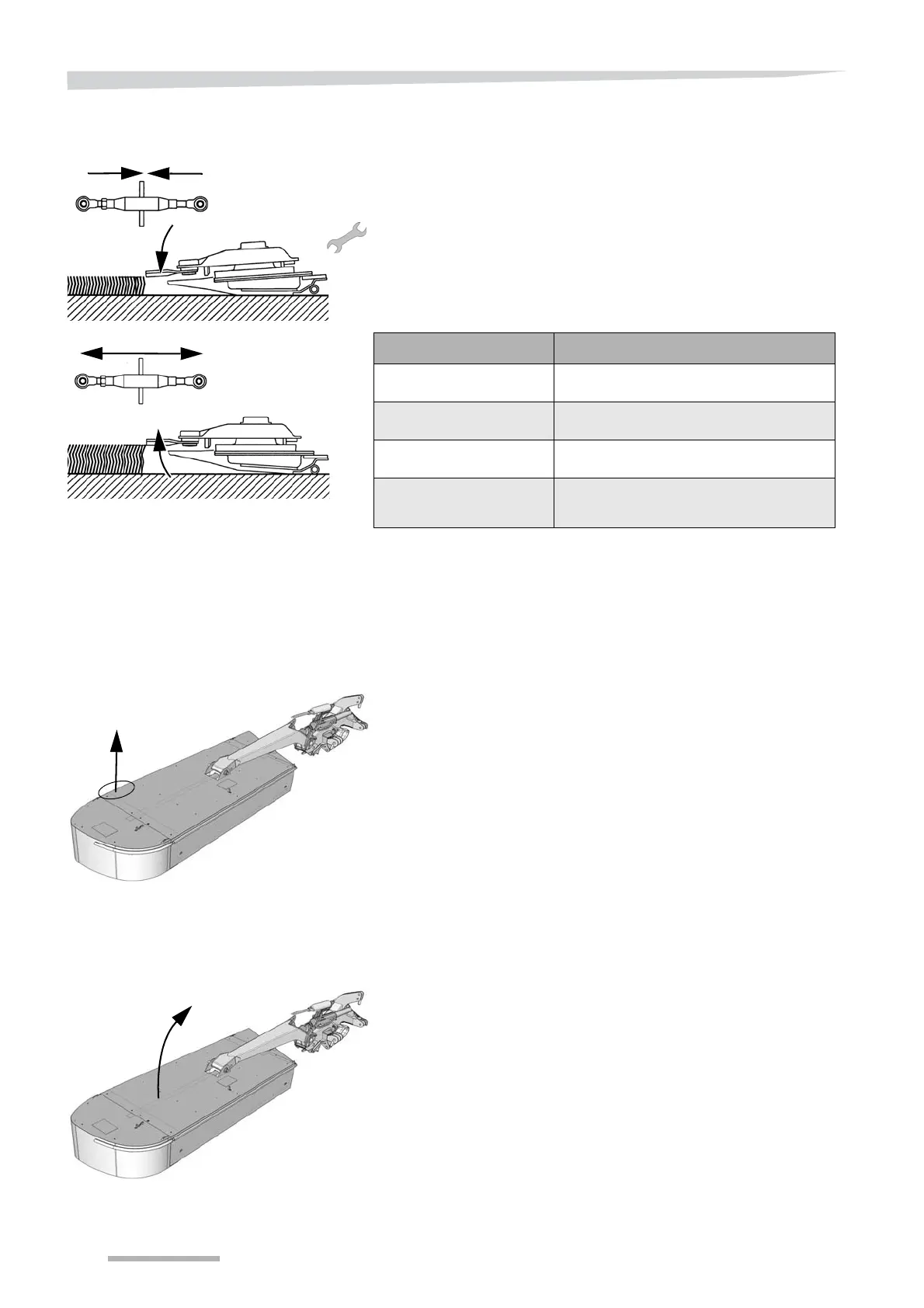

The stubble height is adjusted in the following way:
 Lower the cutting unit to the ground.
 Set the stubble height by adjusting the top link.
• Making the top link shorter reduces the stubble height
• Making the top link longer increases the stubble height.
The stubble height can be combined with fitting high skids* which can
be used to set the stubble height as follows:
* Extra equipment
 »Optional equipment« page 100
Ground pressure
The suspension on the machine's cutting unit should be adjusted so
that the downward pressure on the machine's cutting unit is about 50-
60 kg (110-132 lb).
 Check that the machine's suspension is at the correct height.
 »Adjusting the hitch« page 29
 Check that machine's hydraulic cylinder is in the outermost
position.
 Raise the machine's cutting unit and check how heavy it feels.
 Check that the weight on the cutting unit is around 50-60 kg (110-
132 lb).
The stubble height is adjusted in the following way:
 Activate the tractor's hydraulics and raise the machine's cutting
unit until the springs and chain are no longer tensioned.
Stubble height Note
20 - 50 mm (
3
/
4
” - 2”)
No skids fitted
25 - 70 mm (1” - 2
3
/
4
”) 20 mm (
3
/
4
”) skids* fitted
50 - 100 mm (2” - 4”)
40 mm (1
9
/
16
”) skids* fitted
100 mm (4”)
or more
80 mm (3”) skids* fitted
