Vicon Extra 332 - Bevel Gear - Cutterbar Oil Level Check

Maintenance
64
Bevel gear - cutterbar
Checking the oil level
Every 80 hours of use
The oil level is checked as follows:
 »Maintenance intervals« page 56

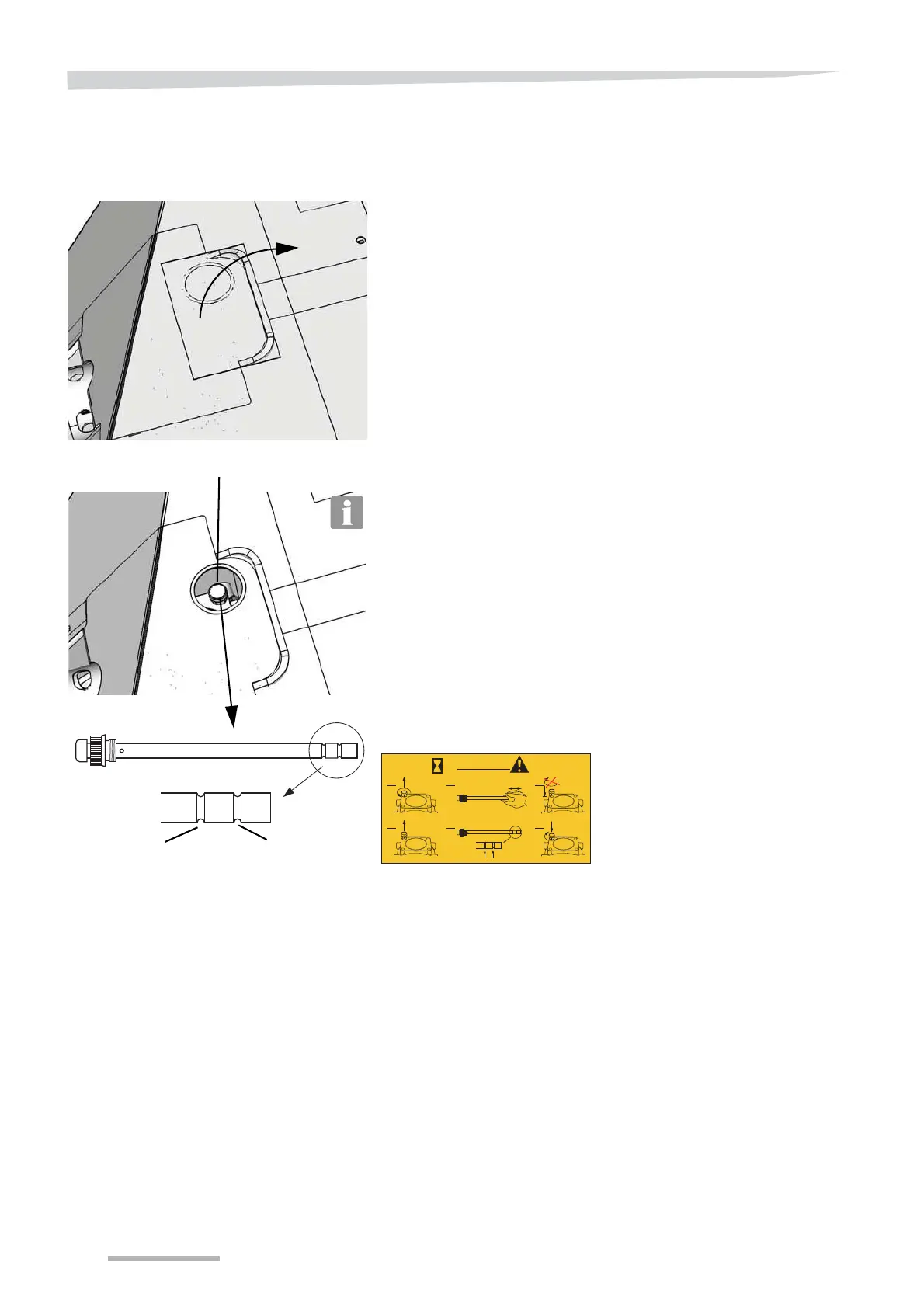

 Lift up the flap.
 Remove the dipstick.
 Check that the oil level is up to the “max.” indication on the dipstick.
The oil level on the main gear must always be between “min.” and
“max.” as shown on the dipstick.
When topping up, do the following:
 Pour the oil through the hole where the dipstick is fitted.
 Follow the instructions on the machine.
 Check that the oil level is up to the “max.” indication on the dipstick.
 Repeat the procedure until the correct oil level is reached.
 »Lubricants« page 109
1. 3.
4. 6.
MAX. MIN.
5.
2.
80
OIL CHECK
KT92665000
Dipstick
Max.
Min.
