Vicon Extra 332 - Page 87

Maintenance
87

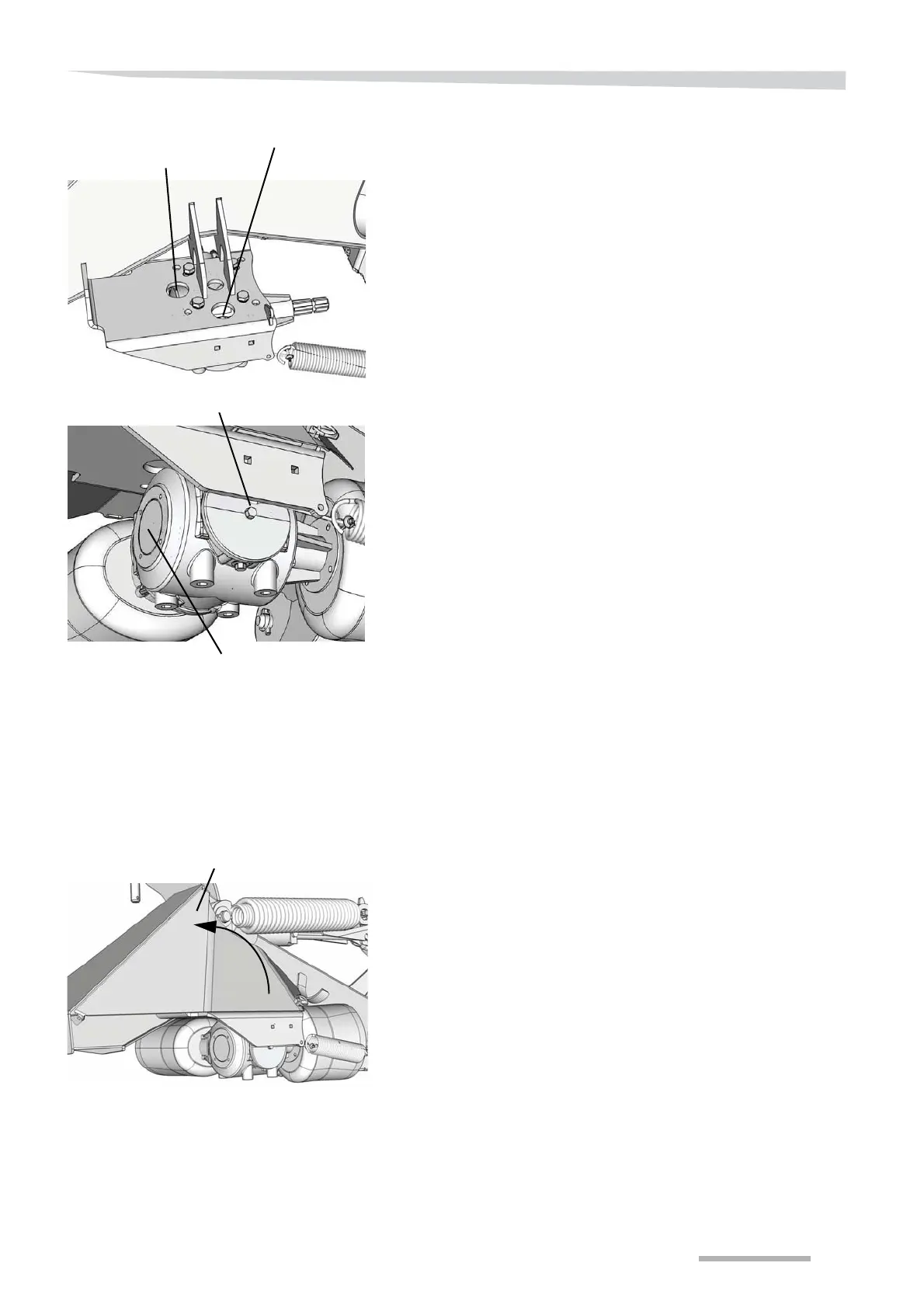

 Remove oilplug 1.
 Fill up with new oil until the oil level reaches the hole (oilplug 2).
 »Lubricants« page 109
 Fit oilplugs 1 and 2 and tighten them.
 Close the guard.
Oilplug 1 (1000 rpm)
Oilplug 2
For tractor PTO outlets with a rotational speed of
540 rpm, oilplug 2 will be located here.
Oilplug 1 (540 rpm)
Guard
