5.18 Sony DVR
5.18.1 Description
The Sony HSR-X216P digital video recorder can be used to connect 16 input videos which are digitalized and
then recorded in digital format.
5.18.2 Materials and reference documents
Sony HSR-X216P digital video recorder
Video recorder manual
Security Serial Protocol Ver 1.11.2, issued on November 28, 2002.

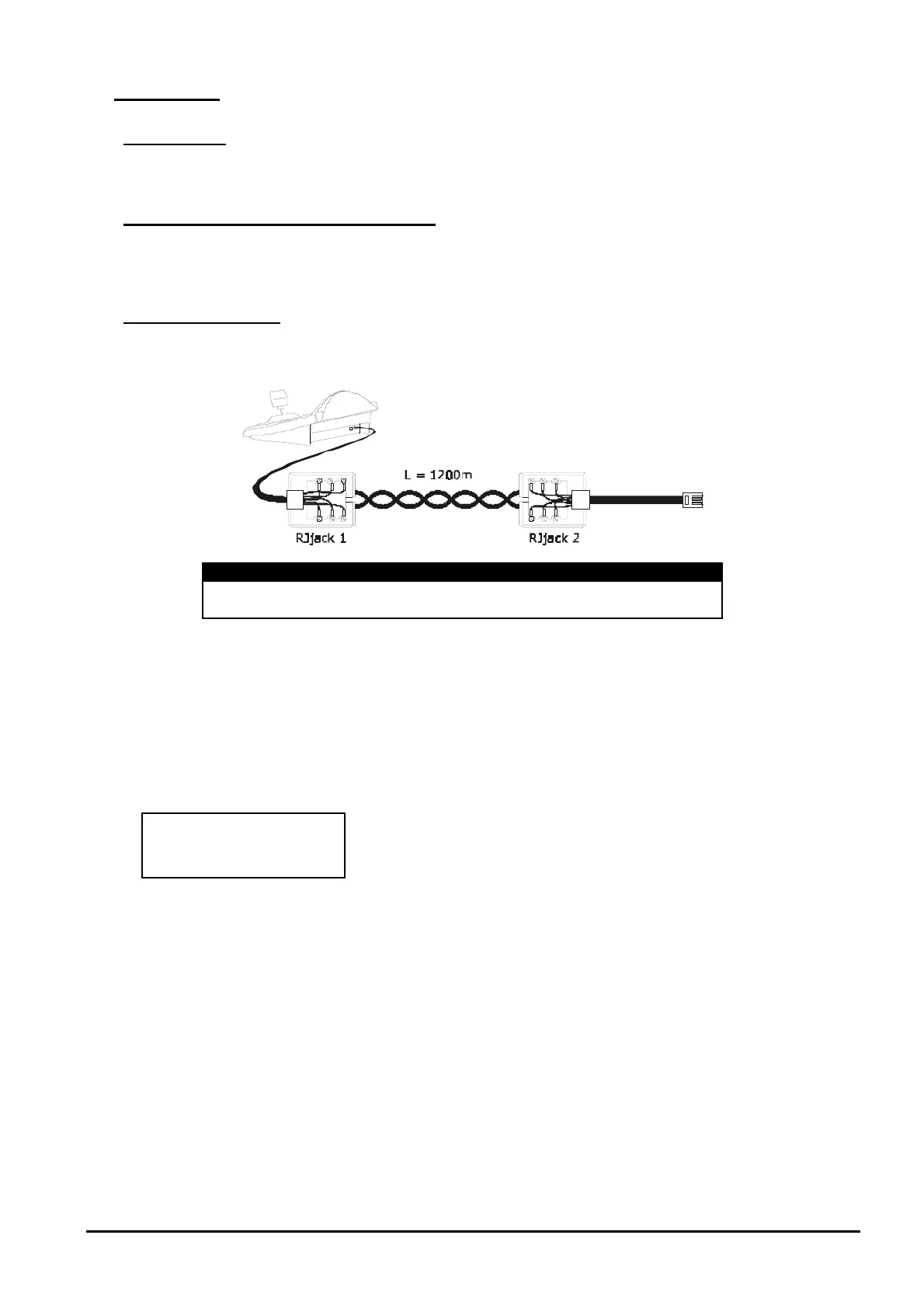

5.18.3 Direct connection
5.18.3.1 Cable
DCJ RJjack 1 RJjack 2 DVR
RS485A white red RS485A
RS485B yellow green RS485B
The co
nnection is in RS485. The max. distance between keyboard and DVR is 1200 metres.
5.18.3.2 Setting up the DVR
Configure the unit address and the RS485 communication mode appropriately. See the corresponding user’s
manual.
5.18.3.3 Setting up the keyboard
When configuring the keyboard, the submenu should be set up as follows:
Sony DVR control
Four baud rate values are possible.
5.18.3.4 Operational test
When the keyboard is connected directly with the multiplexer configured as above, using the cable as shown
above, it should be immediately possible to switch the input videos:
press to select multiplexer unit 1
press , , to select the input videos.
For ea
ch command sent by the keyboard, a corresponding LED lights up on the local multiplexer keyboard.
Important!! If the multiplexer unit number does not match, the commands sent by the keyboard
will be
ignored.
