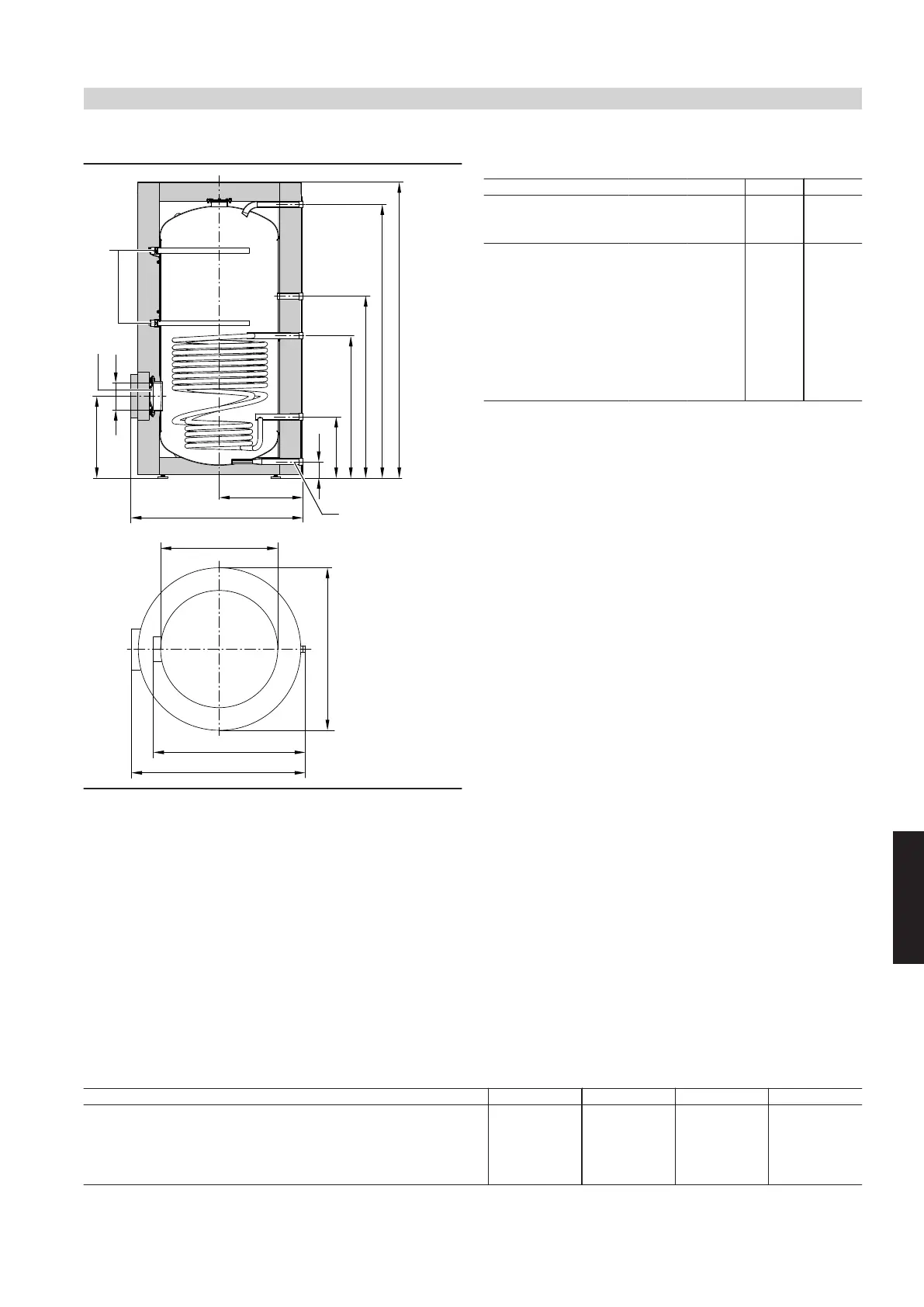

Vitocell 100-V, type CVAA, 750 and 950 l capacity
k
b
m
l
BÖ
VA
c
d
e
f
g
h
HR
WW
Z
HV/SPR
KW/E
o
a
b
n
BÖ Inspection and cleaning aperture
E Drain
HR Heating water return
HV Heating water flow
KW Cold water
SPR Clamping system for fixing immersion temperature sensors to
the cylinder jacket. Fixing points for 3 immersion temperature
sensors per clamping system
VA Protective magnesium anode
WW DHW
Z DHW circulation
Dimensions
Cylinder capacity l 750 950
Length (7)
a mm 1062 1062
Width b mm 1110 1110
Height c mm 1897 2197
d mm 1788 2094
e mm 1179 1283
f mm 916 989
g mm 377 369
h mm 79 79
k mm 555 555
l mm
7 180 7 180
m mm 513 502
Excl. thermal insulation n mm 1005 1005
Excl. thermal insulation o mm
7 790 7 790
Performance factor N
L
■ To DIN 4708.
■ Cylinder storage temperature T
cyl
= cold water inlet temperature +
50 K
+5 K/-0 K
Cylinder capacity l 300 500 750 950
Performance factor N
L
at heating water flow temperature
90 °C 9.7 21.0 38.0 44.0
80 °C 9.3 19.0 32.0 42.0
70 °C 8.7 16.5 25.0 39.0
