Viessmann VITOCAL Series - Vitocell 100-B, type CVBB, 750 and 950 l capacity

Vitocell 100-B, type CVBB, 750 and 950 l capacity
HVs/SPR2
m
n
l
k
h
g
f
e
d
b
a
WW
HV/SPR1
Z
HR
HRs
VA
ELH/R
ELH/R
KW/E
Ø 180
555
Ø 180
Ø 790
999
c
SPR1/SPR2
TH
E Drain outlet
ELH Immersion heater or heating lance
HR Heating water return
HR
s
Heating water return, solar thermal system
HV Heating water flow
HV
s
Heating water flow, solar thermal system
KW Cold water
R Inspection and cleaning aperture with flange cover
SPR1 Clamping system for securing immersion temperature sen-
sors to the cylinder jacket (up to 3 immersion temperature
sensors)
SPR2 Clamping system for securing immersion temperature sen-
sors to the cylinder jacket (up to 3 immersion temperature
sensors)
TH Thermometers (accessories)
VA Protective magnesium anode
WW DHW
Z DHW circulation

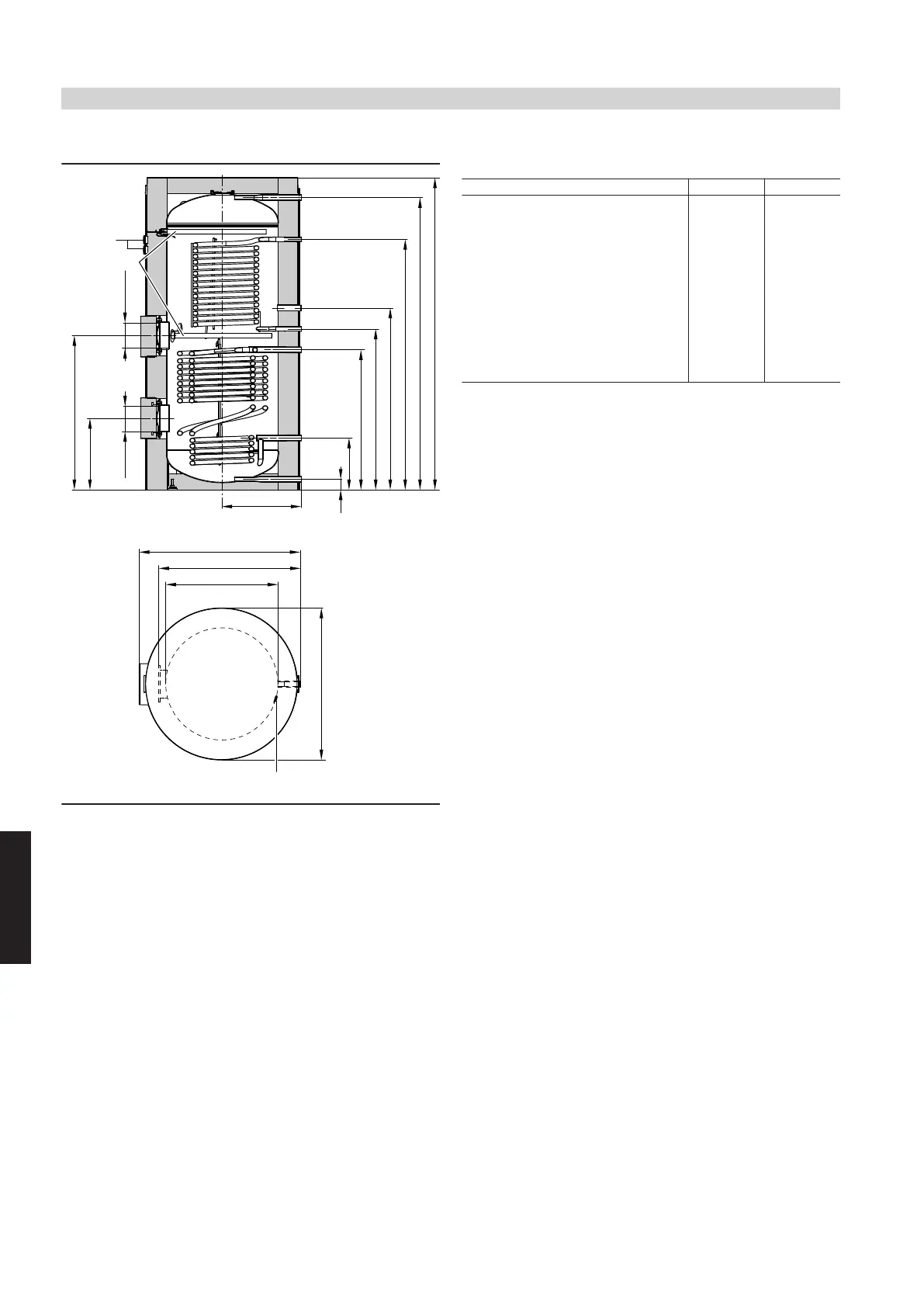

Dimensions
Cylinder capacity l 750 950
a mm 1062 1062
b mm 1110 1110
c mm 1897 2197
d mm 1749 2054
e mm 1464 1760
f mm 1175 1278
g mm 1044 1130
h mm 912 983
k mm 373 363
l mm 74 73
m mm 975 1084
n mm 509 501
