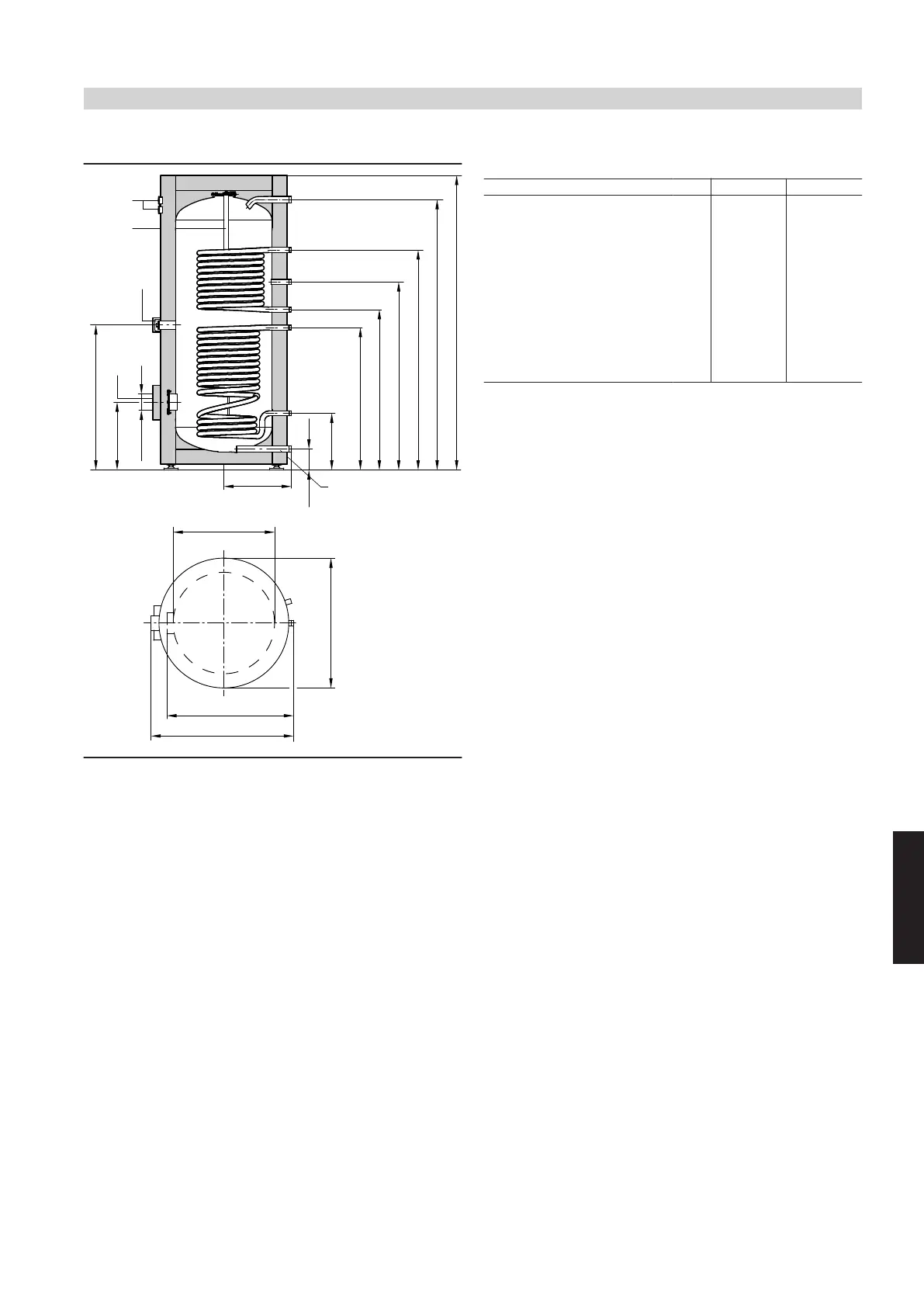

Vitocell 100-B, type CVB, 400 and 500 l capacity
k
g
Ø 100
l
455
h
f
i
e
d
c
Ø 650
a
b
881
m
VA
ELH
TH
R
WW
Z
HV/SPR1
HRs
HVs/SPR2
HR
KW/E
SPR1/
SPR2
E Drain outlet
ELH Immersion heater
HR Heating water return
HR
s
Heating water return, solar thermal system
HV Heating water flow
HV
s
Heating water flow, solar thermal system
KW Cold water
R Inspection and cleaning aperture with flange cover (also suit-
able for installation of an immersion heater)
SPR1 Cylinder temperature sensor for cylinder temperature control-
ler (internal diameter 16 mm)
SPR2 Temperature sensors/thermometers (internal diameter
16 mm)
TH Thermometers (accessories)
VA Protective magnesium anode
WW DHW
Z DHW circulation
Dimensions
Cylinder capacity l 400 500
a mm 859 859
b mm 923 923
c mm 1624 1948
d mm 1458 1784
e mm 1204 1444
f mm 1044 1230
g mm 924 1044
h mm 804 924
i mm 349 349
k mm 107 107
l mm 422 422
m mm 864 984
