Viessmann VITOCAL Series - Vitocell 100-B, type CVBB, 300 l capacity

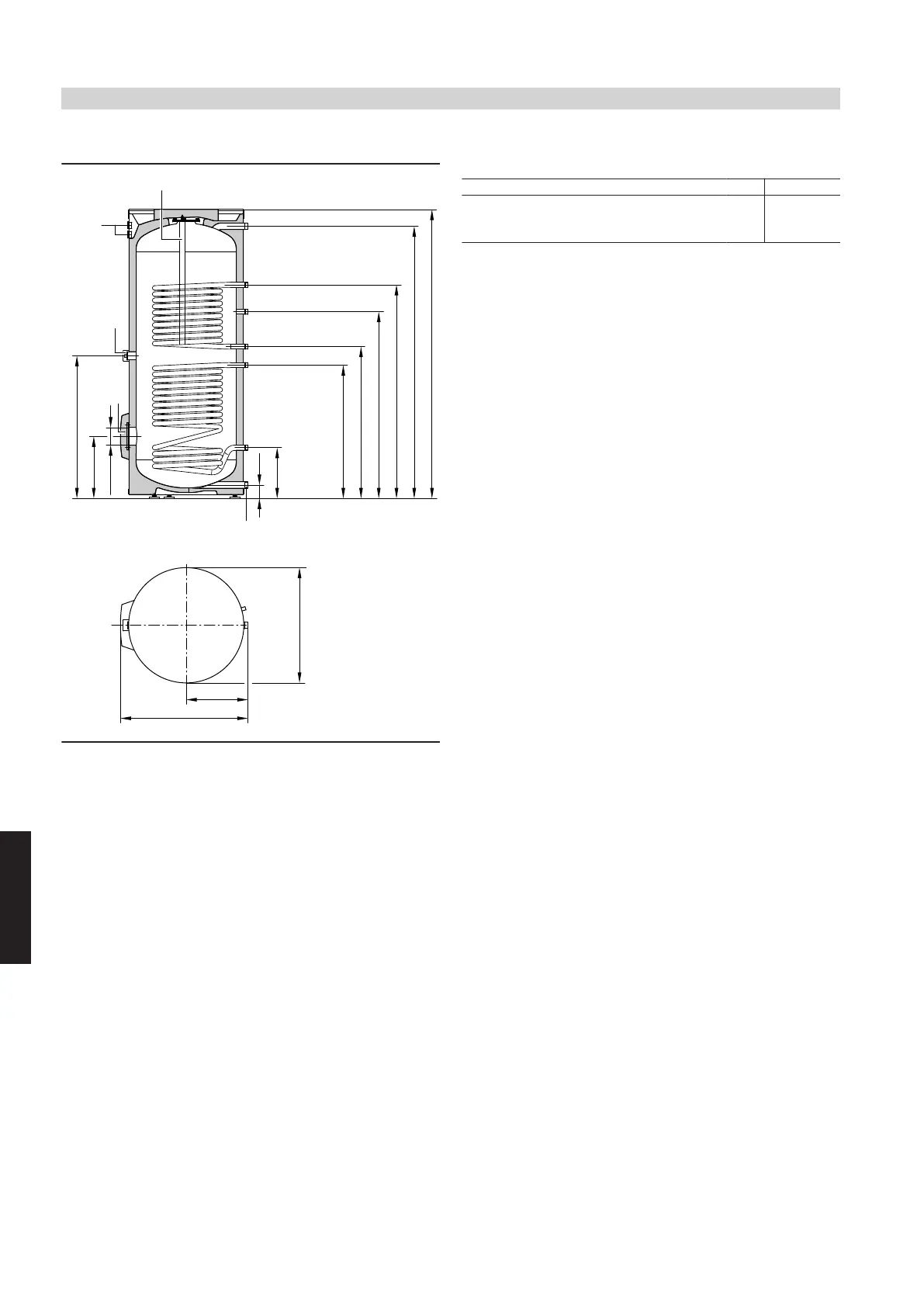

Vitocell 100-B, type CVBB, 300 l capacity
VA
361
b
a
c
1600
1355
1115
995
875
260
76
333
935
WW
HV/SPR1
Z
HR
HVs/SPR2
TH
R
ELH
KW/E
HRs
Ø 100
SPR1/
SPR2
E Drain outlet
ELH Immersion heater
HR Heating water return
HR
s
Heating water return, solar thermal system
HV Heating water flow
HV
s
Heating water flow, solar thermal system
KW Cold water
R Inspection and cleaning aperture with flange cover (also suit-
able for installation of an immersion heater)
SPR1 Cylinder temperature sensor for cylinder temperature control-
ler (internal diameter 16 mm)
SPR2 Temperature sensors/thermometers (internal diameter
16 mm)
TH Thermometers (accessories)
VA Protective magnesium anode
WW DHW
Z DHW circulation
Dimensions
Cylinder capacity l 300
a mm 667
b mm 744
c mm 1734
Installation accessories
(cont.)
84
