Viessmann VITOCELL 100-U - Connection on the DHW Side of Cylinder Banks with Vitocell 300-H

G
Shut-off valve
H
Flow regulating valve
K
Pressure gauge connection
L
Non-return valve
M
Drain
N
Cold water
O
Drinking water filter
P
Pressure reducer
R
Non-return valve/pipe separator
S
Diaphragm expansion vessel, suitable for DHW
Note
■
Safety valve F must be installed.
■ Recommendation: Install the safety valve higher than the top edge
of the cylinder. This protects the valve against contamination, scaling
and high temperatures. It also means that the DHW cylinder does
not need to be drained when working on the safety valve.
■ Observe information on the safety valve on page 29.

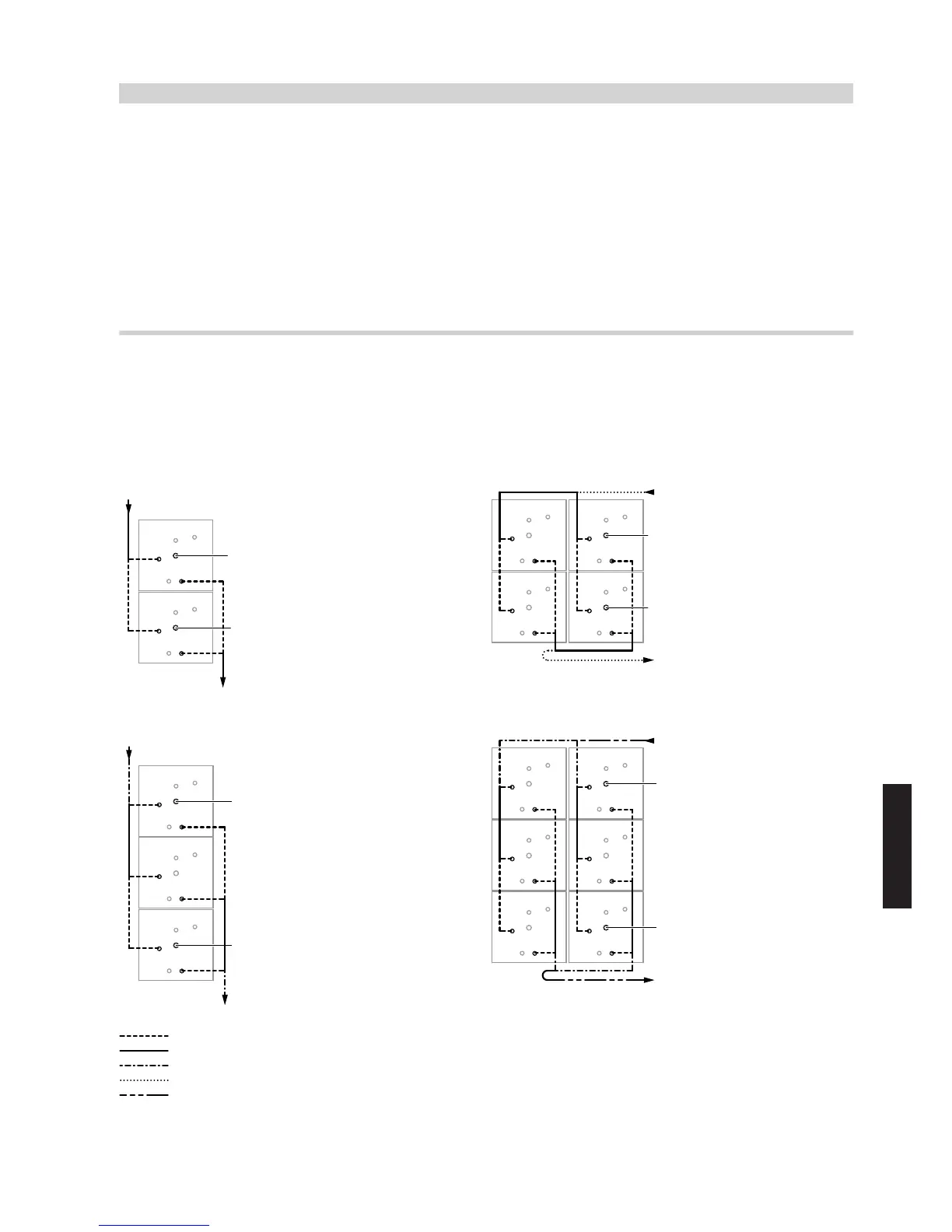

Connection on the DHW side of cylinder banks with Vitocell 300-H
Note
■ Observe stacking height:
Vitocell 300-H, 350 l: max. 2 pce
Vitocell 300-H, 500 l: max. 3 pce
■ Observe the cross-sections of DHW connecting pipes.
700 and 1000 l (two cylinders)
STB
TR
HV
HR
2 x 700 l and 2 x 1000 l (2 x two cylinders)
HR
STB
TR
HV
1500 l (three cylinders)
HR
HV
STB
TR
2 x 1500 l (2 x three cylinders)
HV
STB
HV
TR
DN 32
DN 50
DN 80
DN 100
DN 125
HR Heating water return
HV Heating water flow
STB High limit safety cut-out (if required)
TR Temperature controller
Installation — DHW cylinders
(cont.)
DHW heating
