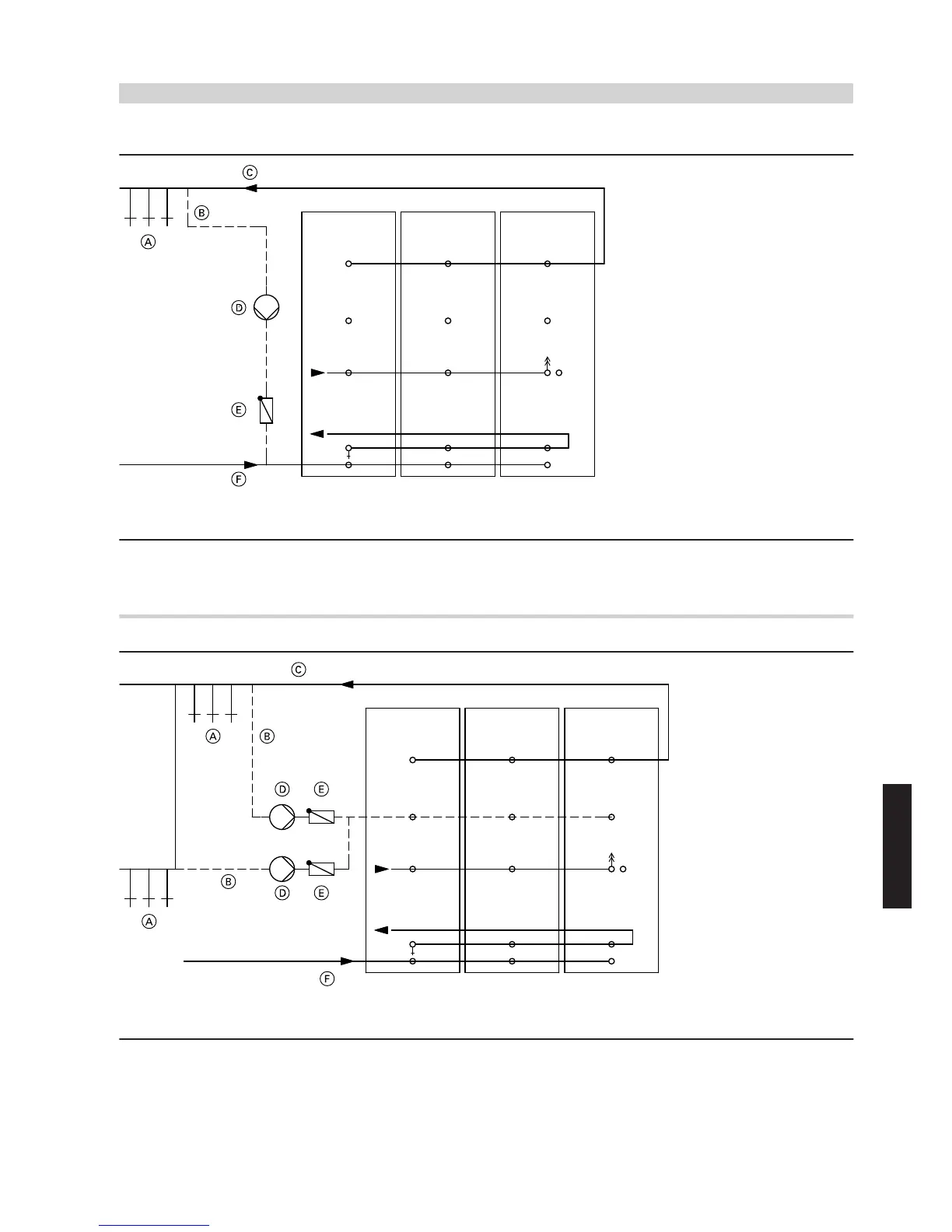

Installing the Vitocell 100-V and 300-V as a cylinder bank
Connection in conjunction with a district heating system without return temperature limit or in conjunction with boilers (low temperature operation)
and a simple DHW circulation pipe
A
Draw-off points
B
DHW circulation pipe
C
DHW
D
DHW circulation pump
E
Check valve
F
Cold water
Installing the Vitocell 100-V and 300-V as a cylinder bank
Connection in conjunction with condensing boilers or district heating systems without return temperature limit and systems with branched DHW
circulation networks
A
Draw-off points
B
DHW circulation pipe
C
DHW
D
DHW circulation pump
E
Check valve
F
Cold water
Installation — DHW cylinders
(cont.)
