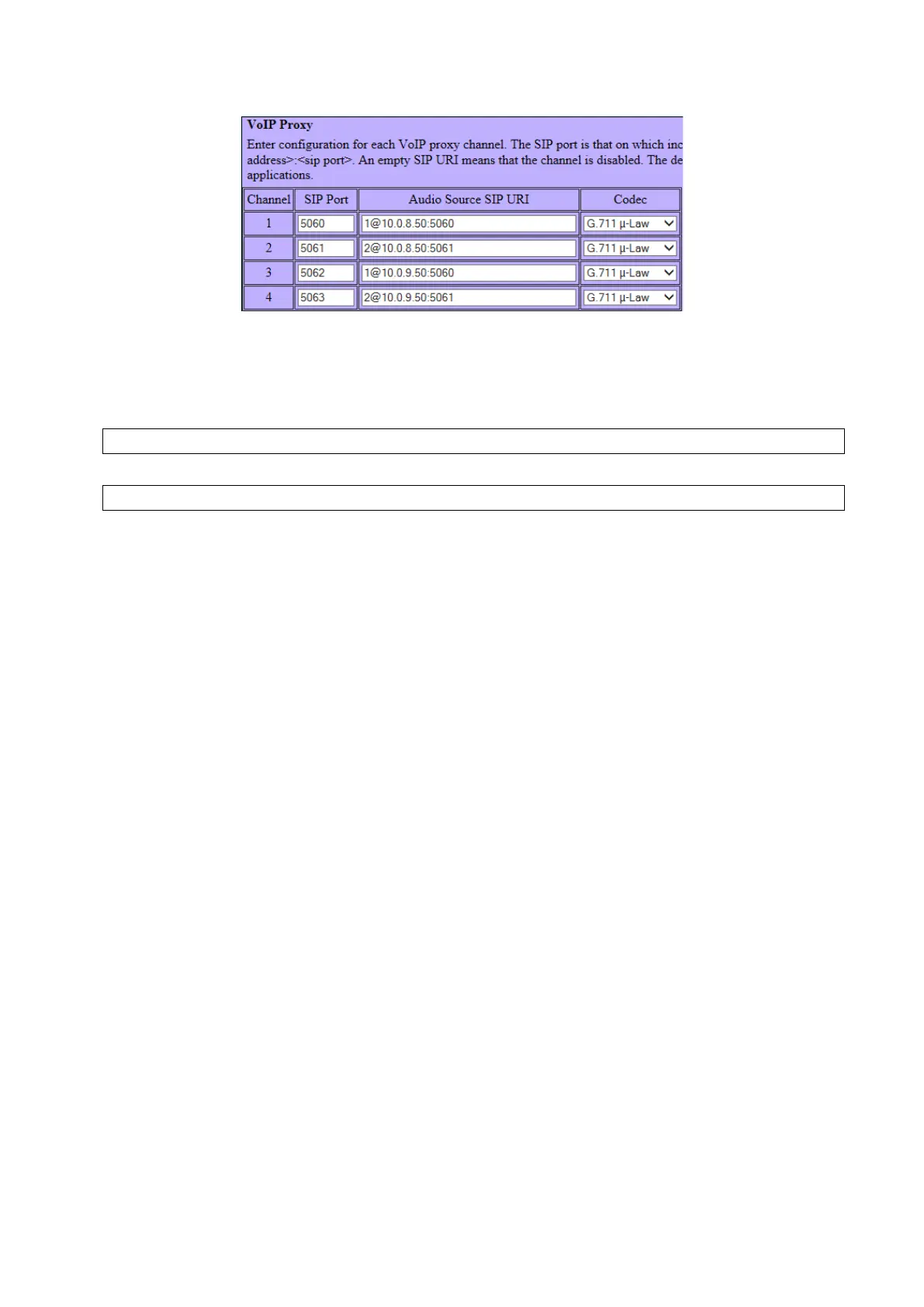

ATAs at the amp racks, SIDs 21 and 22, need a dial plan to reach the PIB at
the MECP, SID 50, on channels 3 and 4 and using the correct UDP port for BGM
and Paging audio respectively.
For Line 1:
(<:3@10.0.1.>[0-8]x<::5062>)
For Line 2:
(<:4@10.0.1.>[0-8]x<::5063>)
The MECP SID 50 needs scripting to enable VIF #1 to answer calls on both the PA
and WIP lines when they are received for BGM and paging. The following logic can
be included in the Init Script table, as nothing needs to change once it is set up.
VC1PA1=1
VC1WA1=1
The amp racks, SIDs 21 and 22, need scripts to activate calls on their VIF #1 PA and
WIP lines to the relevant PIB VoIP Proxy ports at SID 50. Again, these can be placed
in the Init Script table, as they don’t need to change once set up. If there were
changing sources of BGM or paging, then the scripts would need to be dynamic and
be included in the Main Script table.
VC1P50=1
VC1W50=1
