System Diagnosis
©2012 Viking Preferred Service 11

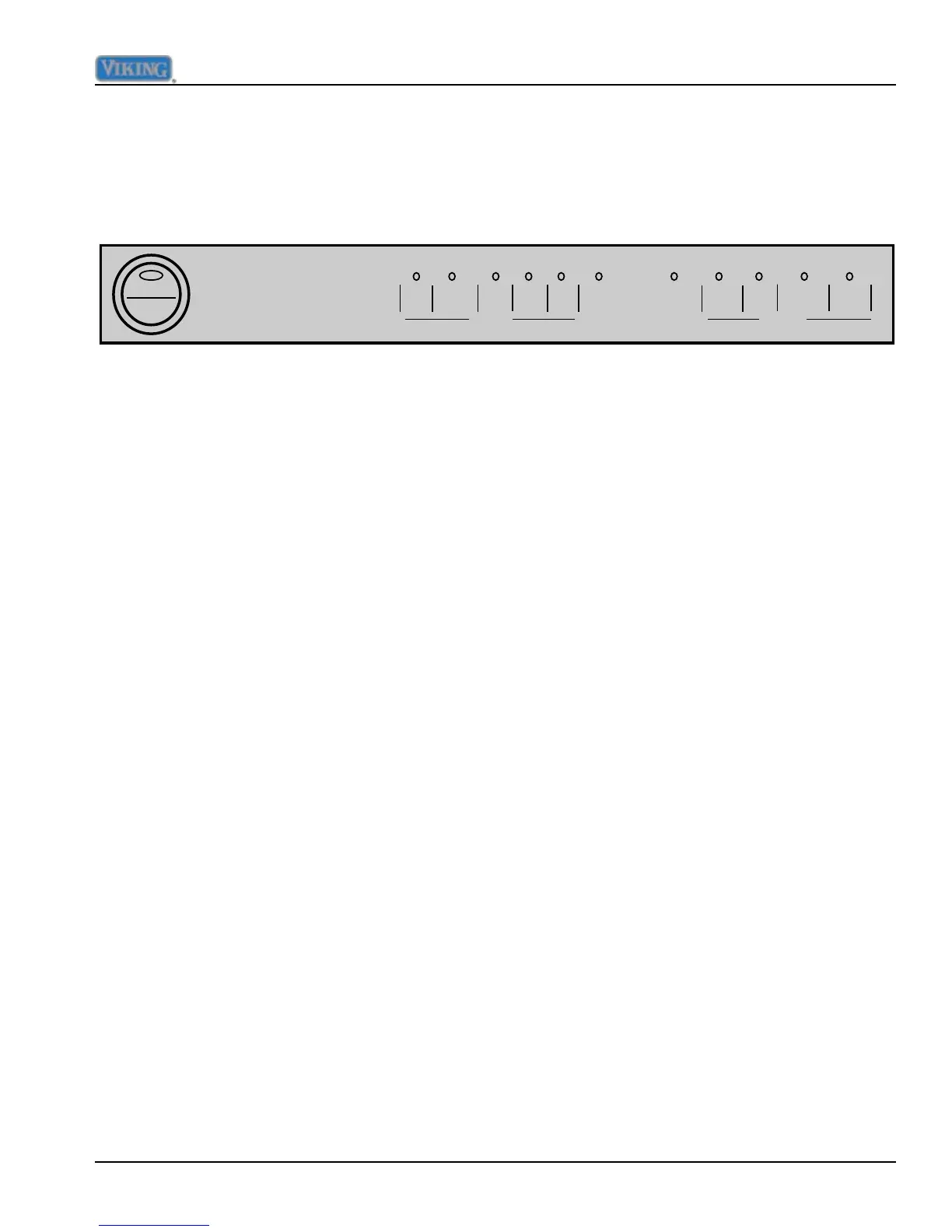

Entering Diagnostic Mode
To enter the Diagnostic mode, press the left most program button ve times and then
immediately press the START” button, within 6 seconds. The unit will beep, and ash all LED's
three times. Close door to begin the Service cycle. To exit this mode before completion, hold
"START" key for three seconds.
1. Drains for 85 Seconds 5 Seconds On–5 Seconds Off–30 Seconds On–5 Seconds Off–40
Seconds On.
The test cycle will run approximately 6-1/2 minutes and will run each component individually.
Be sure to close the soap dispenser cup as this function will also be energized opening up
the cup.
2. Fills for 75 seconds.
3. Activates soap dispenser and wash arm diverter sets (duration varies).
4. Circulates top wash arm with heat for 40 seconds.
Note: Heater does not activate until the motor check is complete (16 seconds after motor
starts).
5. Water level check and wash arm diverter sets (duration varies).
6. Circulate lower wash arm with heat for 10 seconds.
7. Water level check and wash arm diverter sets (duration varies).
8. Circulate (lter clean) for 10 seconds.
9. Drains for 85 Seconds.
5 Seconds On–5 Seconds Off–30 Seconds On–5 Seconds Off–40 Seconds On
11. When complete, you will hear two long beeps approximately ten seconds after the drain
cycle stops. This is the indication that the test cycle has completed.
Note: During this test cycle, if the control board senses a failure that it is
programmed to monitor, it will display an error code.
10. Vent wax motor and blower motor energize for 10 seconds.
