Viking FDB451 - Door Hinge Disassembly

To avoid risk of electrical shock, personal injury, or death, disconnect electrical power source to unit, unless test
procedures require power to be connected. Discharge capacitor through a resistor before attempting to service.
Ensure all ground wires are connected before certifying unit as repaired and/or operational.
WARNING!
Disassembly
©2012 Viking Preferred Service 21

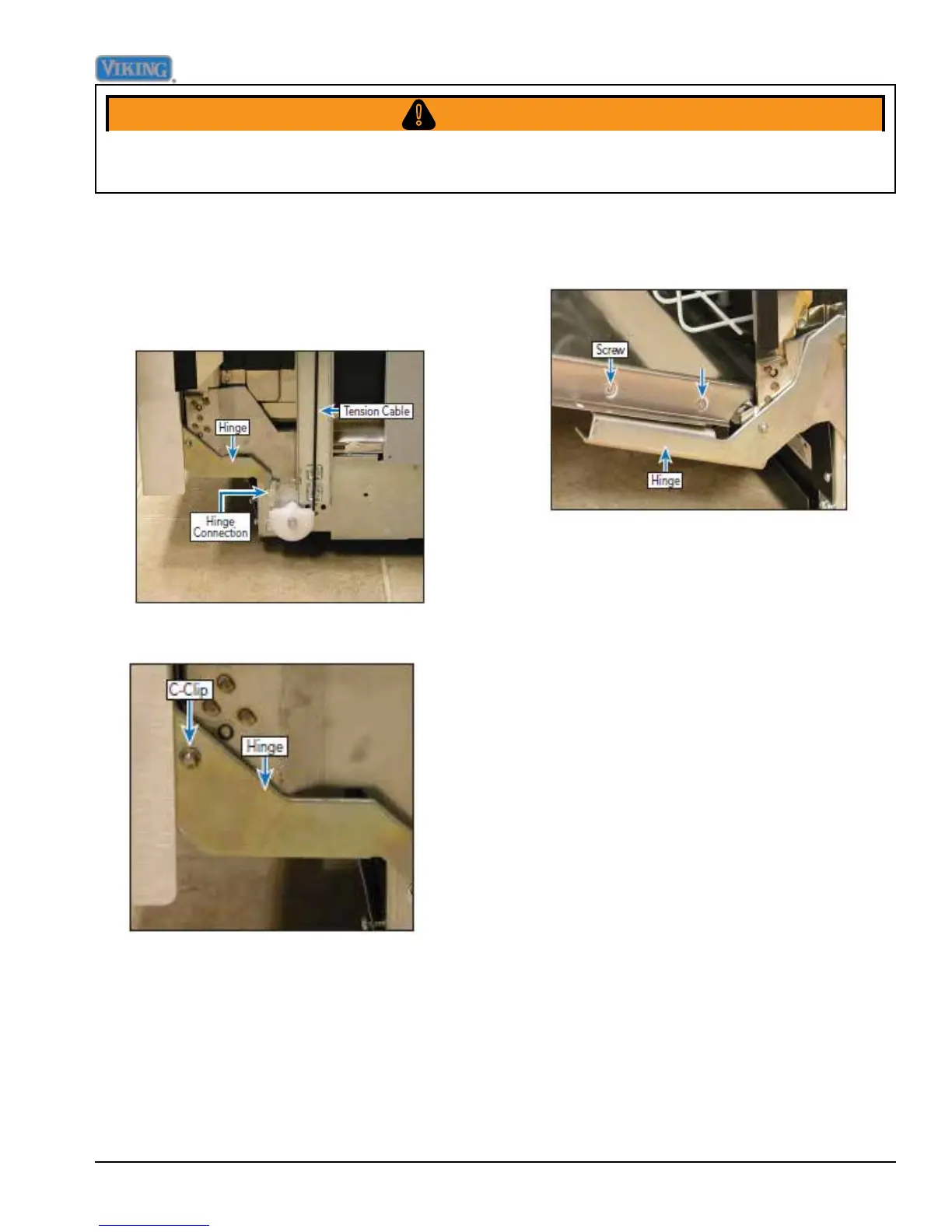

Door Hinge Disassembly
To access door hinge, slide unit out of the
installation. Next remove the outer door panel
(see Outer Door Removal section, Page 15.).
Disconnect tension cable from hinge.
Remove C-Clip securing hinge.
Note: Remove C-Clip slowly (clip has spring
and can dislodge).
Remove two screws that hold each hinge to
the inner door. Repair or replace the hinge as
necessary.
Reverse the procedure to reinstall the hinge.
