Dry System
1
3
2

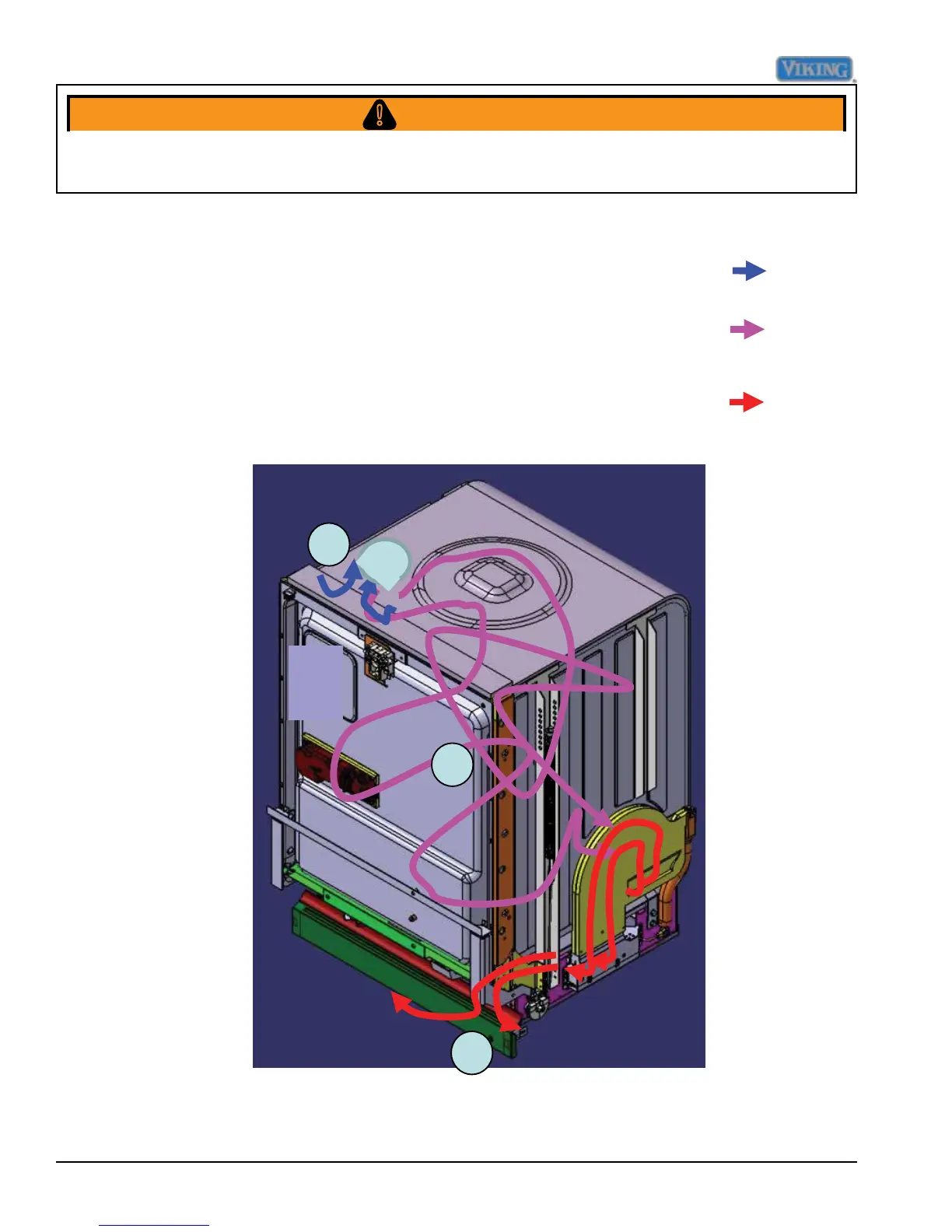

1. Cold Air enters through the top vent to the
dishwasher from inside the surrounding cabinet
2. Cold air enters to the dishwasher and runs though the
dishes and become hot and moist
3. This hot and moist air (steam) is sucked by blower
though air water inlet and directs to outside through
the new duct design
