To avoid risk of electrical shock, personal injury, or death, disconnect electrical power source to unit, unless test
procedures require power to be connected. Discharge capacitor through a resistor before attempting to service.
Ensure all ground wires are connected before certifying unit as repaired and/or operational.
WARNING!

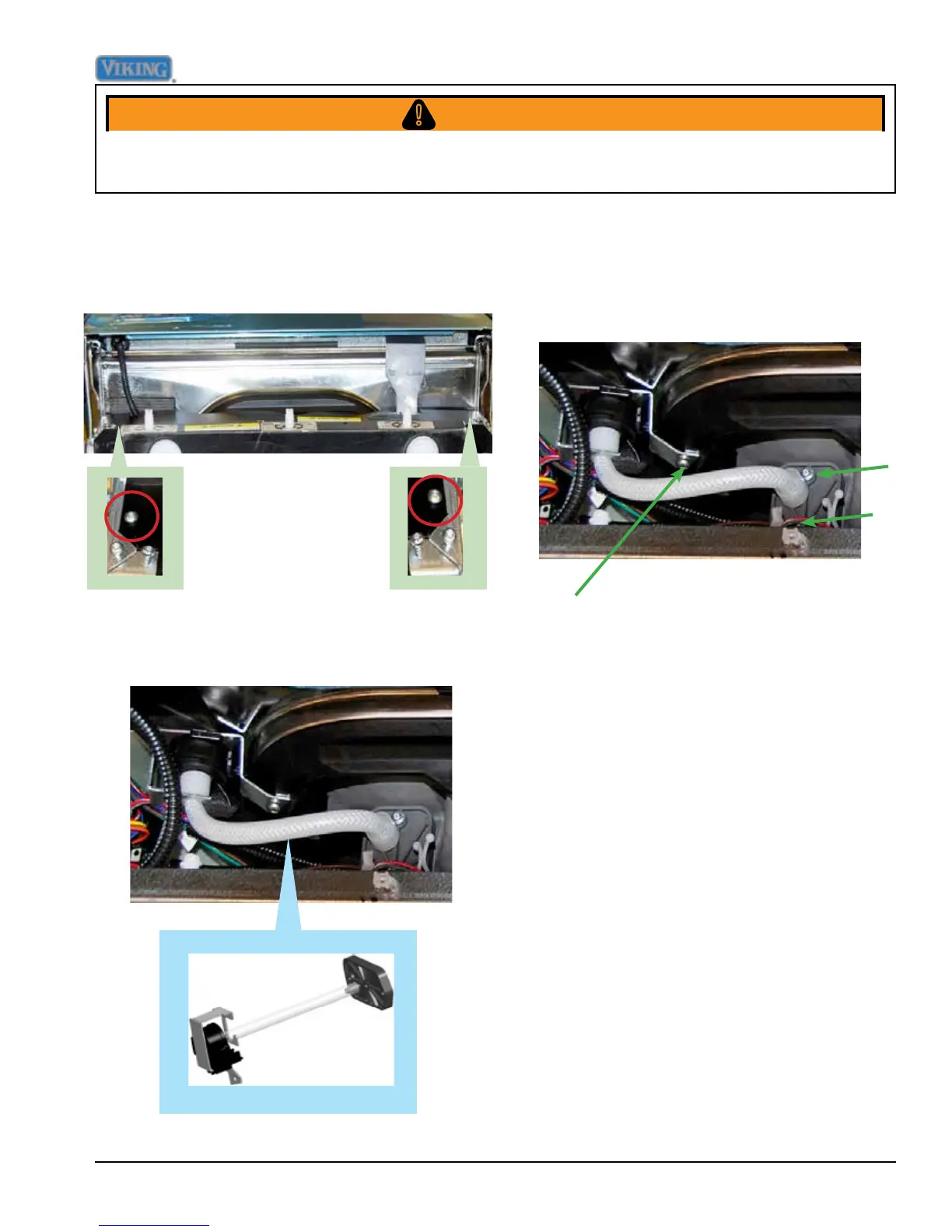

Huba (Pressure) Sensor Removal
Remove front kick plate panel by removing the
two screws shown in photos below.
Disassembly
©2012 Viking Preferred Service 33
You now have access to the Huba Sensor,
shown in photo below.
Remove TORX screw from bracket and the
TORX screws from the sump side, discon-
nect connector and remove Huba Sensor
from unit.
Reverse previous steps to install Huba Sen-
sor.
