Service Diagnostics and Procedures
Door Disassembly (cont.)

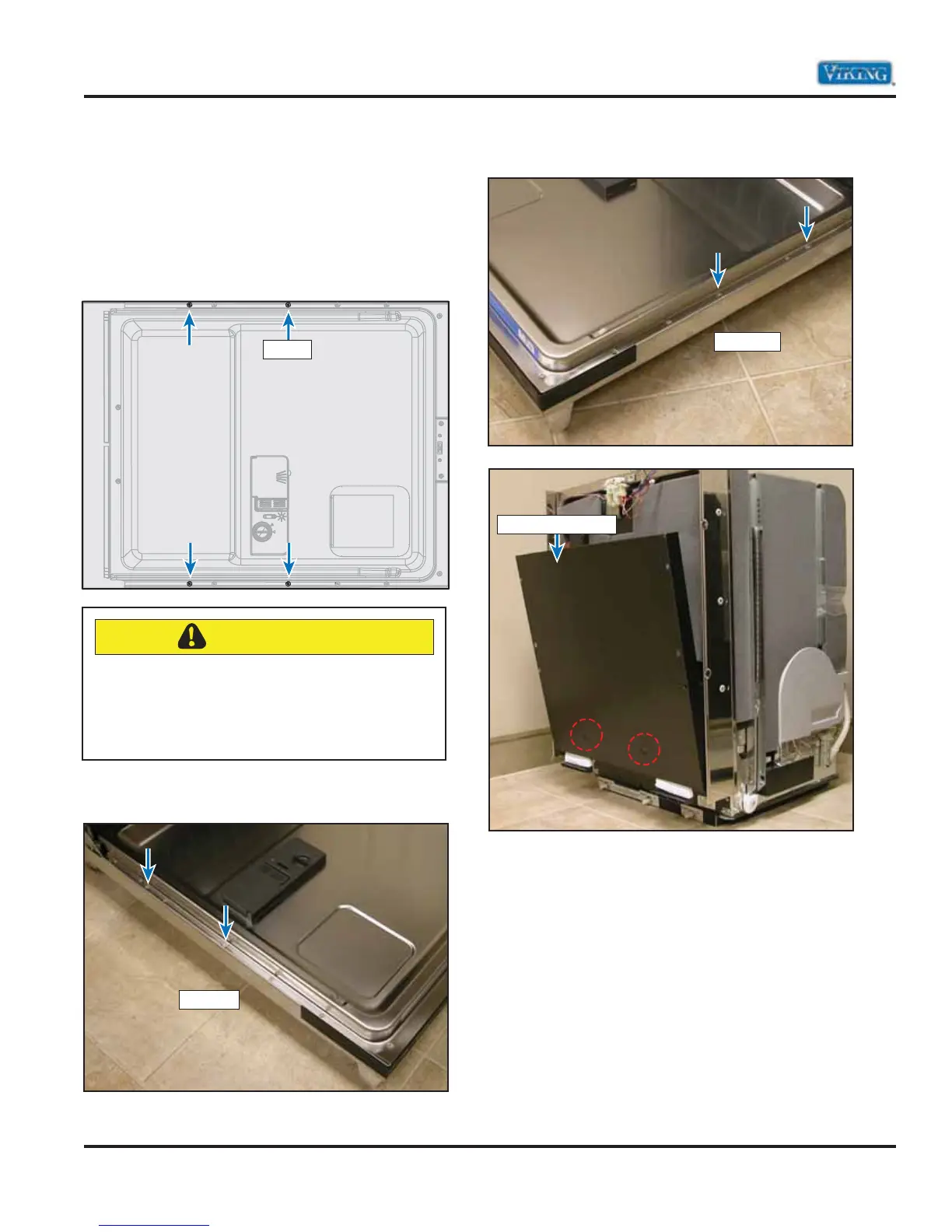

Center Door Panel Removal (450 only)
Now that the outer panel and control panel
have been removed, remove the center door
«>i°Ê"«iÊÌiÊ`ÀÊÌÊ>ÊV«iÌiÊäÂÊ>}iÊÌÊ
expose the securing screws. Using a T15 TORX ®
screwdriver, remove the four screws shown. These
screws are 3/8” (1 cm) long.
The following images show the actual location of
the screws.
Remove the two remaining T20 TOX screws
(circled), then remove the inner door panel.
Screws
CAUTION
Make sure that the center door panel is held in
place while removing the screw so that the
door does not fall and become dented or
scratched. The inner door assembly is sharp
and could result in minor personal injury.
Left Side
Right Side
Center Door Panel
