Service Diagnostics and Procedures
Door Disassembly (cont.)
Door Spring and Cable Assembly

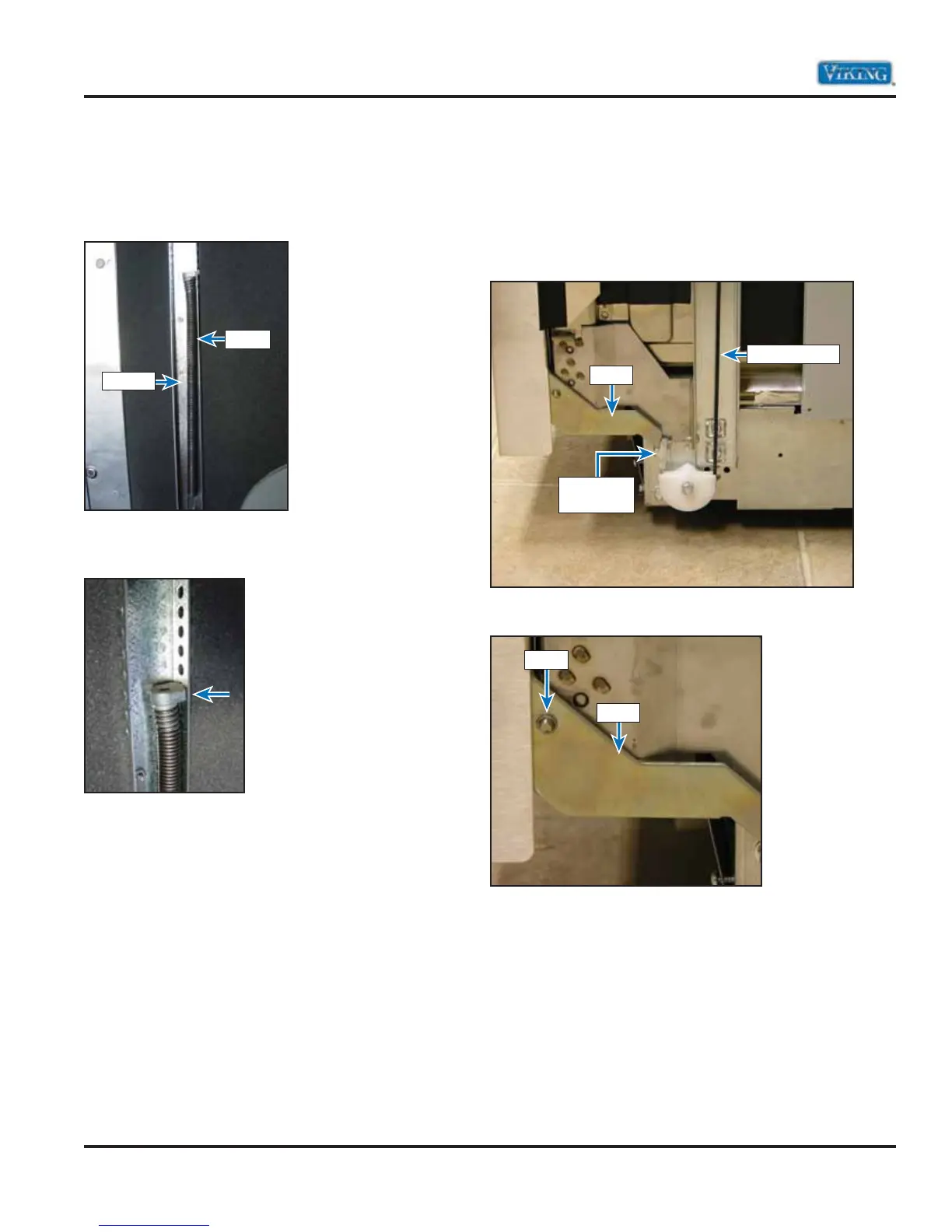

The image below shows the spring and the channel
it rides in. The connection is secured in mounting
holes in the channel frame.
The image below shows the spring in its default
location (sixth hole from the top).
Door Hinge Disassembly
To access door hinge, slide unit out of the
installation. Next remove the outer door panel (see
Outer Door Removal section, page 25).
Disconnect tension cable from hinge.
Remove C-Clip securing hinge.
Note: Remove C-Clip slowly (clip has spring and
can dislodge).
Spring
Channel
Hinge
Hinge
Connection
Tension Cable
Hinge
C-Clip
