Wiring and Schematics

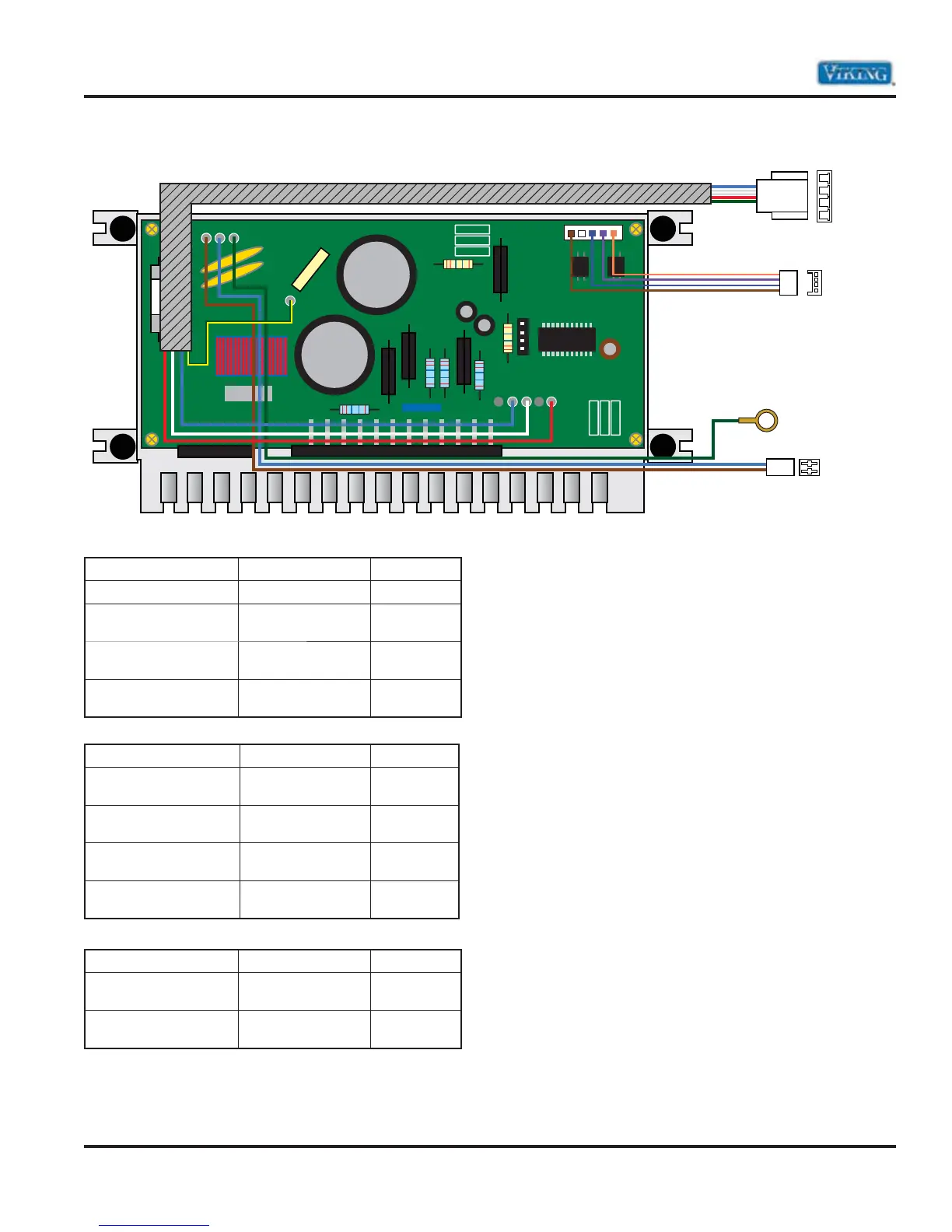

Motor Controller Board Wiring Connections
To Wash Motor Plug Description Wire Color
To circulation motor Chassis Ground Blue
To circulation motor 0-160-volts AC
to motor
White
To circulation motor 0-160-volts AC
to motor
Red
To circulation motor 0-160-volts AC
to motor
Green
P2 to Control Board Description Wire Color
From main control
P2-4
Serial transmit to
main control
Orange
From main control
P2-3
Ground to
main control
Purple
From main control
P2-2
Serial receive to
motor control
Blue
From main control
P2-1
5-volts DC to
motor control
Brown
P5 to Control Board Description Wire Color
From main control
P5-1
Neutral from
main control
Blue
From main control
P5-2
120-volts from
main control
Brown
To P2–Control Board
To Wash Motor
To P5–Control Board
