Viking VDB325 - Power on Light

© 2011 Viking Preferred Service
35
Diagnostics
Door Disassembly (cont.)
Power ON Light

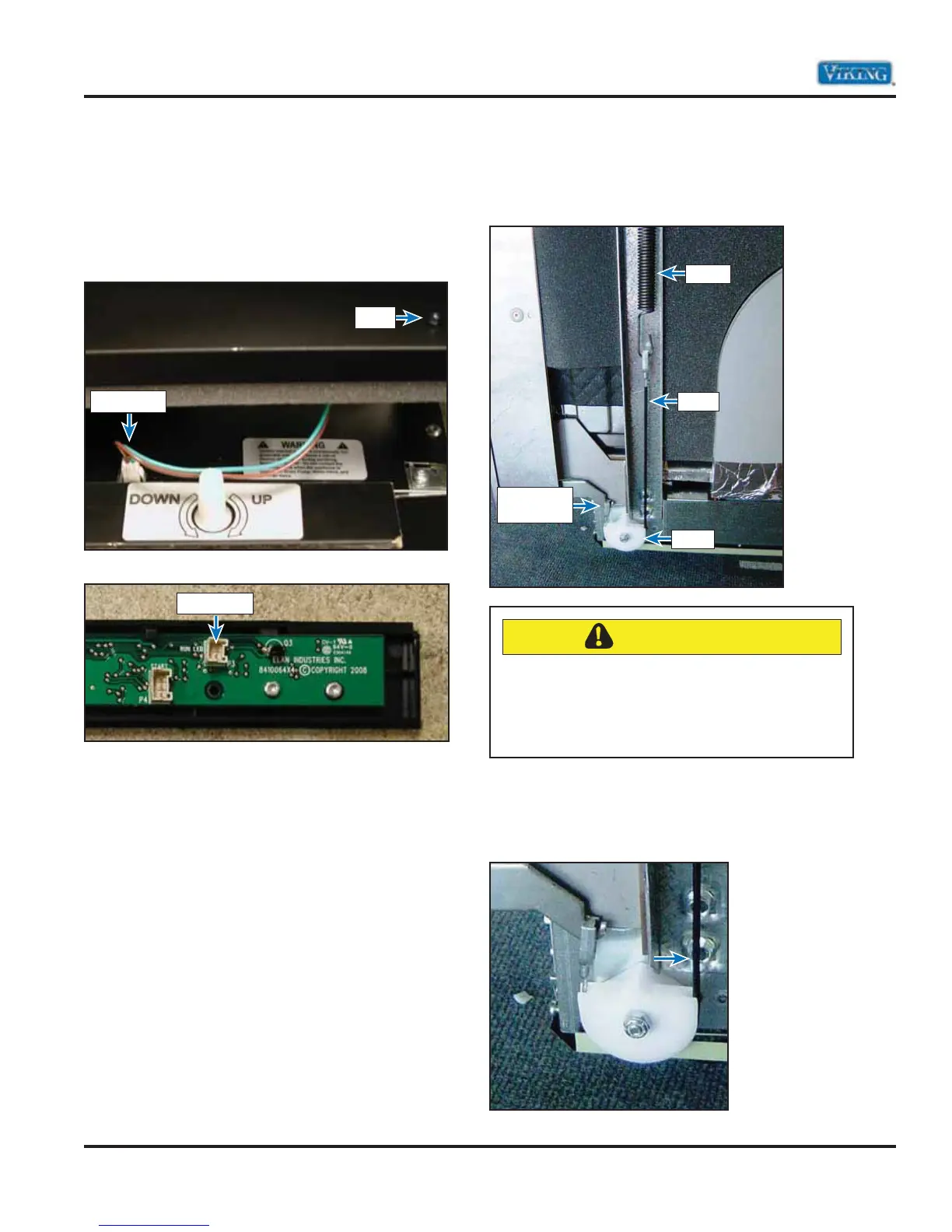

The image below shows the connection of the blue
colored power ON light to the toe kick via a 2-wire
connector. Whenever the dishwasher is turned on,
the LED will shine a bluish. Make sure wires are
properly tucked behind panel after reassembly!
Door Spring and Cable Assembly
The image below shows the right side door hinge
cable, spring, and pulley. The left side is the same.
Below is a close-up view of the cable wrapped
around the pulley. As the door opens or closes, the
cable will ride along the roller creating a smooth
movement in the door operation.
Connection
Light
Connection
User Interface Board
CAUTION
Make sure that when removing or adjusting
the door spring tension that you are wearing
protective gloves and eye wear. Injury can occur
should the spring or cable come loose or slip
during assembly.
Spring
Cable
Pulley
Hinge
Connection
