Disassembly
32 ©2013 Viking Preferred Service
To avoid risk of electrical shock, personal injury, or death, disconnect electrical power source to unit, unless test
procedures require power to be connected. Discharge capacitor through a resistor before attempting to service.
Ensure all ground wires are connected before certifying unit as repaired and/or operational.

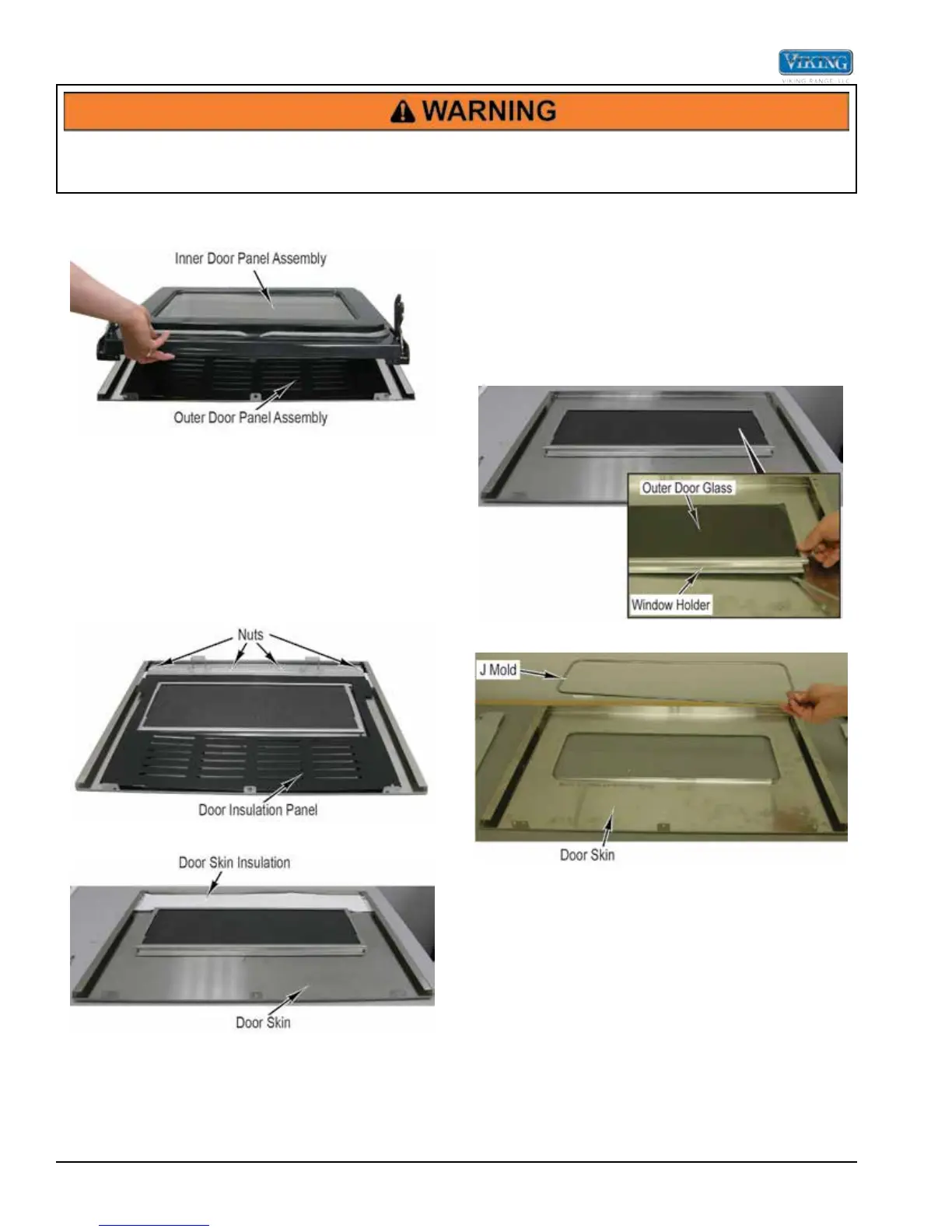

4. Lift the inner door panel assembly from the outer
door panel assembly.
5. Reverse procedure for installation.
Outer Door Glass Removal
1. Remove door handle (see Door Handle Removal).
2. Remove outer door panel assembly (see Outer Door
Panel Assembly Removal).
3. Remove four locknuts and door insulation bracket
from door insulation panel.
4. Remove door insulation panel by sliding toward the
bottom of the door skin.
5. Remove door skin insulation from door skin.
6. Remove window holder and outer door glass from
door skin.
Note: The window holder is secured with double-sided
tape. Use care when removing from door skin.
7. Remove outer door glass from window holder.
Note: The outer door glass is secured with double-
sided tape. Use care when removing from
window holder.
8. Remove J mold from door skin.
9. Reverse procedure for installation.
